About the product

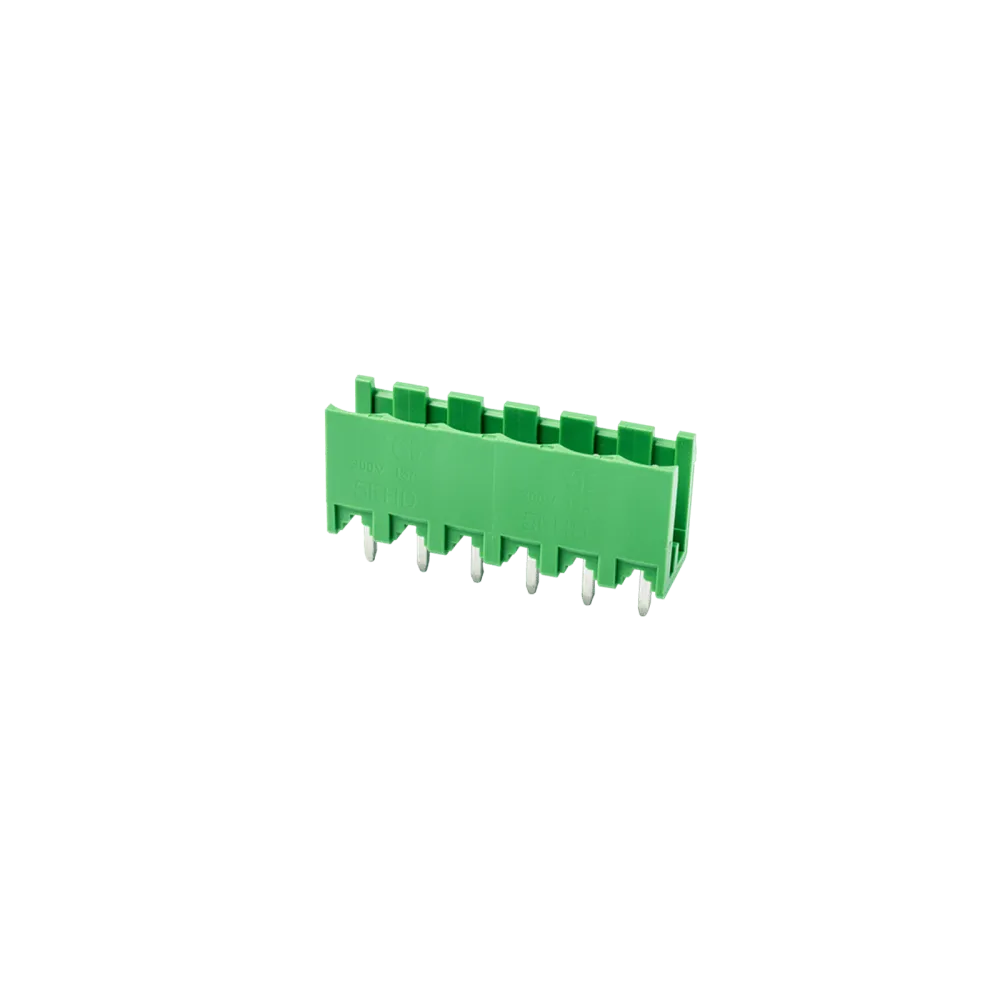

PCB Connector Socket 5EHDV-xxP from DINKLE
Dinkle PCB connectors are designed for wide range in industrial fields and meet with safety approvals such as UL1059 and IEC/EN61984. The connection methods of the plugs including push-in design (PID) and screw type.
- PCB Connector Socket 2-24 poles
- Pitch 5.0 mm
- Green
Further, unpublished products and versions from DINKLE on request.
Technical data
Description: PCB Connector – Socket, Wave soldering, Pitch: 5.0 mm, 300 V, 15 A
Category: PCB Connector – Socket
Pitch: 5.0 mm
Colour: green
Locking type: without
Soldering type: Wave soldering
Length (mm): 5.00*P
Width (mm): 8.47
Height (mm): 12
Pin demensions (Thickness x Width, mm): 1.0 x 1.0
PCB hole diameter (mm): 1.6~1.7
No of Poles: 02P~24 P
Level: Single level
Errors and Technical changes reserved
Product specifications
| Manufacturer | DINKLE |
| Certificates | CE, UR, VDE |
| Nominal voltage (V) | 300 V |
| Nominal current | 15 A |
