About the product

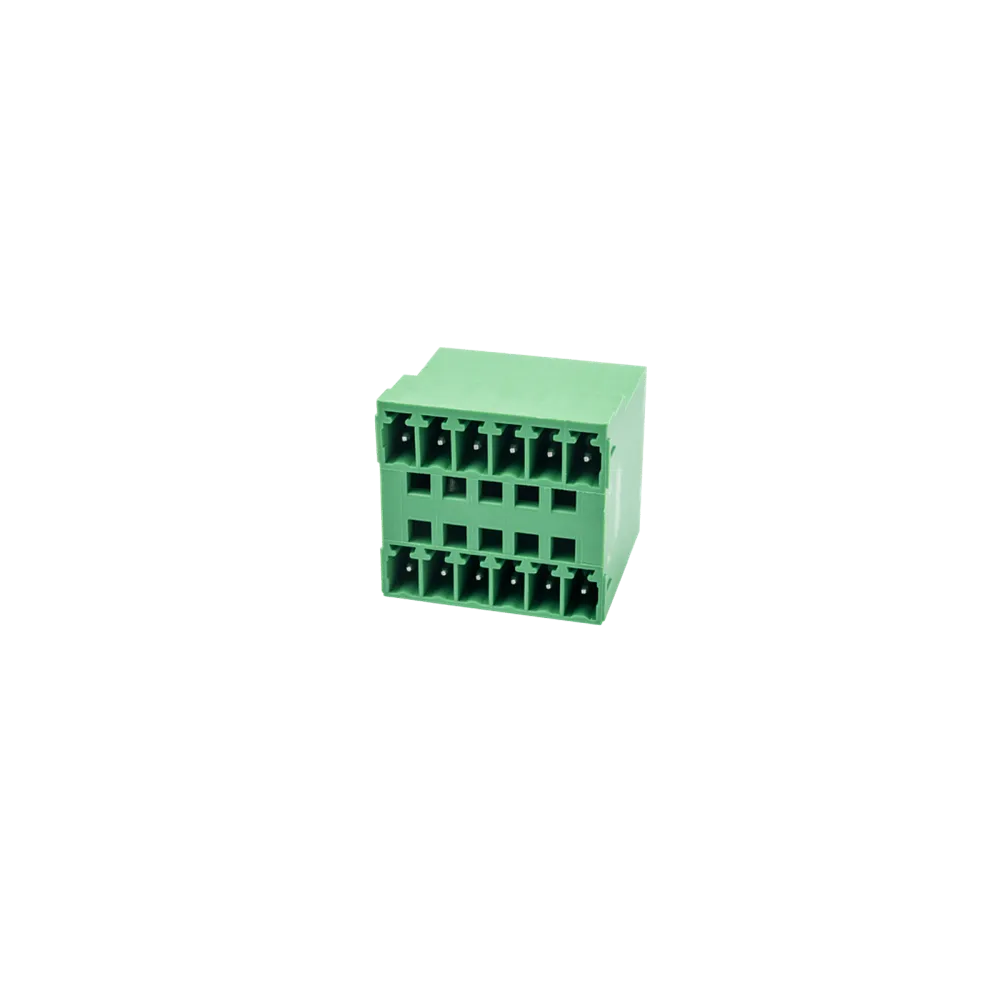

PCB Connector-Socket ECHB350R-xxP from DINKLE
Dinkle PCB connectors are designed for wide range in industrial fields and meet with safety approvals such as UL1059 and IEC/EN61984. The connection methods of the plugs including push-in design (PID) and screw type.
- PCB Terminal Block / Connector socket 4-44 poles
- Pitch 3.50mm
- Wave soldering
- Green
- Double Level
Further, unpublished products and versions from DINKLE on request.
Technical data
Description: PCB Terminal Block – Socket, Wave soldering, Pitch: 3.50 mm, 300 V, 8 A
Category: PCB Connector Socket
Pitch: 3.50 mm
Colour: green
Soldering method: Wave soldering
Locking type: without

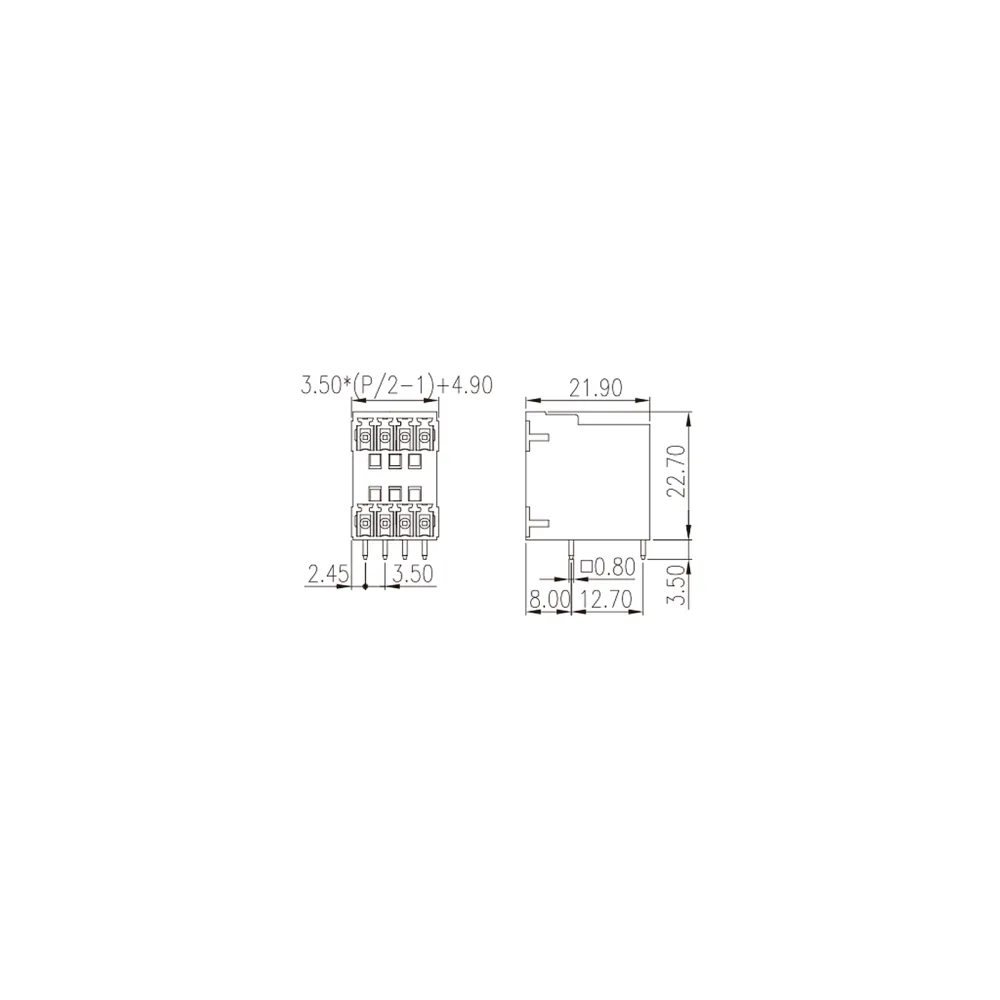

Length (mm): 3.50*(P/2-1)+4.9
Width (mm): 21.9
Height (mm): 22.7
Pin-Dimension (Thickness x Width, mm): 0.8 x 0.8

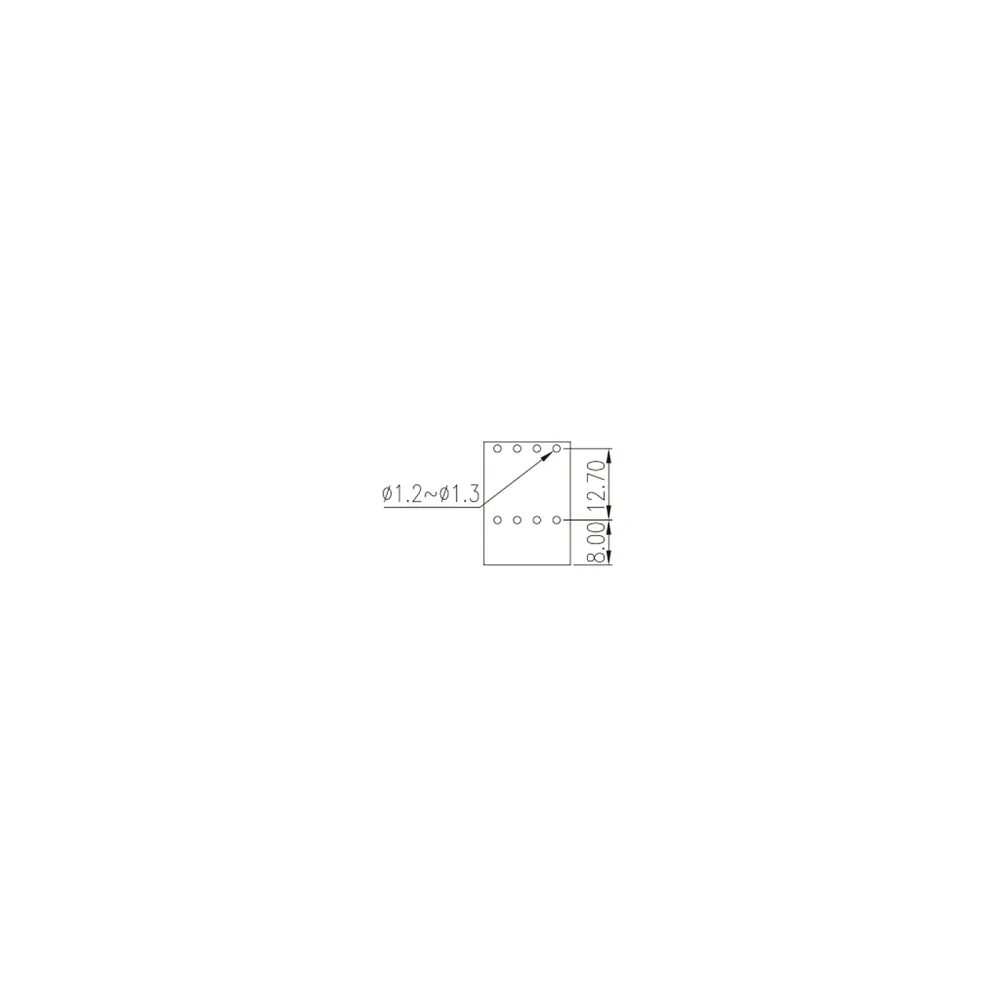

PCB hole diameter (mm): 1.2~1.3
No of Poles: 04P~44 P
Level: Double level
Errors and Technical changes reserved
Product specifications
| Manufacturer | DINKLE |
| Certificates | CE, UR, VDE |
| Nominal voltage (V) | 300 V |
| Nominal current | 8 mA |
