About the product

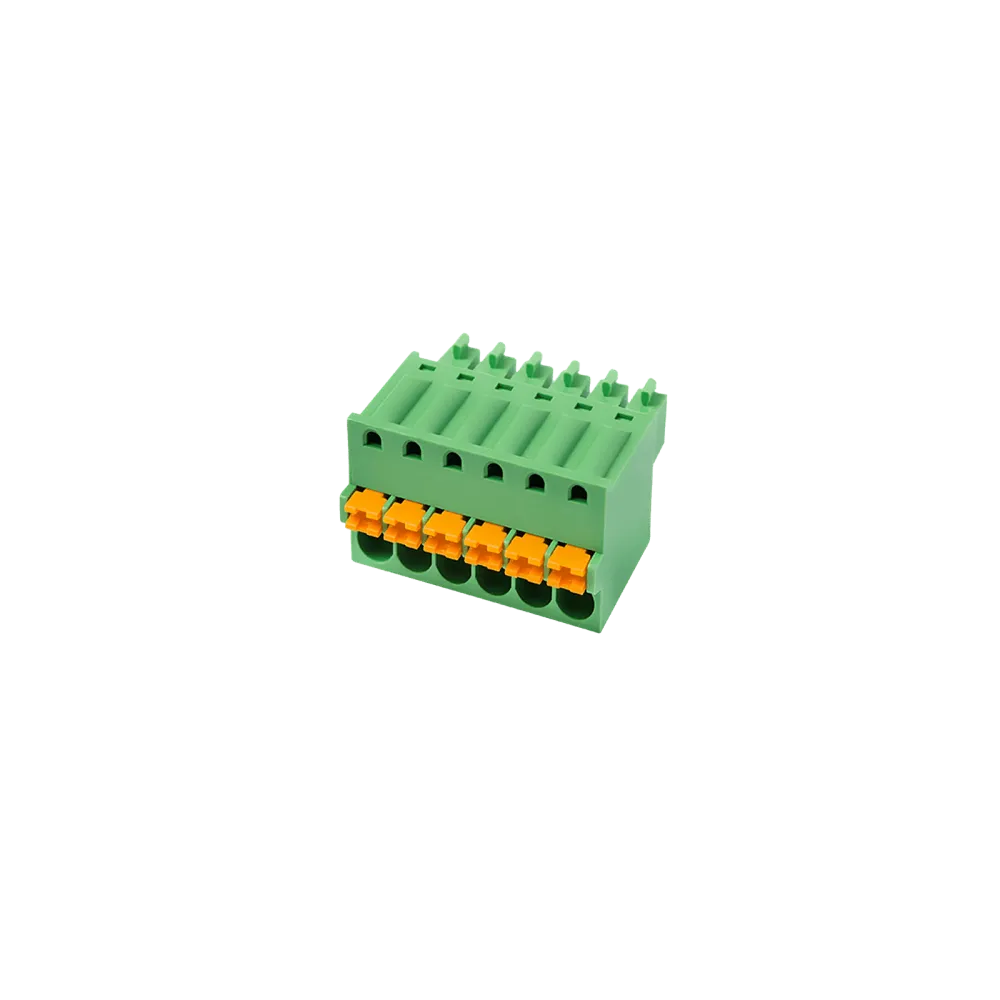

PCB Connector Plug ESC350V-xxP from DINKLE
Dinkle PCB connectors are designed for wide range in industrial fields and meet with safety approvals such as UL1059 and IEC/EN61984. The connection methods of the plugs including push-in design (PID) and screw type.
- PCB Connector 2-24 poles
- Pitch 3.50 mm
- Colour green
Further, unpublished products and versions from DINKLE on request.
Technical data
Description: PCB Connector – Plug, Push in Design, Pitch: 3.50 mm, 300 V, 8 A
Category: PCB Connector – Plug
Pitch: 3.50 mm
Colour: green
Connection: Push in Design
Locking type: without

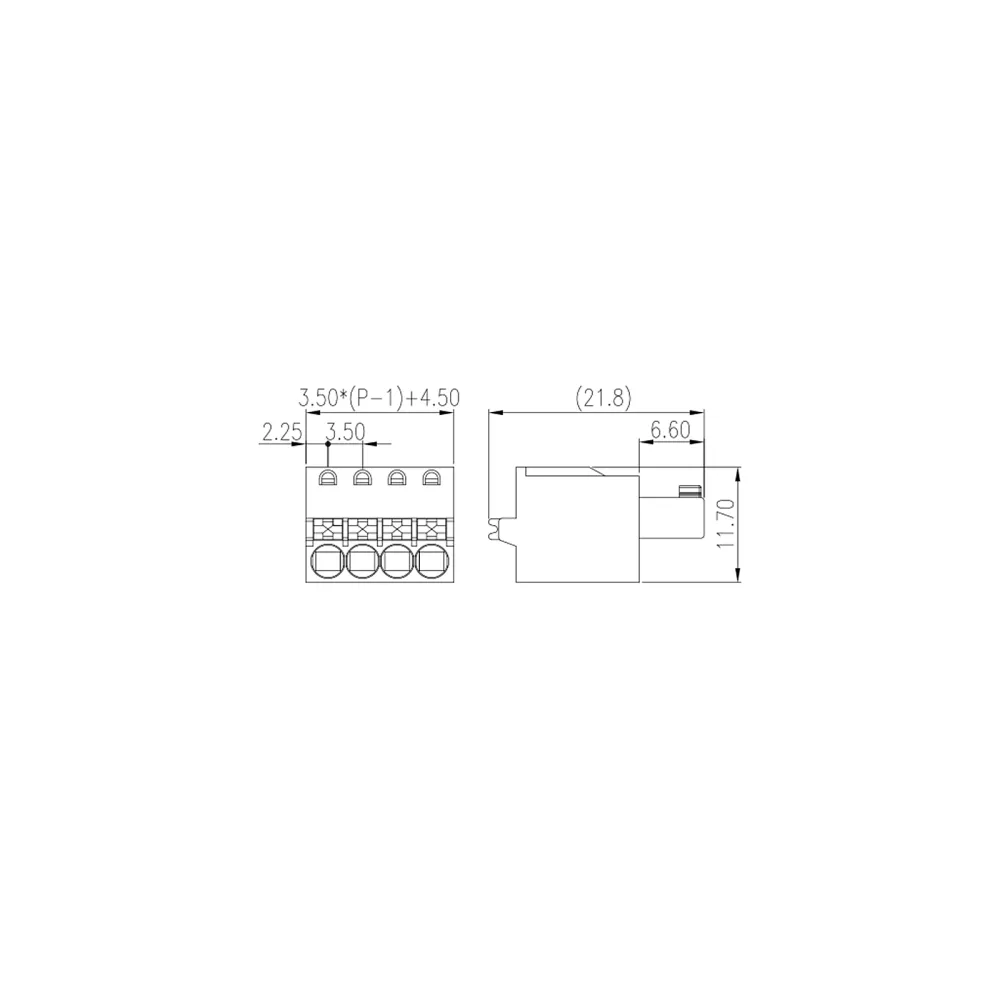

Length (mm): 3.50*(P-1)+4.50
Width (mm): 21.8
Height (mm): 11.7
No of poles: 02P~24 P
Level: Single level
Errors and Technical changes reserved
Product specifications
Manufacturer | DINKLE |
Certificates | CE, UR, VDE |
Nominal voltage (V) | 300 V |
Nominal current | 8 mA |
