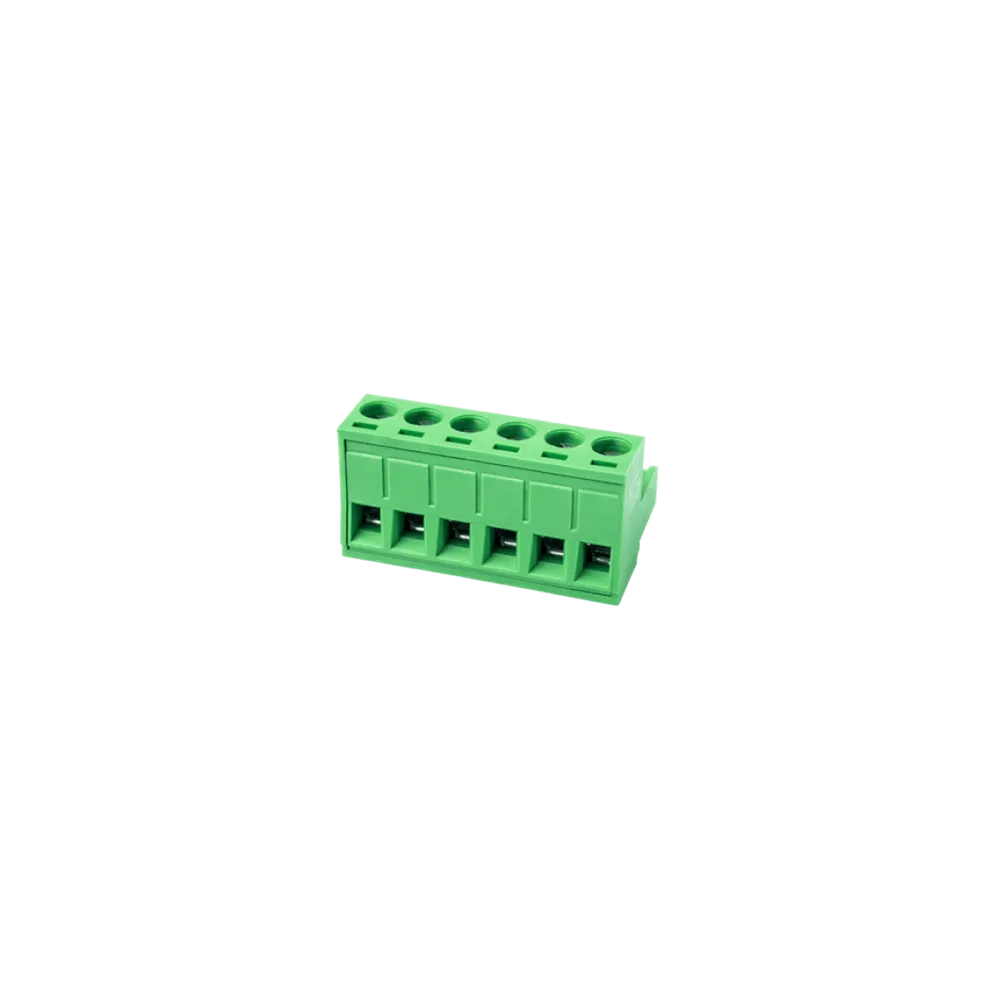

PCB Connector-Plug 2ESDVH-xxP from DINKLE
Dinkle PCB connectors are designed for wide range in industrial fields and meet with safety approvals such as UL1059 and IEC/EN61984. The connection methods of the plugs including push-in design (PID) and screw type.
- PCB Connector 2-24 poles
- Screw Connection
- Pitch 5.08 mm
- Colour green
Further, unpublished products and versions from DINKLE on request.
Technical data
Description: PCB Connector, Screw Connection, Pitch : 5.08 mm, M2.5, 300 V, 20 A
Category: PCB Connector – Plug
Pitch: 5.08 mm
Colour: green
Connection method: Screw Connection
Locking type: without

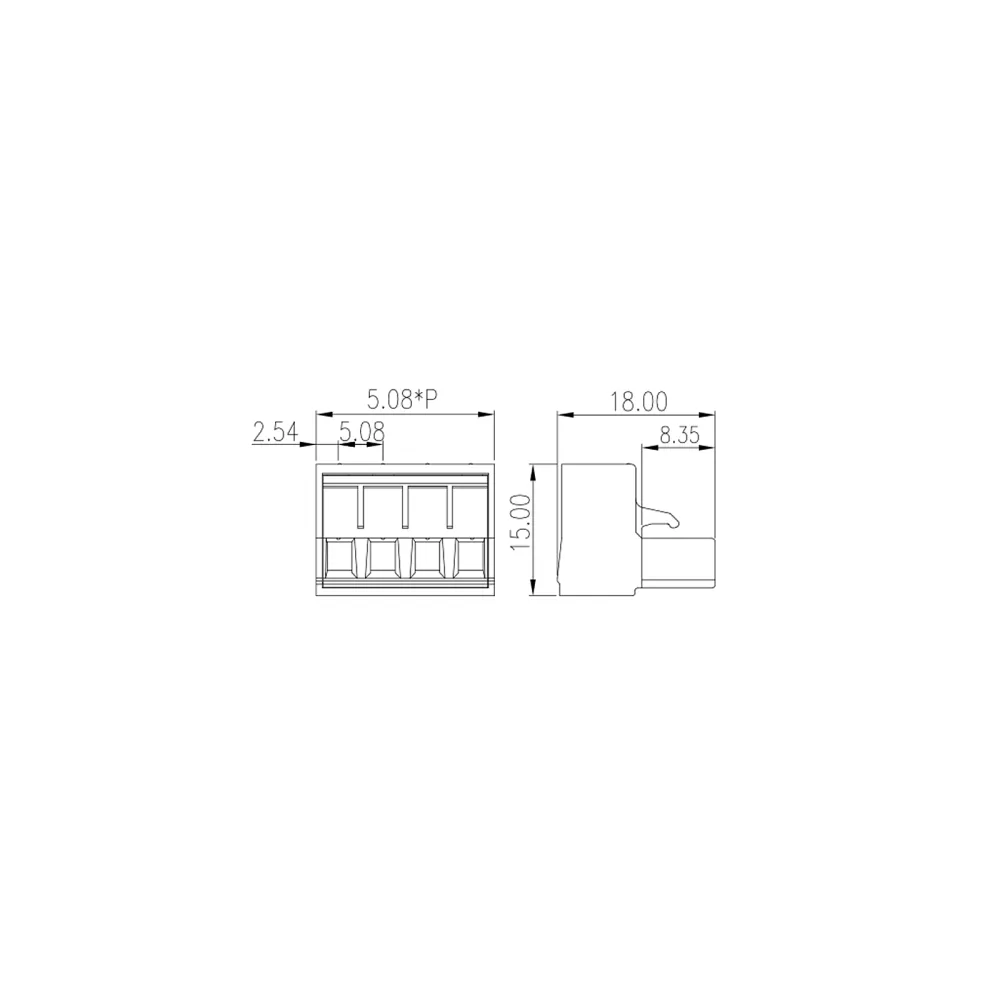

Length (mm): 5.08*P
Width (mm): 18
Height (mm): 15
No of poles: 02P~24 P
Level: Single level
Errors and Technical changes reserved
Product specifications
| Manufacturer | DINKLE |
| Certificates | CE, UR, VDE |
| Nominal voltage (V) | 300 V |
| Nominal current | 20 A |
