About the product

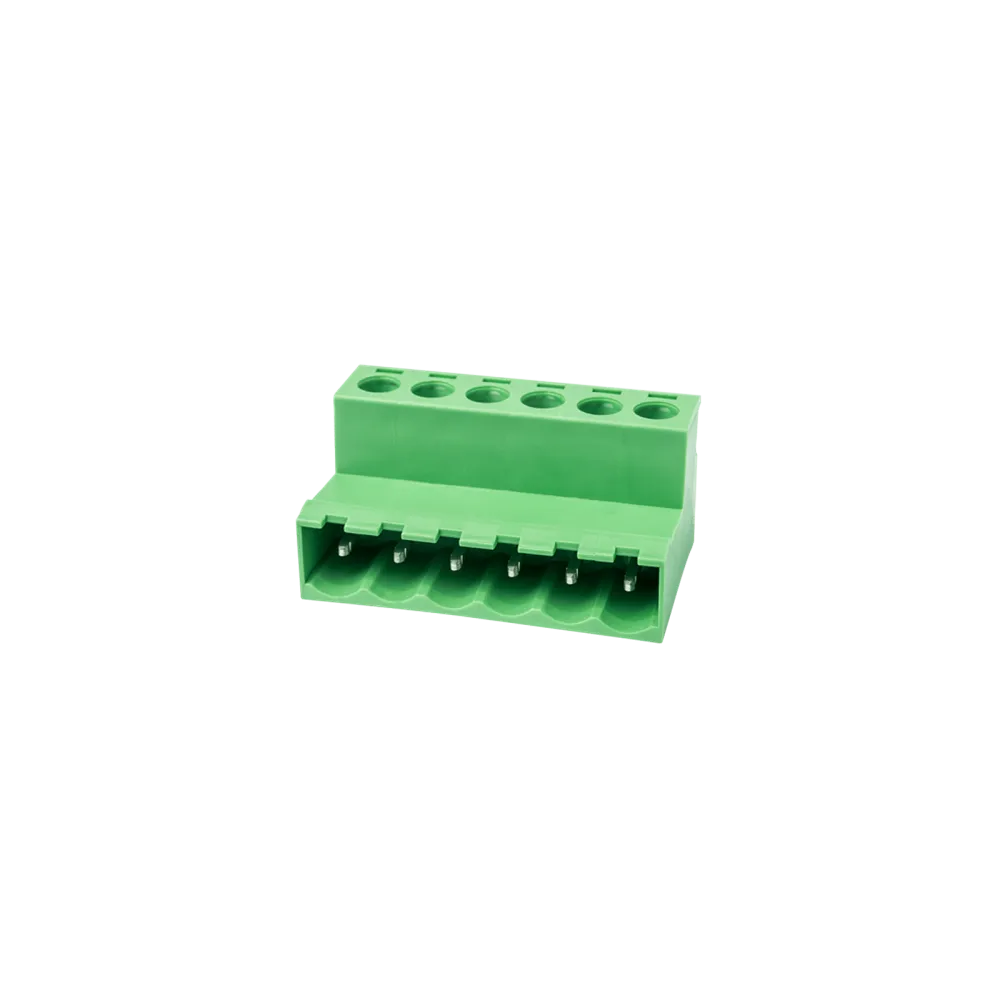

PCB Connector Socket 2ESH-xxP from DINKLE
Dinkle PCB connectors are designed for wide range in industrial fields and meet with safety approvals such as UL1059 and IEC/EN61984. The connection methods of the plugs including push-in design (PID) and screw type.
- PCB Connector Socket 2-12 poles
- Pitch 5.08mm
- Screw Connection
- Green
Further, unpublished products and versions from DINKLE on request.
Technical data
Description: PCB Connector – Socket, Screw Connection, Pitch: 5.08 mm, 300 V, 12 A
Category: PCB Connector – Socket
Pitch: 5.08 mm
Colour: green
Connection method: Screw Connection
Locking type: without

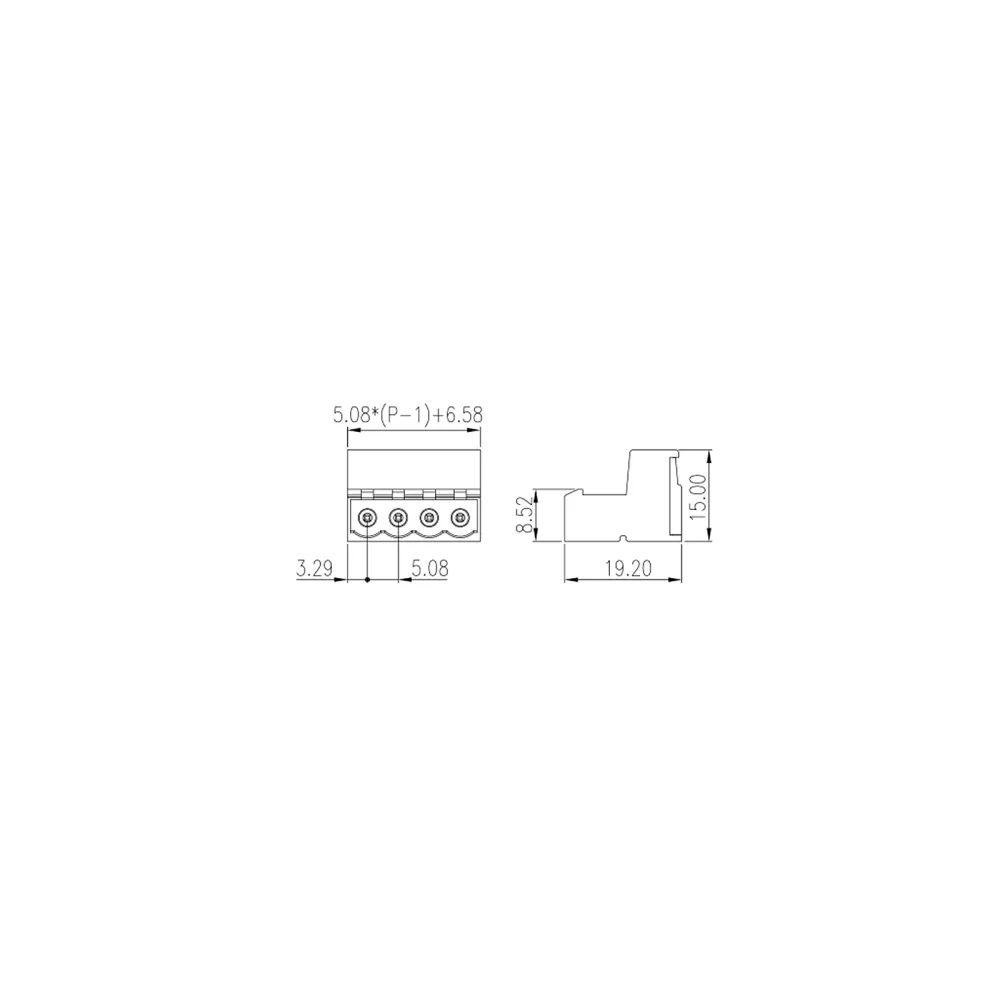

Length (mm): 5.08*(P-1)+6.58
Width (mm): 19.2
Height (mm): 15
No of Poles: 02P~12 P
Level: Single level
Errors and Technical changes reserved
Product specifications
| Manufacturer | DINKLE |
| Certificates | CE, UR |
| Nominal voltage (V) | 300 V |
| Nominal current | 12 mA |
