About the product

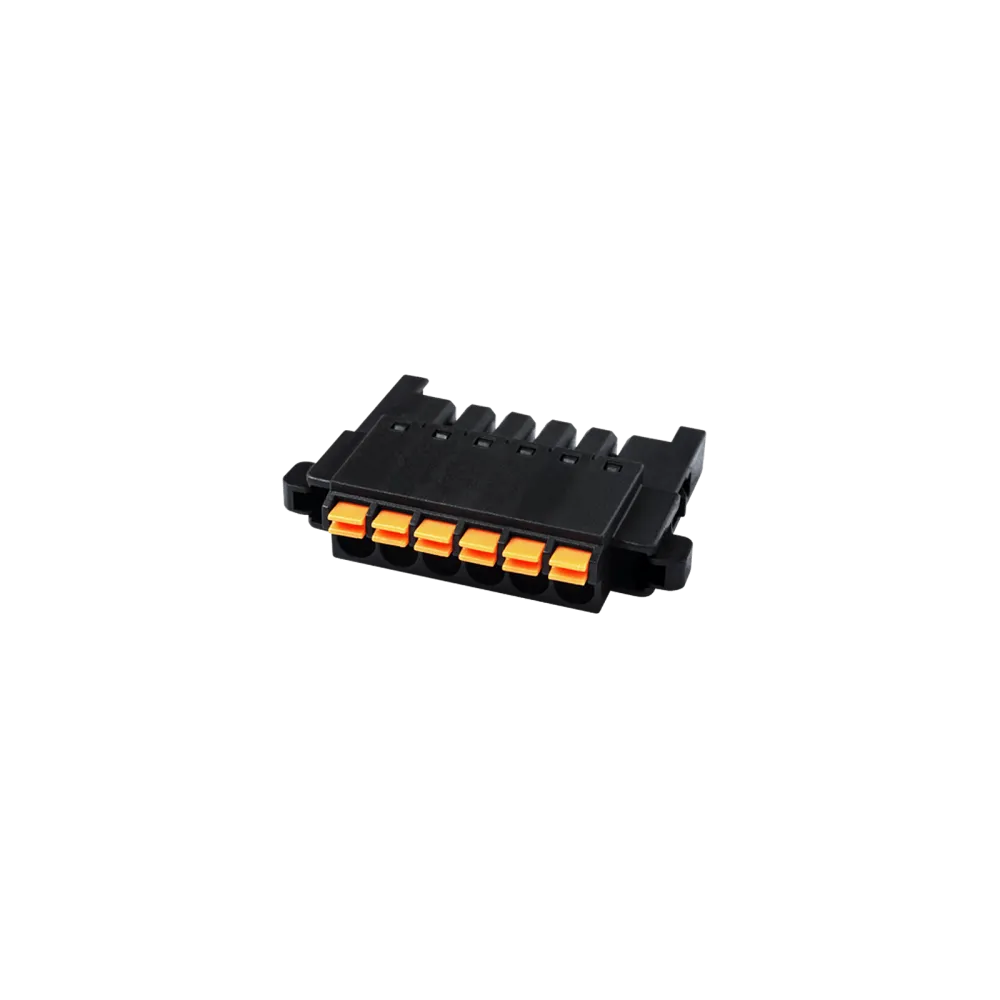

PCB Connector-Plug 0225-07xx from DINKLE
Dinkle PCB connectors are designed for wide range in industrial fields and meet with safety approvals such as UL1059 and IEC/EN61984. The connection methods of the plugs including push-in design (PID) and screw type.
- PCB Connector-Plug 2-24 poles
- Push-in Design for easy and flexible conductor connection
- Pitch 3.50mm
- Colour black
Further, unpublished products and versions from DINKLE on request.
Technical data
Description: PCB Connector – Plug, Push-in Design, Pitch: 3.50mm, 300V, 8A
Category: PCB Connector – Plug (male)
Pitch: 3.50mm
Colour: black
Connection: Push in Design
Locking type: With lock flange

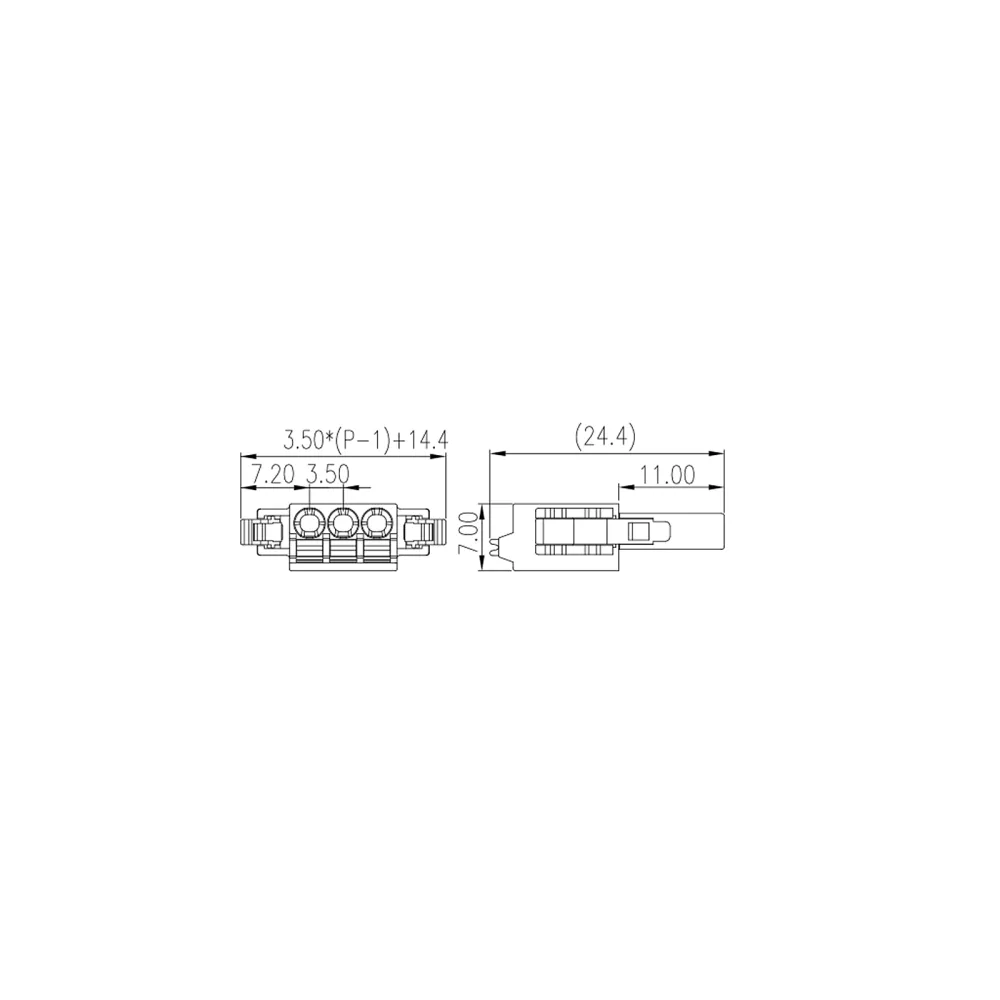

Length (mm): 3.50*(P-1)+14.4
Width (mm): 24.4
Height (mm): 7.0
No of Poles: 02P~24P
Level: Single level
Errors and Technical changes reserved
Product specifications
| Manufacturer | DINKLE |
| Certificates | CE, UR |
| Nominal voltage (V) | 250 V |
| Nominal current | 8 mA |
