About the product

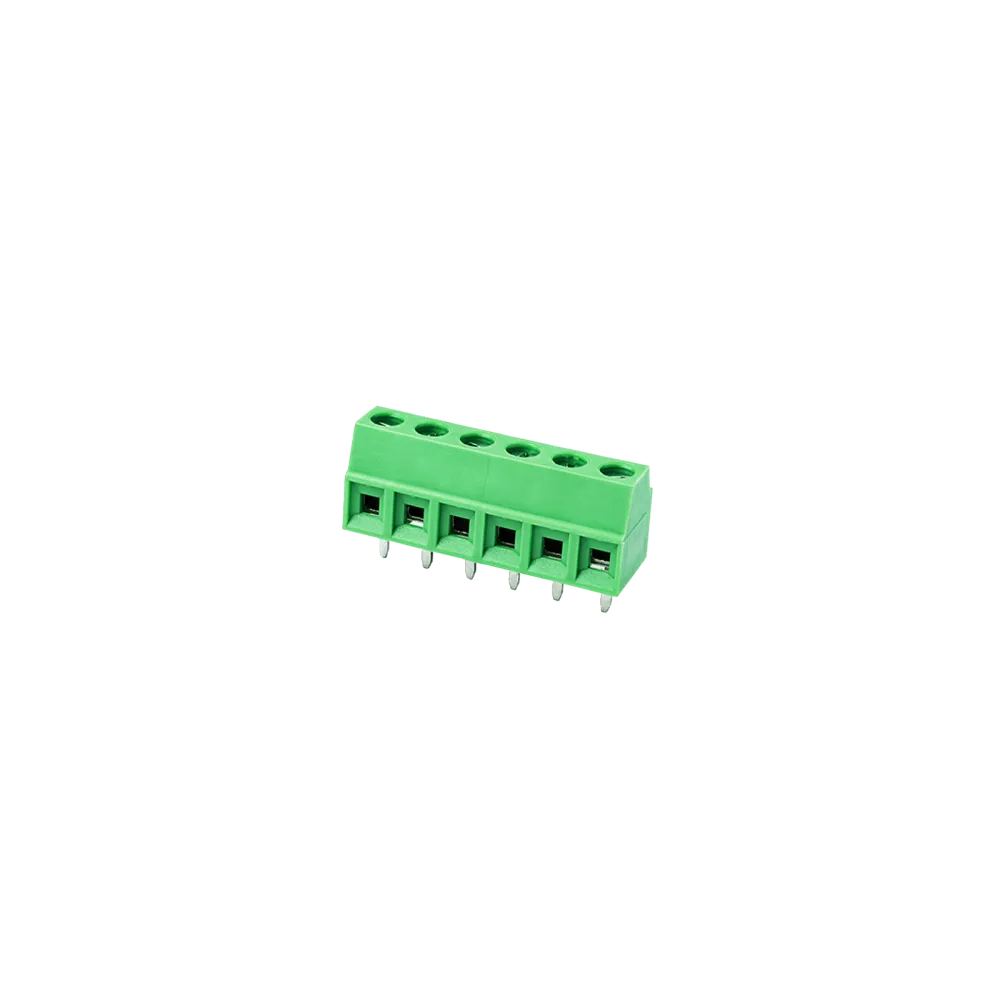

PCB Terminal Block EK350V-xxP from DINKLE
Dinkle PCB connectors are designed for wide range in industrial fields and meet with safety approvals such as UL1059 and IEC/EN61984. The connection methods of the plugs including push-in design (PID) and screw type.
- PCB Terminal Block 2-24 poles
- Pitch 3.50mm
- Screw Connection
- Green
Further, unpublished products and versions from DINKLE on request.
Technical data
Description: PCB Terminal Block, Screw Connection, Pitch 3.50 mm, 300 V, 10 A
Category: PCB Terminal Block
Pitch: 3.50 mm
Colour: green
Connection Method: Screw Connection
Locking type: without

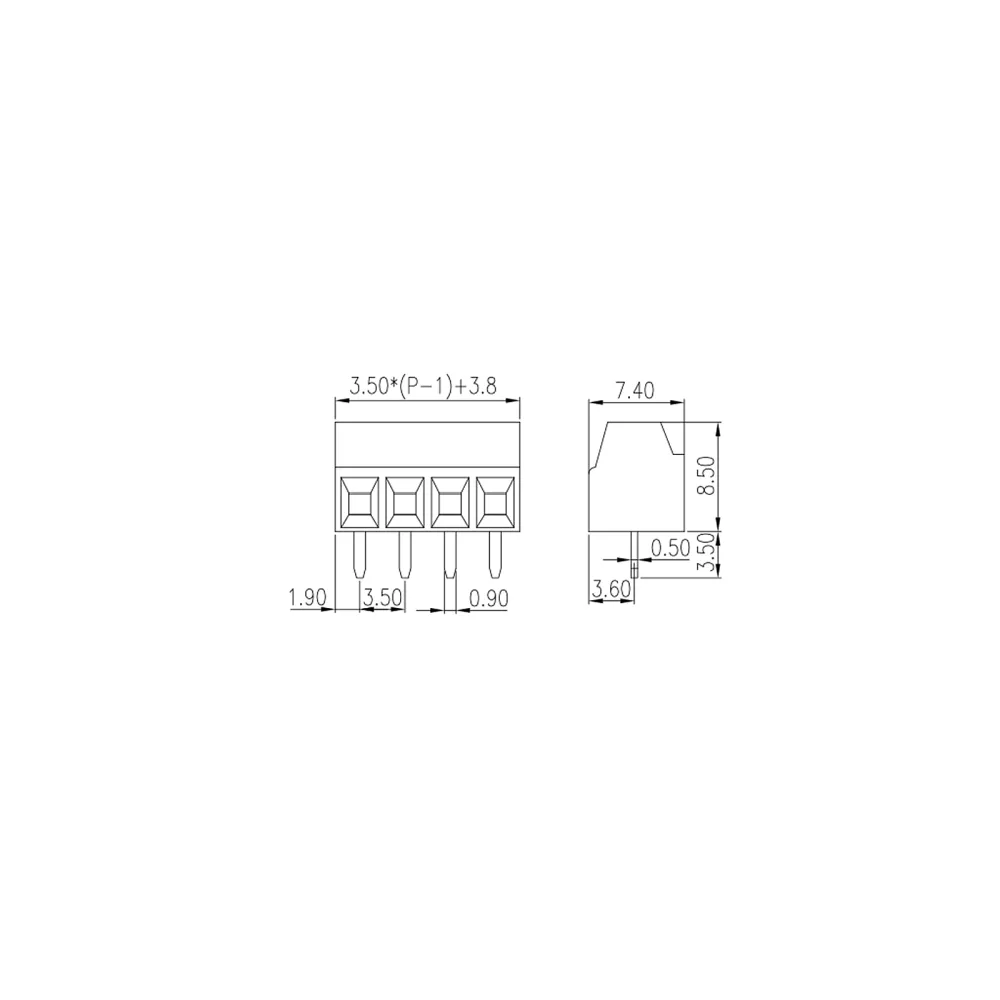

Length (mm): 3.50*(P-1)+3.8
Width (mm): 7.4
Height (mm): 8.5
Pin-Dimension (Thickness x Width, mm): 0.5 x 0.9
PCB hole diameter (mm): 1.2~1.3
No of Poles: 02P~24 P
Level: Single level
Errors and Technical changes reserved
Product specifications
| Manufacturer | DINKLE |
| Certificates | CE, UR, VDE |
| Nominal voltage (V) | 300 V |
| Nominal current | 10 mA |
