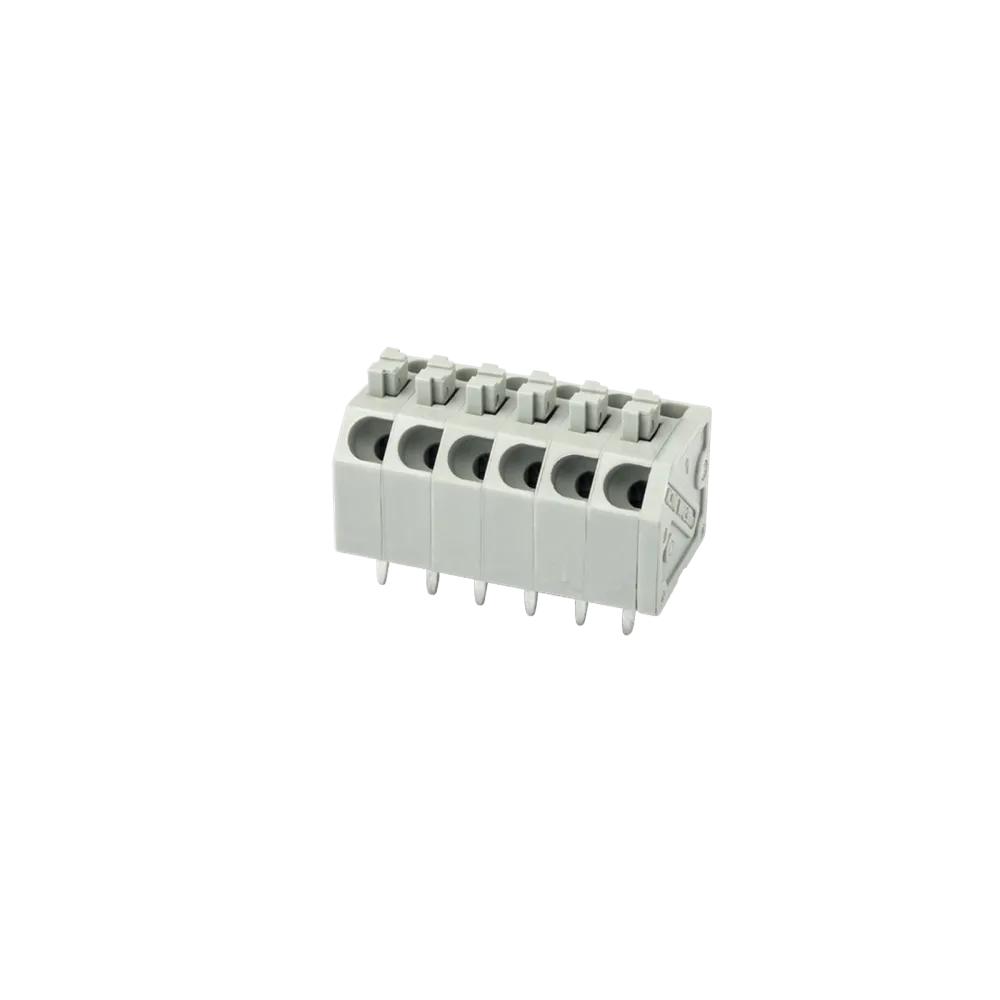

PCB Terminal Block 0137-40xx

PCB Terminal Blocks 0137-40xx from DINKLE
Dinkle PCB connectors are designed for wide range in industrial fields and meet with safety approvals such as UL1059 and IEC/EN61984. The connection methods of the plugs including push-in design (PID) and screw type.

• PCB Terminal Block 2-24 poles
• Push-in Design
• Pitch 3.50 mm
• Colour grey

Further, unpublished products and versions from DINKLE on request.

Technical data

Description: PCB Terminal Blocks, , Push-in Design
Category: PCB Terminal Blocks, Push-in Design, Wave soldering, Pitch:3.50mm, 300V, 5A
Pitch (mm): 3.50
Colour: grey
Connection: Push in Design
Locking type: without
SOldering type: Wave soldering
Length (mm): 3.50*(P-1)+1.50
Width (mm): 11
Height (mm): 11.95
Pin-Dimension (Thickness x Width, mm): 0.5 x 0.8
PCB hole diameter (mm): 1.2
No of poles: 02P~24P
Level: Single level

Errors and Technical changes reserved
