PCB Connector Plug EC350V-xxP

Delivery at your place between May 20 and Jun 24 2025

Add to cart

About the product

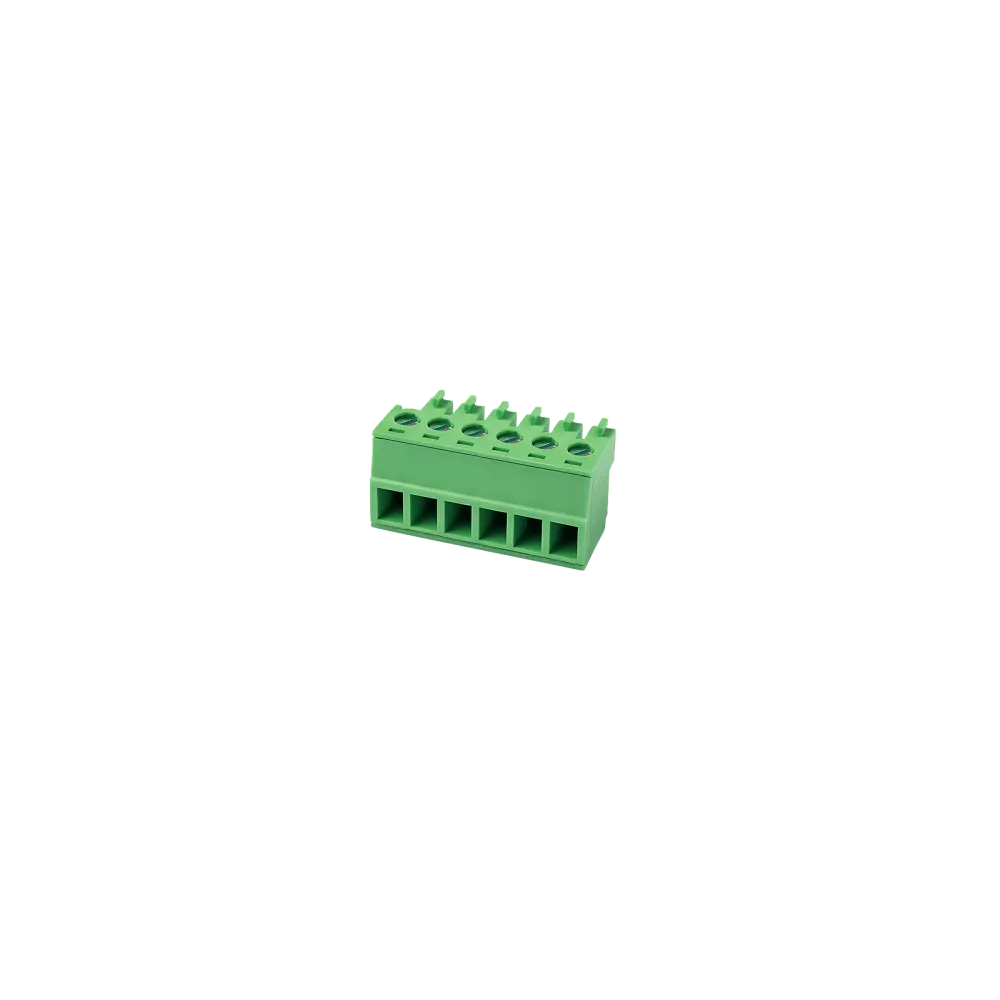

PCB Connector Plug EC350V-xxP from DINKLE
Dinkle PCB connectors are designed for wide range in industrial fields and meet with safety approvals such as UL1059 and IEC/EN61984. The connection methods of the plugs including push-in design (PID) and screw type.

PCB Connector 2-24 poles
Pitch 3.50mm
Colour green

Further, unpublished products and versions from DINKLE on request.

Technical data

Description: PCB Connector – Plug, Screw Connection, Pitch 3.50 mm, M2, 300V, 8A
Category: PCB Connector – Plug
Pitch: 3.50mm
Colour: green
Connection: Screw connection
Locking type: without

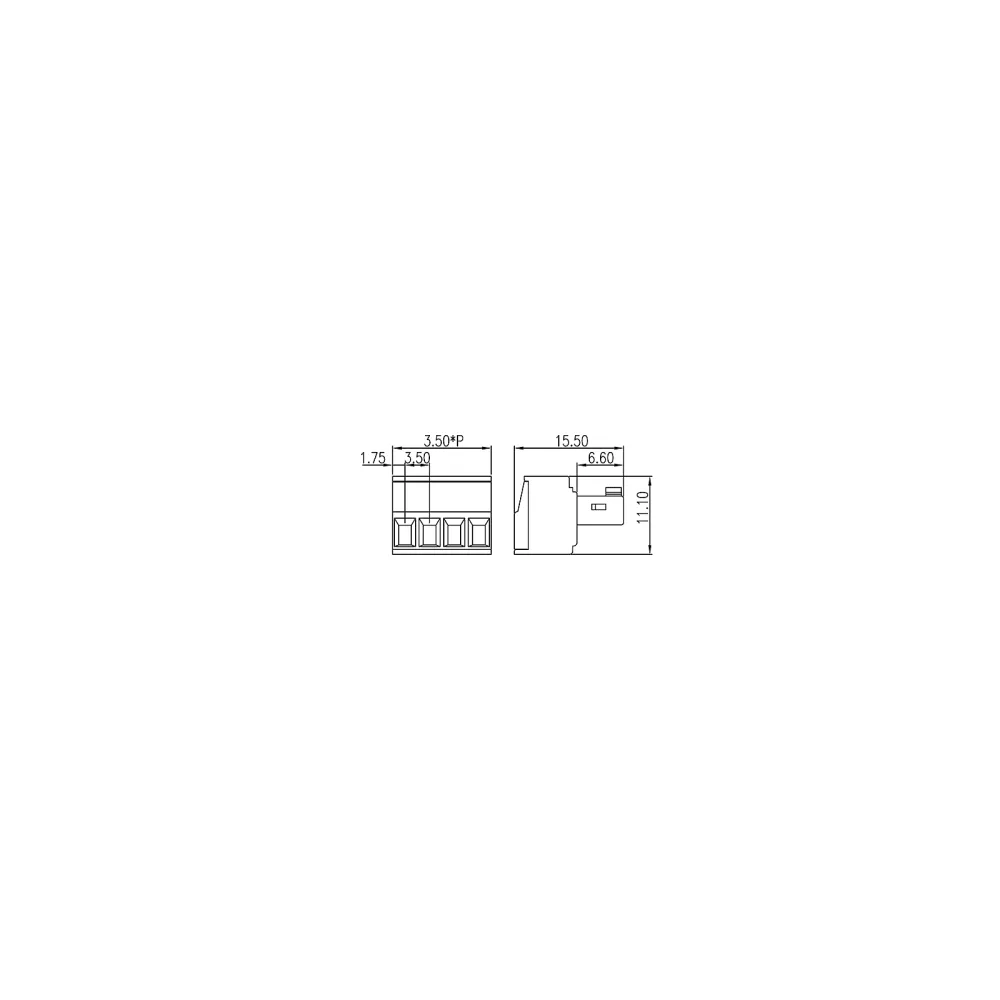

Length (mm): 3.50*P
Width (mm): 15.5
Height (mm): 11.1
No of poles: 02P~24 P
Level: Single level
