About the product
PCB Terminal Blocks WKA508-xxP from DINKLE
Dinkle PCB connectors are designed for wide range in industrial fields and meet with safety approvals such as UL1059 and IEC/EN61984. The connection methods of the plugs including push-in design (PID) and screw type.
- PCB Terminal Blocks 2-24 poles
- Spring Clamp Connection
- Pitch 5.08mm
- Colour grey
Further, unpublished products and versions from DINKLE on request.
Technical data
Description: PCB Terminal Blocks, Spring Clamp Connection
Category: PCB Terminal Blocks, Spring Clamp Connection, Wave soldering, Pitch: 5.08 mm, 300 V, 15 A
Pitch (mm): 5.08
Colour: grey
Connection: Federdruck (Spring Clamp Connection)
Locking type: without

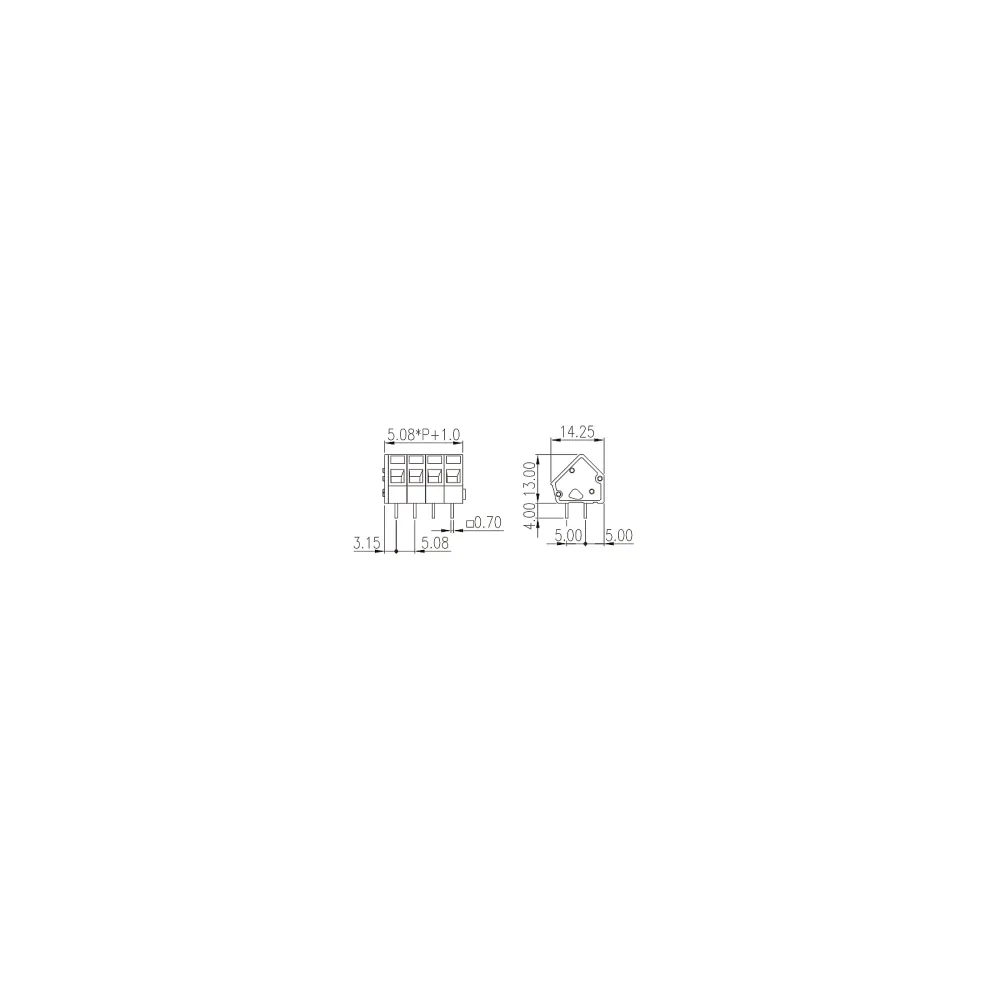

Length (mm): 5.08*(P-1)+7.28
Width (mm): 14.25
Height (mm): 13.0
Pin-DImension (Thickness x Width, mm): 0.7×0.7
PCB hole diameter (mm): 1.1~1.2
No of poles: 02P~24P
Level: Single level
Errors and Technical changes reserved
Product specifications
| Manufacturer | DINKLE |
| Certificates | CE, UR |
| Nominal voltage (V) | 300 V |
| Nominal current | 15 A |
