About the product

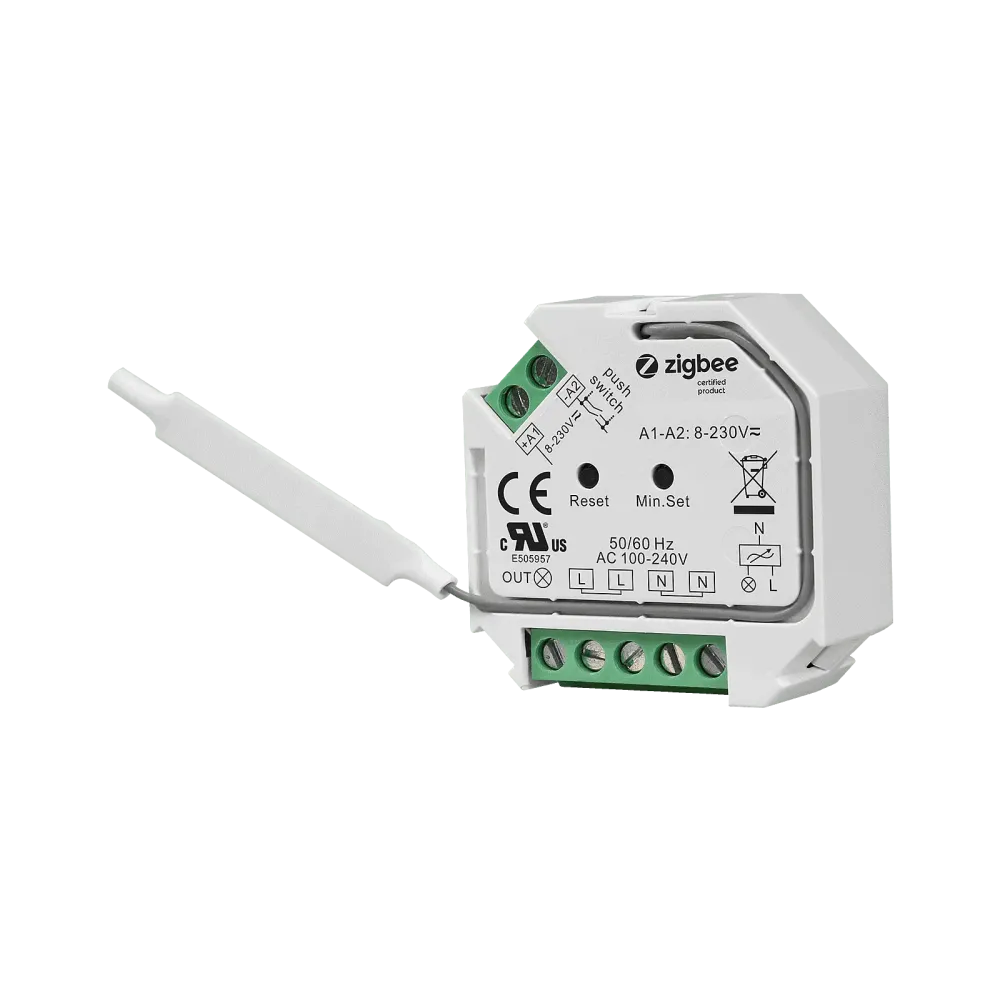

ZigBee AC trailing edge phase control dimmer based on the latest ZigBee 3.0 protocol
Technical data
- ZigBee AC trailing edge phase control dimmer based on the latest ZigBee 3.0 protocol
- 100-240VAC wide input and output voltage
- Supports resistive loads and capacitive loads
- 1 channel output, up to 400W
- Both the version with leading edge and the version with trailing edge are available, the factory setting is the trailing edge.
- ZigBee end device that supports Touchlink commissioning
- Can be paired directly with a compatible ZigBee remote control via Touchlink without a coordinator
- Supports the self-creation of a ZigBee network without a hub and the addition of other devices to the network
- Supports find-and-bind mode for binding a ZigBee remote control
- Supports Zigbee Green Power and can handle a maximum of 20 Zigbee Green Power remote controls
- Compatible with universal ZigBee gateway products
- Can be controlled with universal 8-230V input and single-wire push-button switch
- IP20 Degree of protection
- Plastic housing
- Operating temperature range from -20°C to +40°C
- Dimension 45.5 x 45 x 20.3mm
- 5 year guarantee
Product specifications
| Control | ZigBee 3.0 |
| IP protection | IP20 |
| Length | 45.5 mm |
| Height | 20.3 mm |
| Output current per channel (A) | 45870 |
| Power | 400 W |
| Product series | SR-9101 |
| Connection | Screw terminal |
| Width | 45 mm |
| Channels | 1 |
| Application | Single color |
| Manufacturer's warranty | 5 years |
