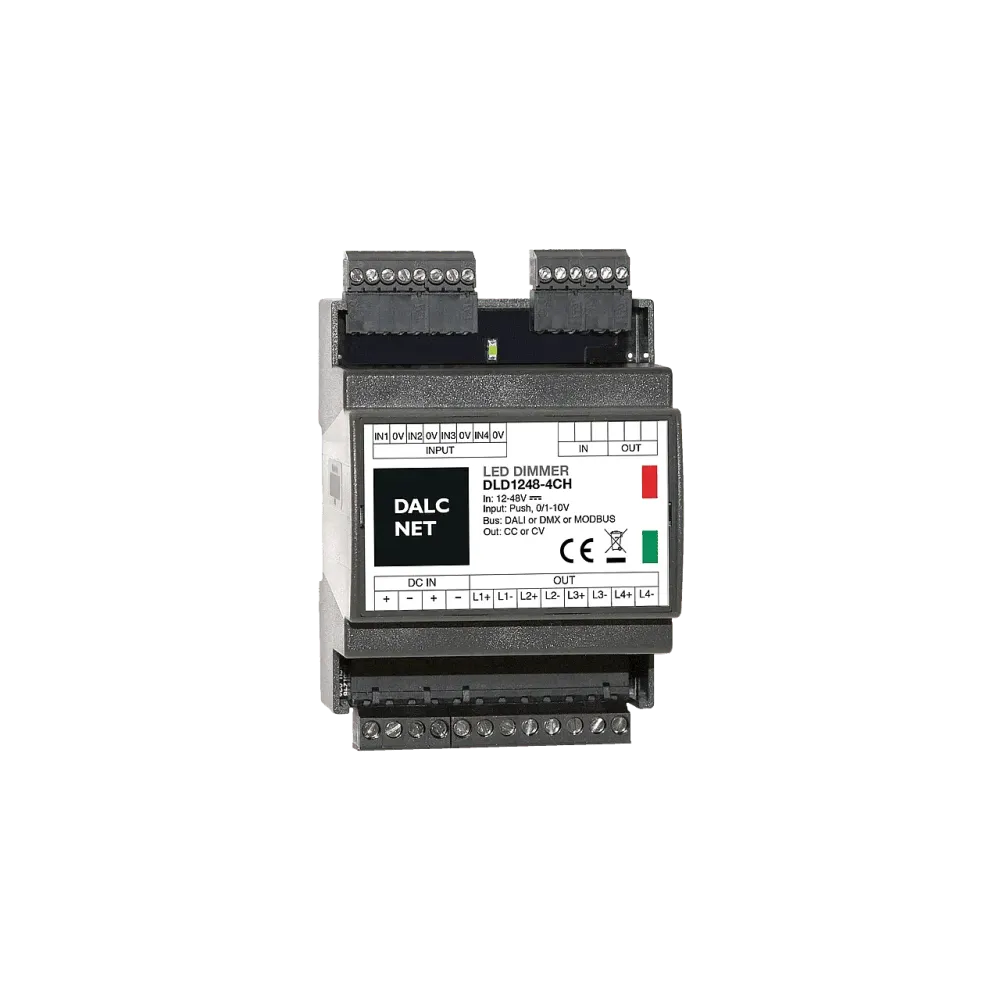

About the product
- Output: 4 channels
- BUS+SEQUENCER+FADER+DIMMER+DRIVER
- Input: DC 12/24/48 Vdc
- Output 4x700mA - 1×2.8A
- BUS command: DMX
- Local command: 4x N.O. buttons (with or without memory), 0-10V, 1-10V and potentiometer 10KOhm
- Control elements: Dimmer, Dim to Warm, Tunable White, RGB, RGBW
- Control outputs and current outputs for R-L-C loads
- Typical efficiency > 95%
- Setting the brightness up to complete switch-off (Dim to Dark)
- Minimum brightness: 0.1% (1% in Push)
- D-PWM modulation
- Setting the D-PWM frequency: 300 / 600 / 1200 Hz
- Adjustable output curve: Linear / Quadratic / Exponential
- Soft start and soft stop
- Smooth dimming control
- Master / slave function (DMX variant)
- Extended temperature range
- 100% function test
- 5 year guarantee
Product specifications
| Connection | Screw terminal |
| Control | Low voltage push, DMX, 0-10V, 1-10V, resistor |
| Input voltage range (VDC) | 12-24 V |
| Application | RGB, RGBW, Single Color, Tunable White |
| Manufacturer's warranty | 5 years |
| IP protection | IP20 |
| Output current per channel (A) | 0.7 |
| Height | 62 mm |
| Width | 92 mm |
| Output voltage range (VDC) | 12-48 V |
| Manufacturer | DalcNet |
| Length | 72 mm |
| Channels | 4 |
| Product series | DLD |
