5 channel RF, TUYA, WIFI LED dimmer, constant voltage 12-24VDC, max. 480W

Delivery at your place between May 20 and Jun 24 2025

Add to cart

About the product

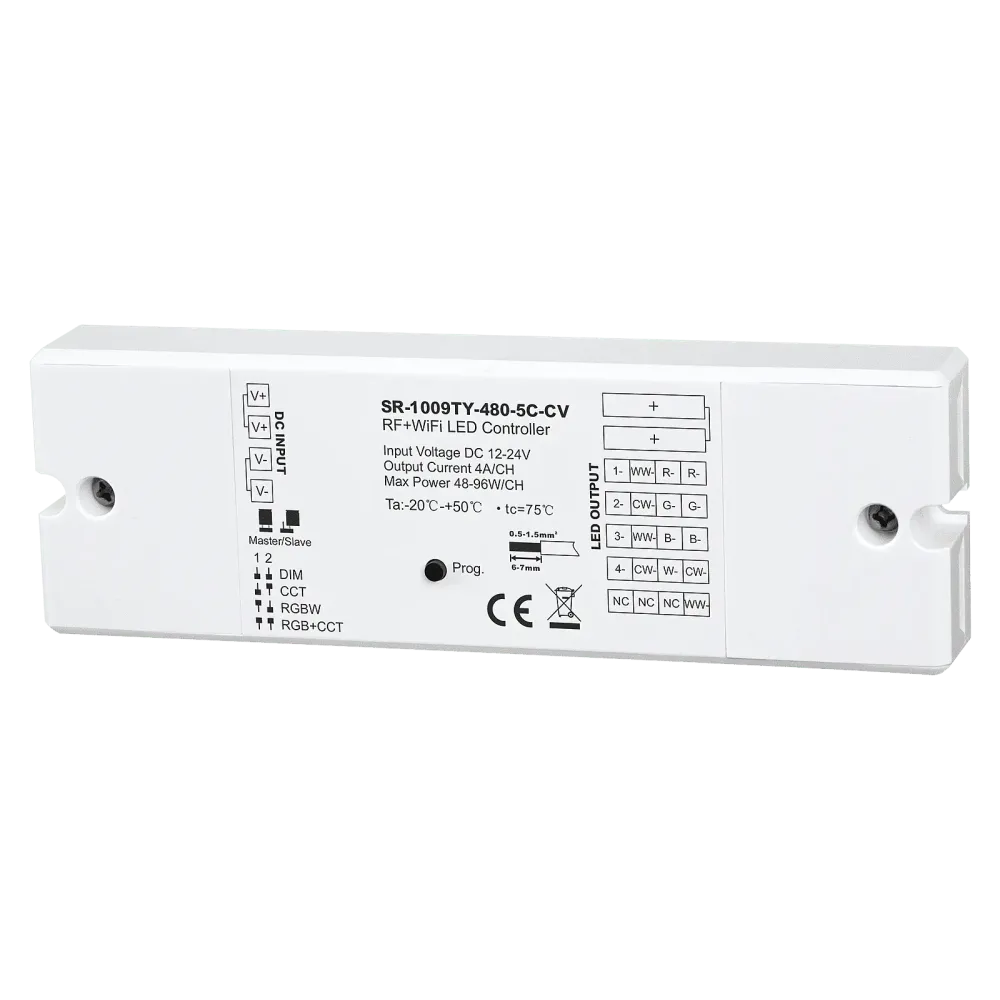

SR-1009TY-480-5C-CV with 5 channel PWM output and TUYA, WIFI and RF wireless interface is ideal for the operation of RGBWW constant voltage LED applications such as LED strips. This dimmer can be controlled with all RF remote controls of the SC-1009 series and also directly with the TUYA app.

Control

RF Wireless (radio), TUYA, WIFI

Application

RGBW, RGB, Tunable White, Single Color

Dimming range

The load-independent dimming range is 0.1% to 100% of the connected load.

Technical data

RF Wireless and WIFI 5 CHANNEL DIMMER
Can be used as RGBWW, RGBW, RGB, TW or single color control unit
Max. Output current: 4A per channel
Max. Output power at 24VDC: 480W
With built-in repeater function for high performance
Compatible with all remote controls in the SC-1009 series
Can be operated directly with the TUYA app
IP20 Degree of protection
Plastic housing
Operating temperature range from -20°C to +50°C
Dimension 145 x 46.5 x 16mm
5 year guarantee

Product specifications

Manufacturer	Sunricher
Application	RGB, RGBW, RGBWW, Single Color, Tunable White
Dimming type	PWM
Manufacturer's warranty	5 years
IP protection	IP20
Height	16 mm
Width	46.5 mm
Output current per channel (A)	4
Control	TUYA, RF Wireless
Product series	SR-1009
Channels	5
Output voltage range (VDC)	12-24 V
Length	145 mm
Power	480 W
Connection	Screw terminal
Input voltage range (VDC)	10.5-15 V
