About the product

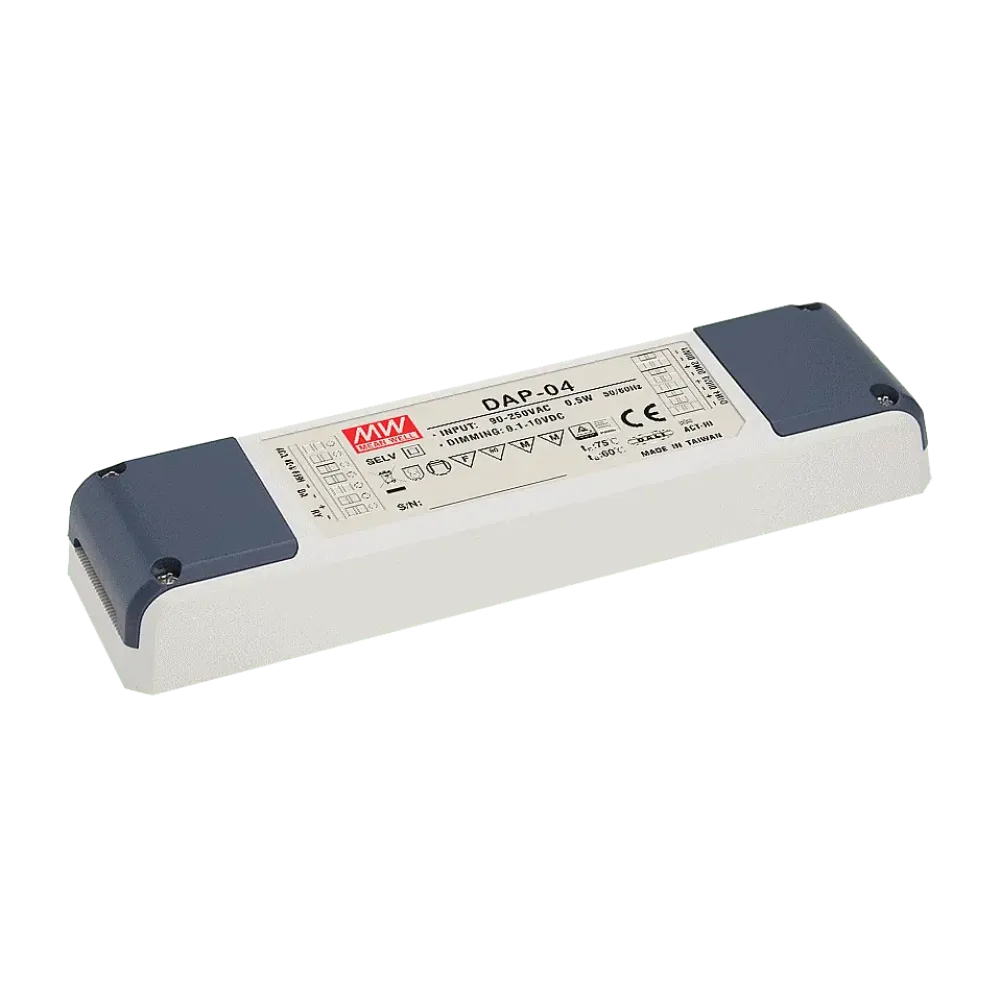

With the DALI to PWM interface DAP-04-S01, Mean Well LED drivers with 3in1 interface can be controlled via DALI or AC push-buttons.
For example, the LED drivers of the ELG series can be controlled with this interface via a push-button:
Technical data
- Input 90-305Vac
- Dimensions 165x46x23mm
- Functions: 4-channel DALI to PWM converter, push DIM function, relay for switching the LED power supply unit on and off.
- for controlling the MEAN WELL 3 in 1 Dimming LED power supply units
- Manufacturer MEAN WELL
Product specifications
| Manufacturer | MEAN WELL |
| Connection | Screw terminal |
| Height | 23 mm |
| Width | 46 mm |
| Control | DALI, 0-10V, 1-10V |
| Length | 165 mm |
| IP protection | IP20 |
| Manufacturer's warranty | 3 years |
Data sheets
