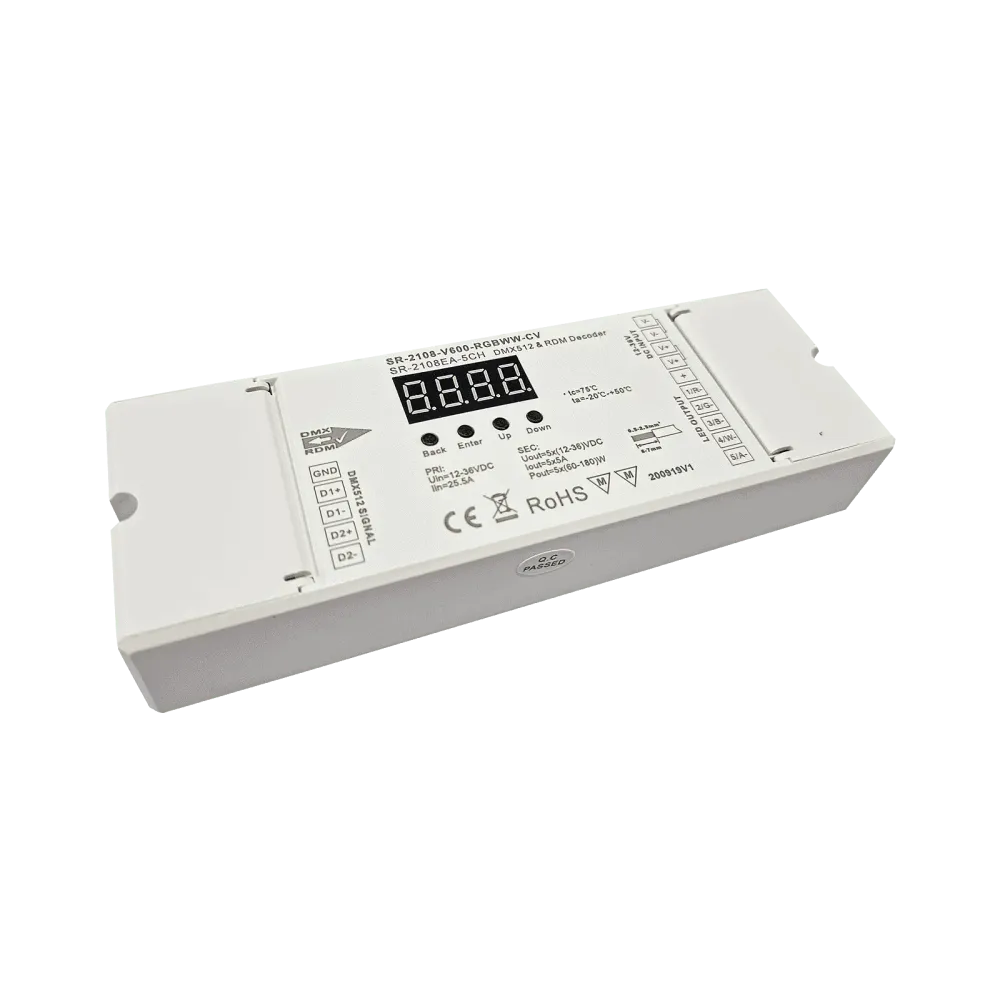

5 channel DMX512 RDM LED dimmer, RGBWW, constant voltage 12-36VDC, max. 900W

Delivery at your place between May 20 and Jun 24 2025

Add to cart

About the product

SR-2108-V600-RGBWW-CV with RDM function, adjustable PWM resolution/frequency and DMX512 interface is ideal for the operation of RGBW constant voltage LED applications such as LED strips.

Control

DMX512 RDM

Application

RGBW, RGB, Tunable White, Single Color

Dimming range

The load-independent dimming range is 0.1% to 100% of the connected load.

Technical data

DMX512 RDM 5 channel dimmer
The RDM function enables communication between the master and decoder
Standard DMX512-compliant control interface, allows the DMX address to be set freely and shows the address on a digital numerical display.
PWM frequency adjustable between 500Hz and 30kHz
Compatible with standard DMX systems
Digital DMX address display
Gamma value of the dimming curve adjustable between 0.1-9.9
IP20 Degree of protection
Plastic housing
Operating temperature range from -20°C to +50°C
Dimension 170 x 59 x 29mm
5 year guarantee

Product specifications

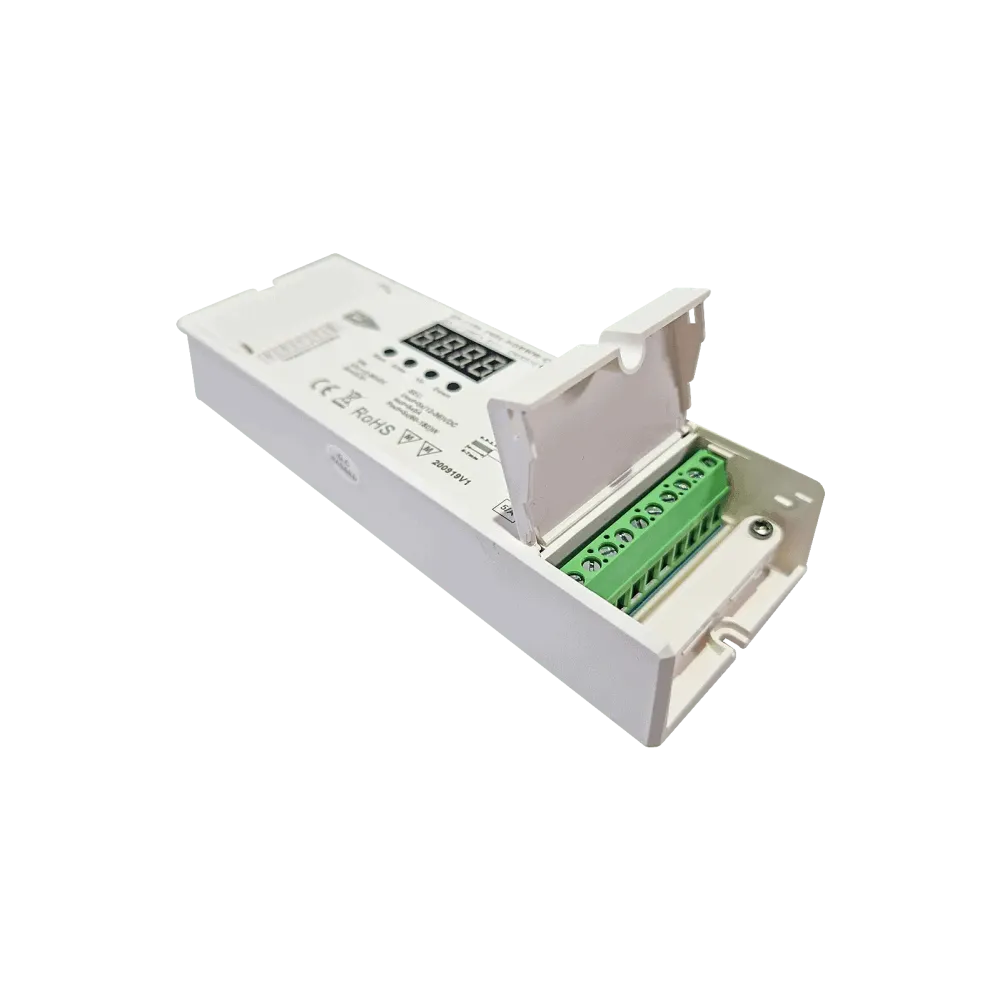

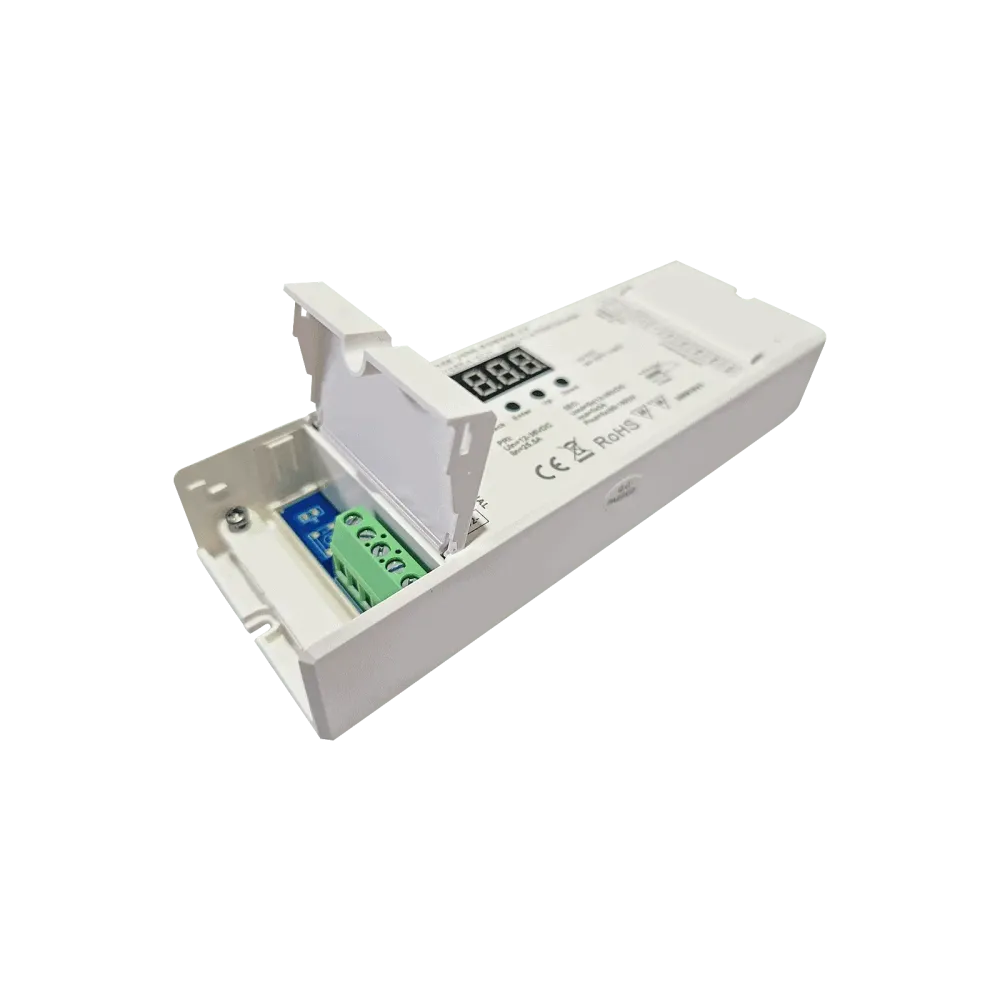

Connection	Screw terminal
Application	RGB, RGBW, RGBWW, Single Color, Tunable White
Dimming type	PWM
Manufacturer's warranty	5 years
IP protection	IP20
Power	900 W
Product series	SR-2108
Height	29 mm
Width	59 mm
Output voltage range (VDC)	12-36 V
Output current per channel (A)	5
Channels	5
Control	DMX
Length	170 mm
Input voltage range (VDC)	42-60 V
