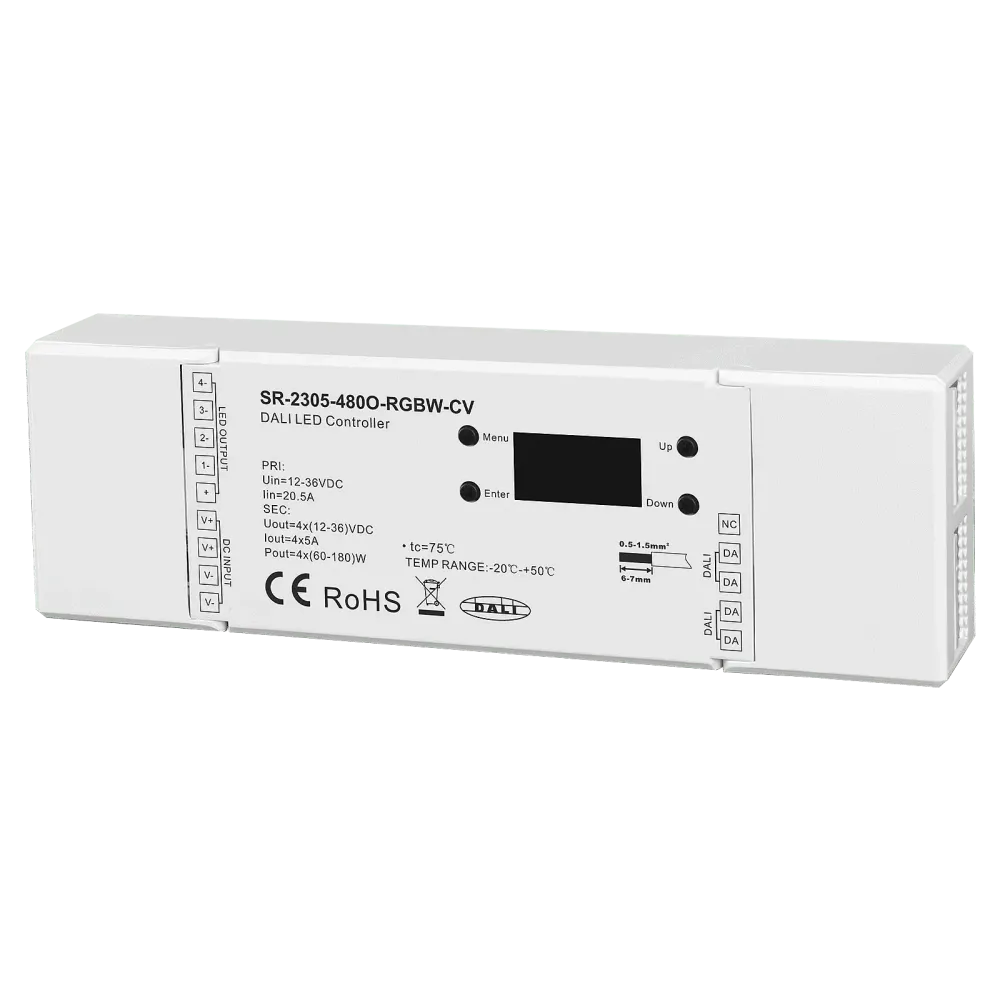

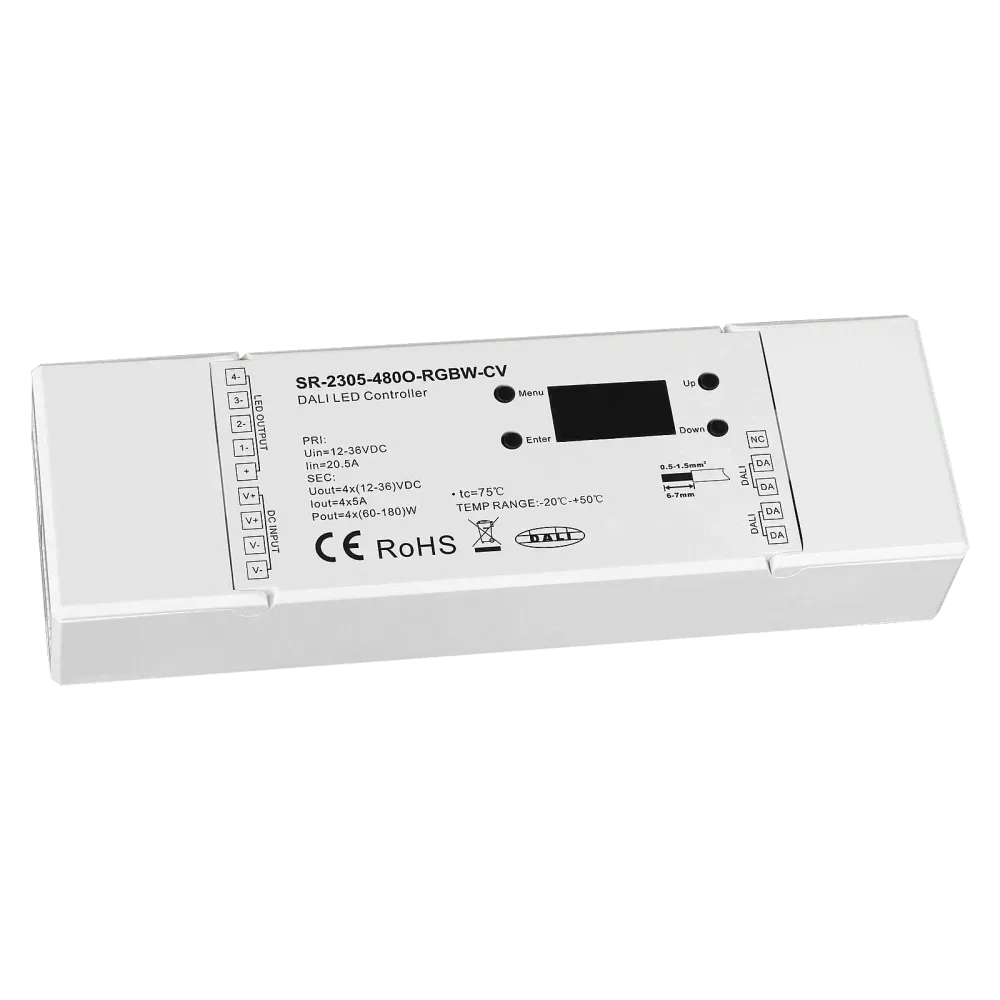

4-channel DALI DT6 LED dimmer with master function, RGBW, constant voltage 12-36VDC, max. 720W

Delivery at your place between May 20 and Jun 24 2025

Add to cart

About the product

SR-2305-480O-RGBW-CV with configurable PWM output, MASTER function and DALI DT6 interface is ideal for the operation of RGBW constant voltage LED applications such as LED strips.

Control

DALI DT6

Application

Tunable White, RGBW, RGB, Single Color

Dimming range

The load-independent dimming range is 0.1% to 100% of the connected load.

Technical data

DALI DT6 dimmer, 4 channels PWM output, built-in
DALI master function
OLED display interface, quick and easy installation
No DALI master required for configuration
Cost and time savings compared to DALI USB configuration
DALI address quantity 1-4 adjustable for 4 PWM outputs
Enables individual addressing and grouping of 4 PWM outputs
Enables 16 DALI scenes to be individually predefined and called up for 4 PWM outputs
Logarithmic/linear dimming curve adjustable, corresponds to the sensitivity of the human eye
PWM frequency adjustable from 250Hz-30kHz, flicker-free, no noise
Allows you to set a minimum level for dimming between this and the maximum level
Enables manual adjustment of the output level for 4 individual PWM outputs
Enables the setting of Fade Time, Fade Rate, Power On Level, System Failure Level
Compatible with universal DALI masters that support DT6 commands.
Protection class IP20
Dimension 170 x 53.4 x 28mm
5 year guarantee

Product specifications

Manufacturer	Sunricher

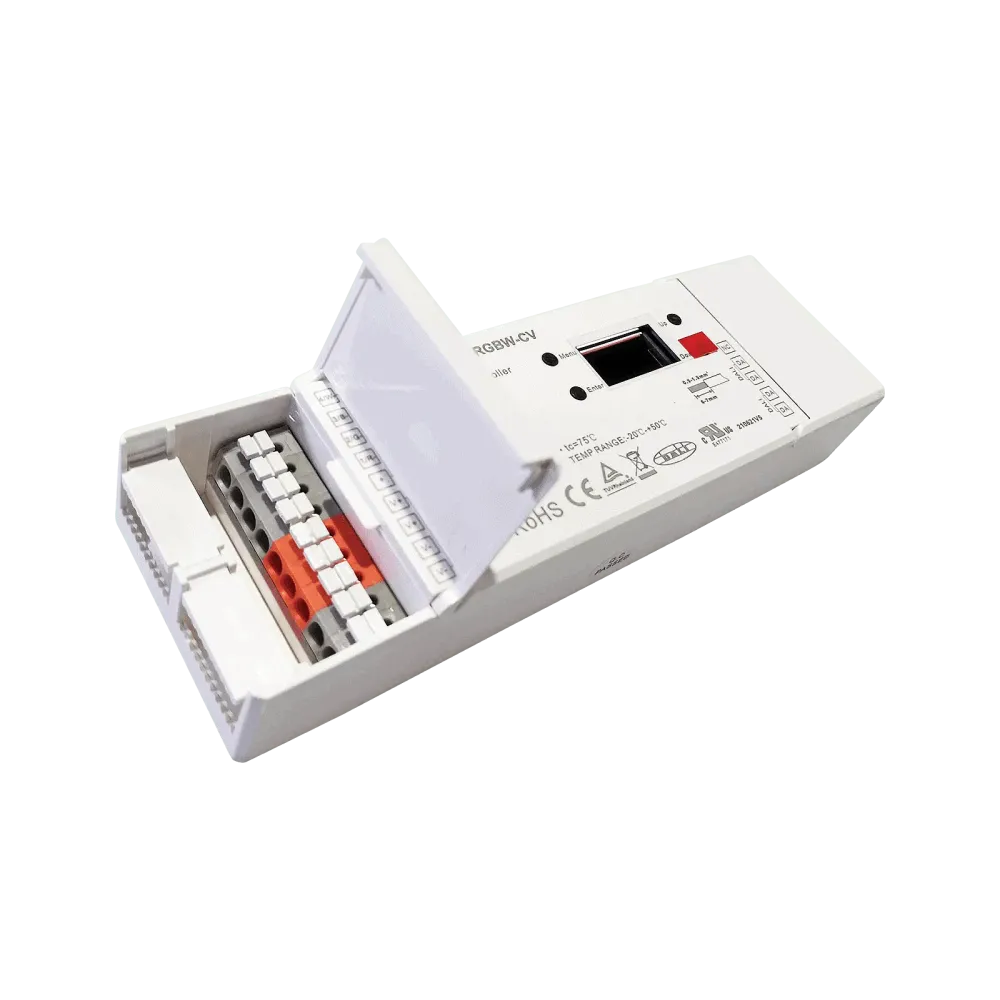

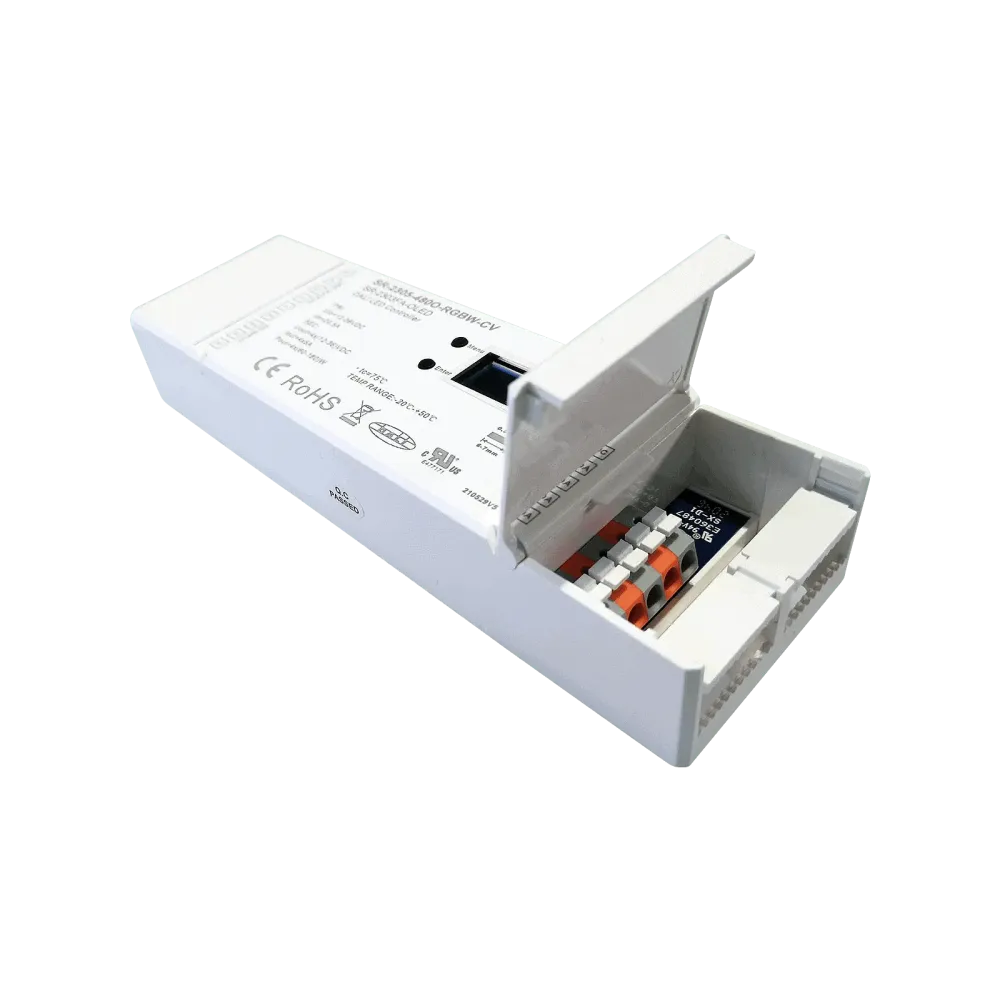

Connection	Spring clamp
Application	RGB, RGBW, Single Color, Tunable White
Dimming type	PWM
Manufacturer's warranty	5 years
IP protection	IP20
Product series	SR-2305
Power	720 W
Output voltage range (VDC)	12-36 V
Output current per channel (A)	5
Channels	4
Height	28 mm
Width	53.4 mm
Length	170 mm
Control	DALI
Input voltage range (VDC)	42-60 V
