About the product

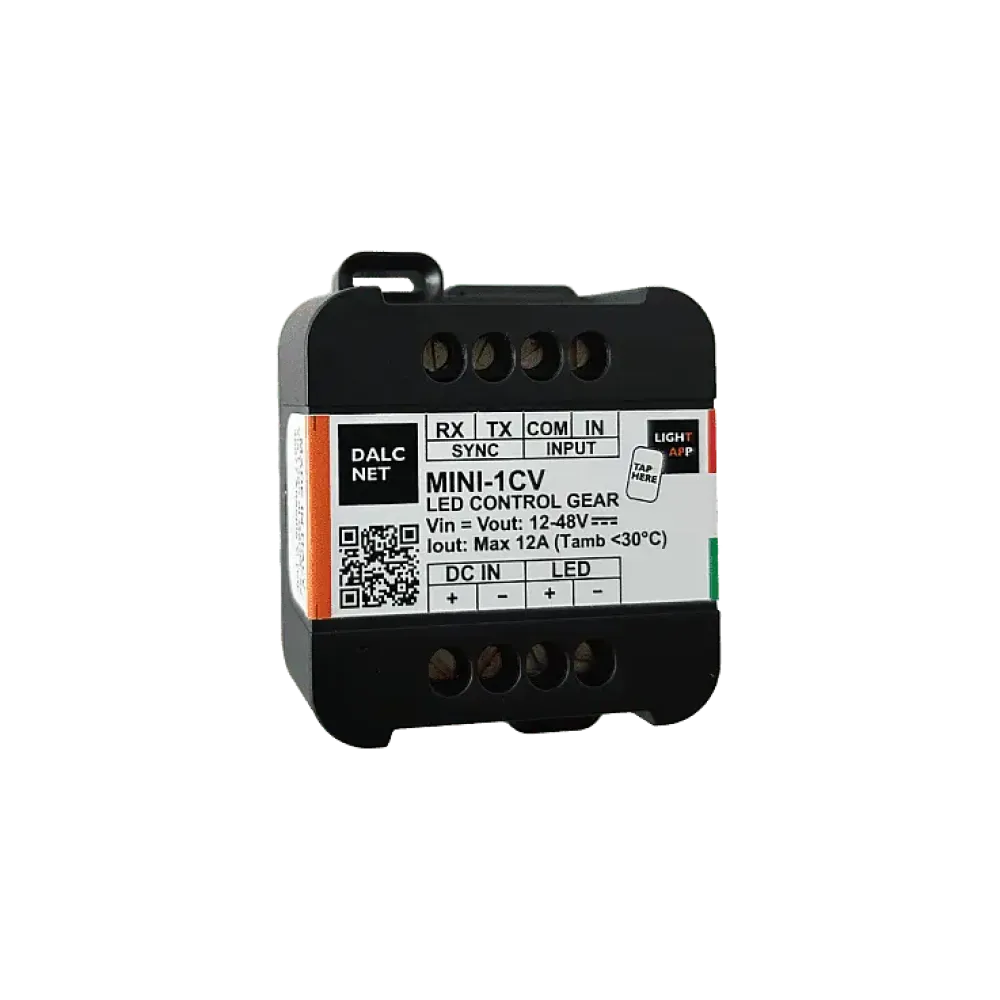

The MINI-1CV is a single-channel LED dimmer that can be controlled locally with a normally open push-button, a 0-10V/1-10V signal or a potentiometer.
. The LED dimmer is suitable for controlling loads such as LED strips and LED modules, white and single-color constant voltage. It is possible to connect a power supply with 12-24-48 Vdc.
. The maximum value of the output current is 12A. The LED dimmer has the following protective functions: Overvoltage protection, undervoltage protection, reverse polarity protection and input fuse.
. The Dalcnet LightApp mobile application allows you to configure several parameters of the MINI-1CV, such as dimming frequency, dimming curve, maximum and minimum brightness level, etc. It also allows you to configure everything from simple brightness settings to 10 scenarios or dynamic animations.
. LightApp can be downloaded free of charge from the Apple App Store and the Google Play Store.
. ⇢ You can find the constantly updated manual on our website: www.dalcnet.com
APPLE ANDROID
..Technical data
Input voltage: 12-24-48VDC
. Output current: 12A
. Voltage output for LED strips and LED modules
. WHITE and MONOCHROME lighting control
. Device configuration with the Dalcnet LightApp Local Command mobile application:
. o Button N°1 normally open
. o 0-10V
. o 1-10V
. o Potentiometer 10KOhm
. Constant voltage outputs for resistive loads
. PWM modulation
. PWM frequency can be set via APP
. Adjustment curve can be set via APP
. Smooth switching on and off
. Extended temperature range
. 100% function test
. 5 year warranty
Product specifications
| Application | Single color |
| Product series | MINI |
| Input voltage range (VDC) | 12-24 V |
| Manufacturer's warranty | 5 years |
| IP protection | IP20 |
| Length | 44 mm |
| Output current per channel (A) | 12 |
| Output voltage range (VDC) | 12-48 V |
| Manufacturer | DalcNet |
| Height | 25 mm |
| Width | 57 mm |
| Connection | Screw terminal |
| Channels | 1 |
| Control | Low voltage push, 0-10V, 1-10V, resistor |
