Item ID: 43541

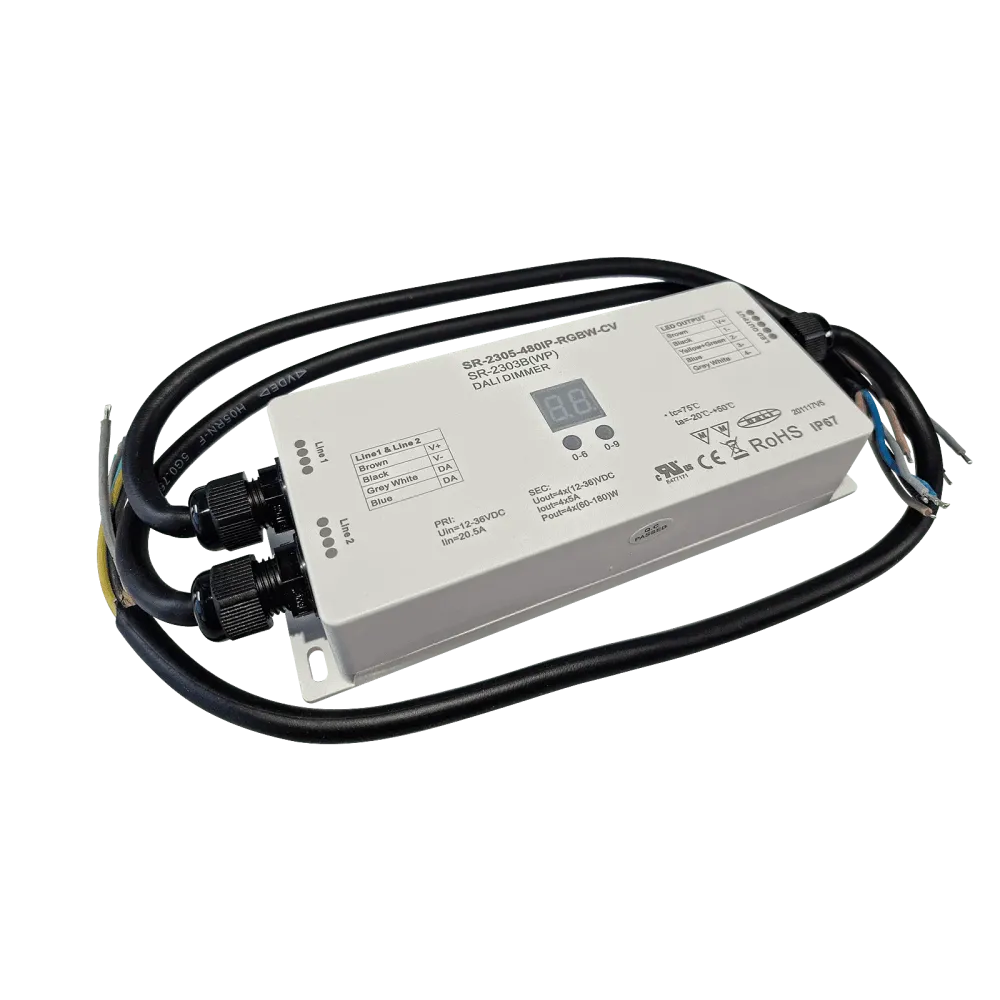

4-channel DALI DT6 LED dimmer, RGBW, constant voltage 12-36VDC, max. 720W, IP67
About the product
SR-2305-480IP-RGBW-CV with configurable PWM output, IP67 and DALI DT6 interface is ideal for the operation of RGBW constant voltage LED applications such as LED strips.
Control
- DALI, AC Push
Application
- Tunable White, RGBW, RGB, Single Color
Dimming range
The load-independent dimming range is 0.1% to 100% of the connected load.
Technical data
- DALI, IP67 4-channel dimmer, with integrated DALI master function
- Can be used as RGBW, RGB, TW or single color control unit
- Suitable for standard DALI systems on the market
- The DALI address can be set manually or via software
- Digital DALI address display
- With built-in repeater function for high performance
- IP67 degree of protection
- Metal housing
- Operating temperature range from -20°C to +45°C
- Dimension 180.5 x 73.6 x 38mm
- 5 year guarantee
Product specifications
| Control | DALI, AC Push Dimming |
| Connection | Cables |
| Application | RGB, RGBW, Single Color, Tunable White |
| Dimming type | PWM |
| Manufacturer's warranty | 5 years |
| IP protection | IP67 |
| Length | 180.5 mm |
| Height | 38 mm |
| Width | 73.6 mm |
| Product series | SR-2305 |
| Power | 720 W |
| Output voltage range (VDC) | 12-36 V |
| Output current per channel (A) | 5 |
| Channels | 4 |
| Input voltage range (VDC) | 42-60 V |
