5 channel DALI DT8 LED dimmer, RGBWA, constant voltage 12-36VDC, max. 900W

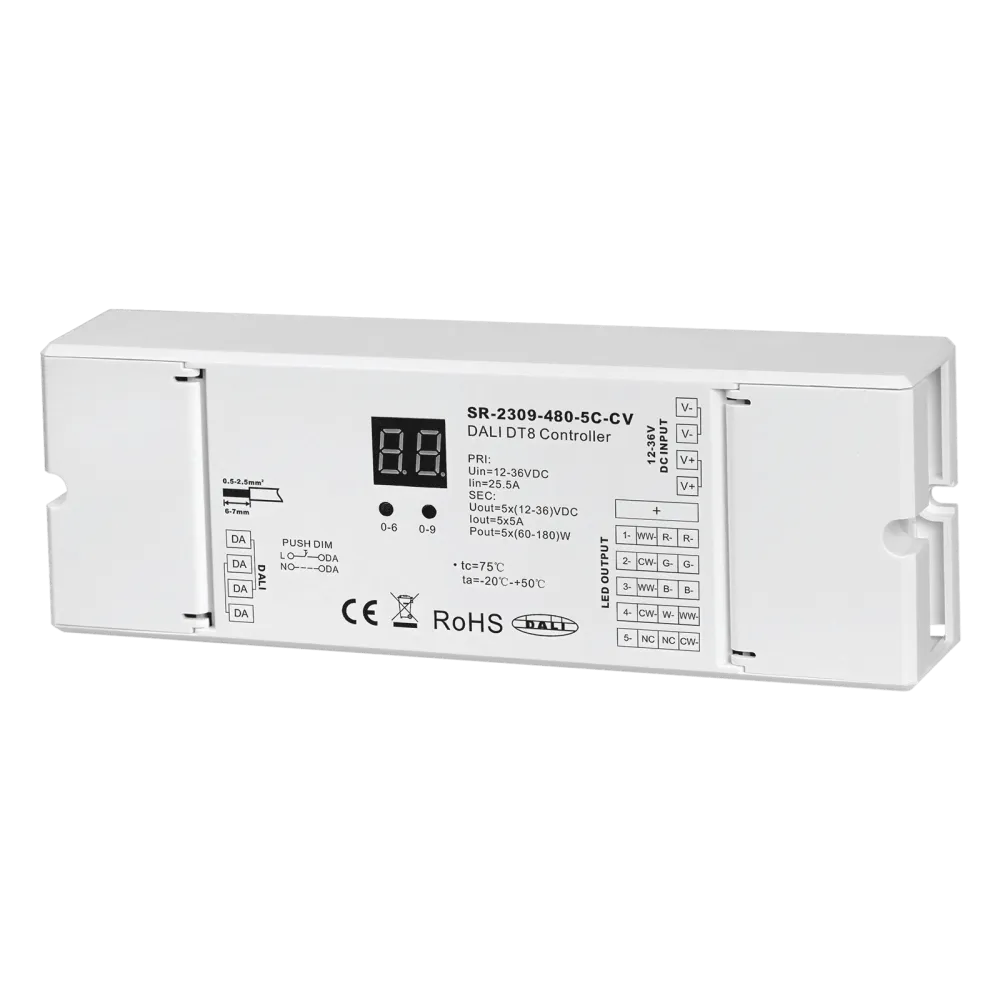

SR-2309-480-5C-CV is a 7 in 1 DALI DT8 dimmer, ideal for operating TW or RGBW constant voltage LED applications such as LED strips. 7 different DT8 colour types (Tc, RGBWAF, XY, 2*Tc, XY+Tc, RGB+Tc, XY+W(DT6)) adjustable.

Control

• DALI DT8

Application

• Tunable White, RGBW, RGB, Single Color

Dimming range

The load-independent dimming range is 0.1% to 100% of the connected load.

Technical data

• 7 in 1 DALI DT8 LED dimmer, max. output power 900W total
• 7 universal device types in 1: Tc, RGBWAF, XY, 2*Tc, XY+Tc, RGB+Tc, XY+W (DT6)
• Can be set as different device types: Types with one address or types with multiple addresses
• Unit types with one address: Tc, RGBWAF, XY
• Unit types with multiple addresses: 2*Tc, XY+Tc, RGB+Tc, XY+W (DT6)
• 5 channels constant voltage output
• Built-in DALI2 interface, DALI DT8 unit, the unit can be controlled via a DALI address
• DALI DT8 device for controlling RGBW outputs or Tunable White outputs via a single DALI address
• Colour control according to DALI DT8 specifications
• High power factor and efficiency
• Generally compatible with DALI masters supporting DT8 commands
• Numerical digital display for manual setting of DALI address
• Compatible with AC push dimmers
• IP20 protection class
• 5 year warranty
