About the product

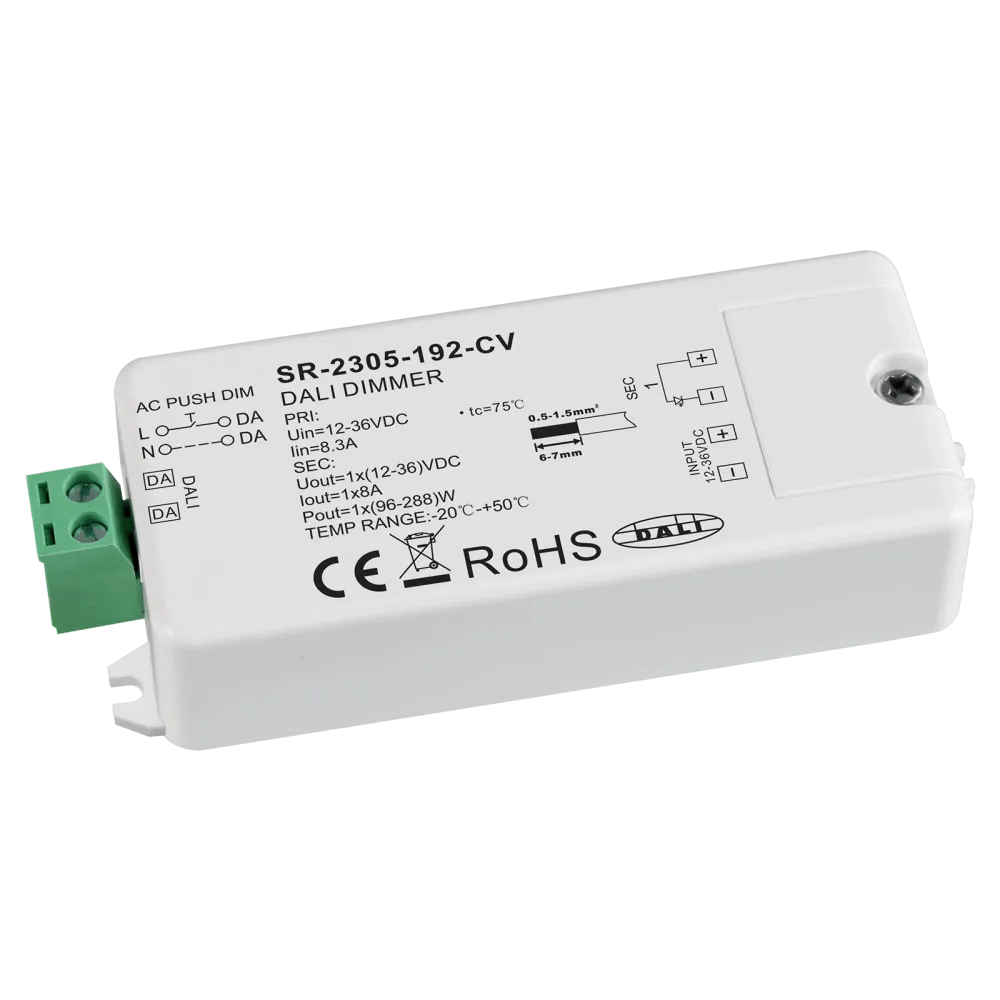

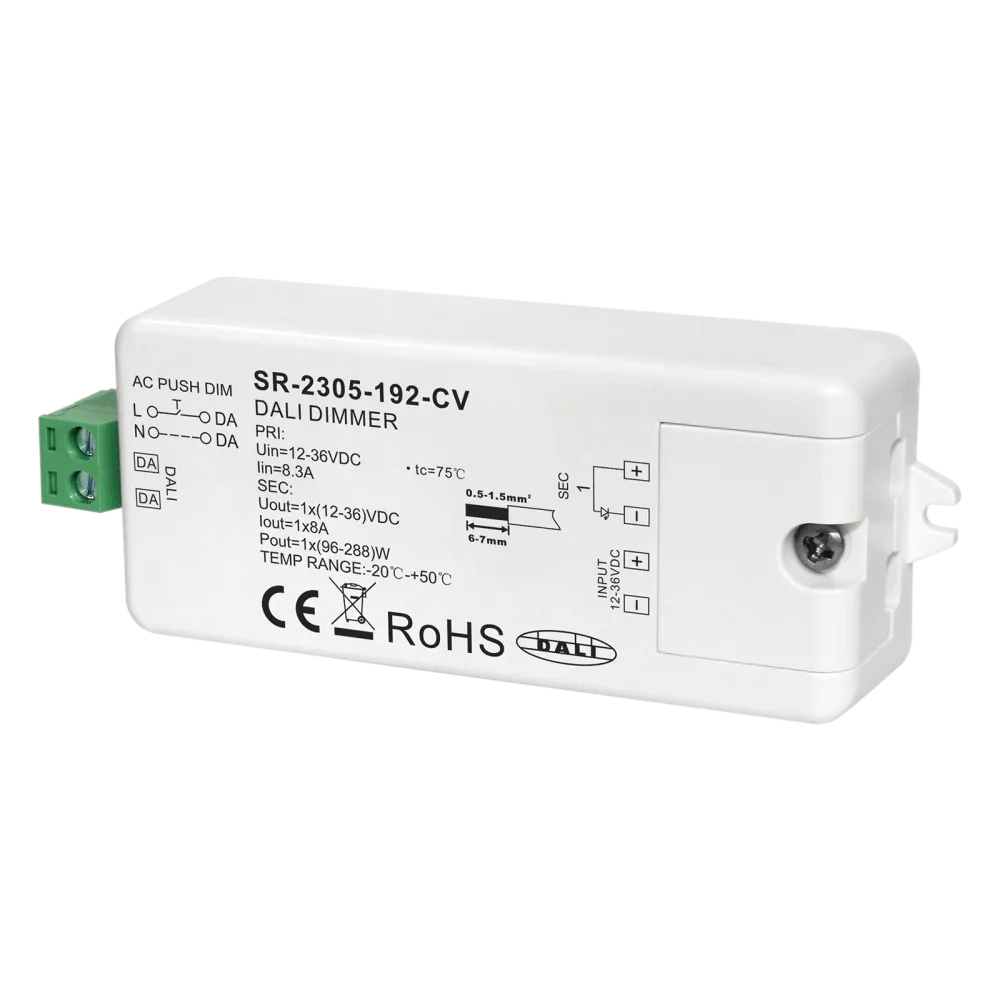

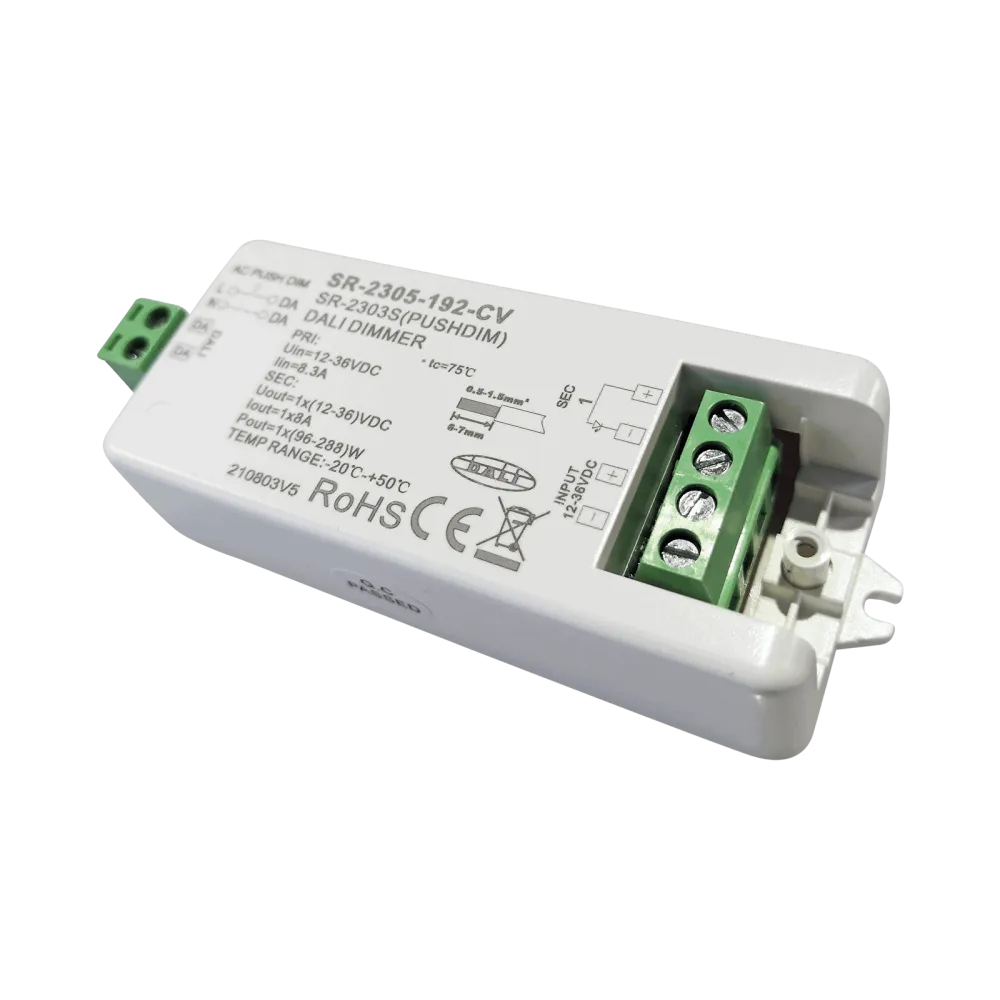

SR-2305-192-CV with PWM output and DALI interface is ideal for operating constant voltage LED applications such as LED strips.
Control
- DALI, AC Push
Application
- Single colour
Dimming range
The load-independent dimming range is 0.1% to 100% of the connected load.
Technical data
- DALI / AC-PUSH 1 CHANNEL DIMMER
- Complies with DALI standards IEC 62386-102, IEC 62386-207
- Compatible with all commercially available DALI systems
- The DALI address can be set via software
- Max. Output current: 8A
- Max. output power Output power at 24VDC: 192W
- IP20 protection class
- Plastic housing
- Operating temperature range from -20°C to +50°C
- Dimension 95 x 37 x 20mm
- 5 years warranty
Product specifications
| Control | DALI, AC Push Dimming |
| Product series | SR-2305 |
| Length | 95 mm |
| IP protection | IP20 |
| Height | 20 mm |
| Manufacturer warranty | 5 years |
| Manufacturer | Sunricher |
| Dimming method | PWM |
| Width | 37 mm |
| Output current per channel (A) | 8 |
| Connection | Screw terminal |
| Channels | 1 |
| Power | 288 W |
| Input voltage range (VDC) | 12-36 V |
| Application | Single color |
| Output voltage range (VDC) | 12-36 V |
