About the product

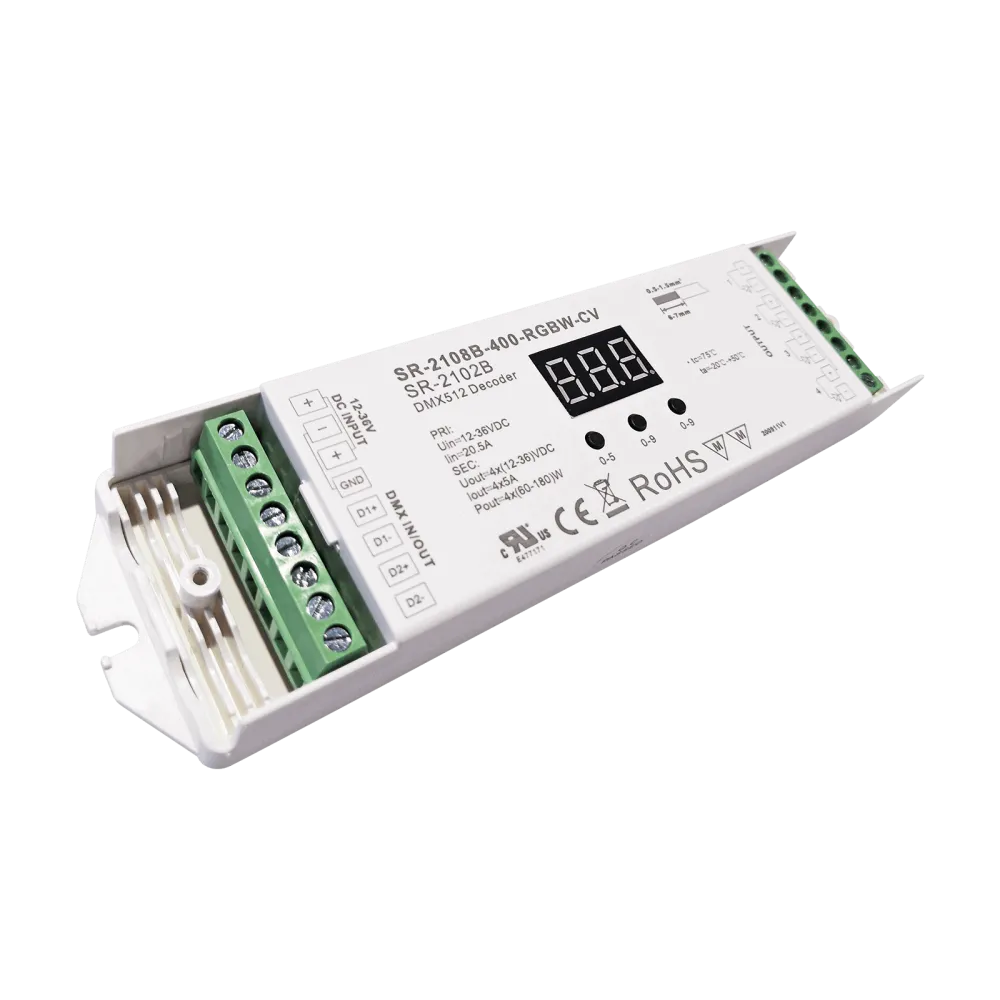

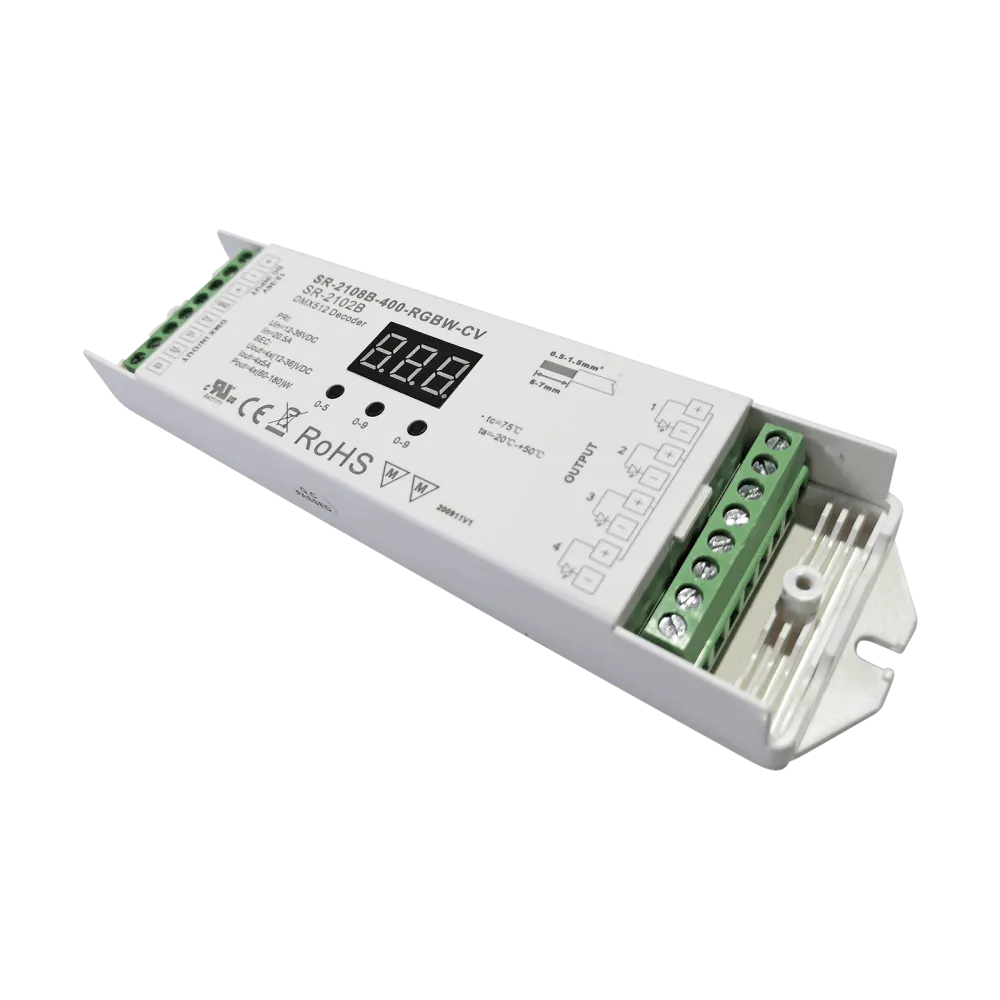

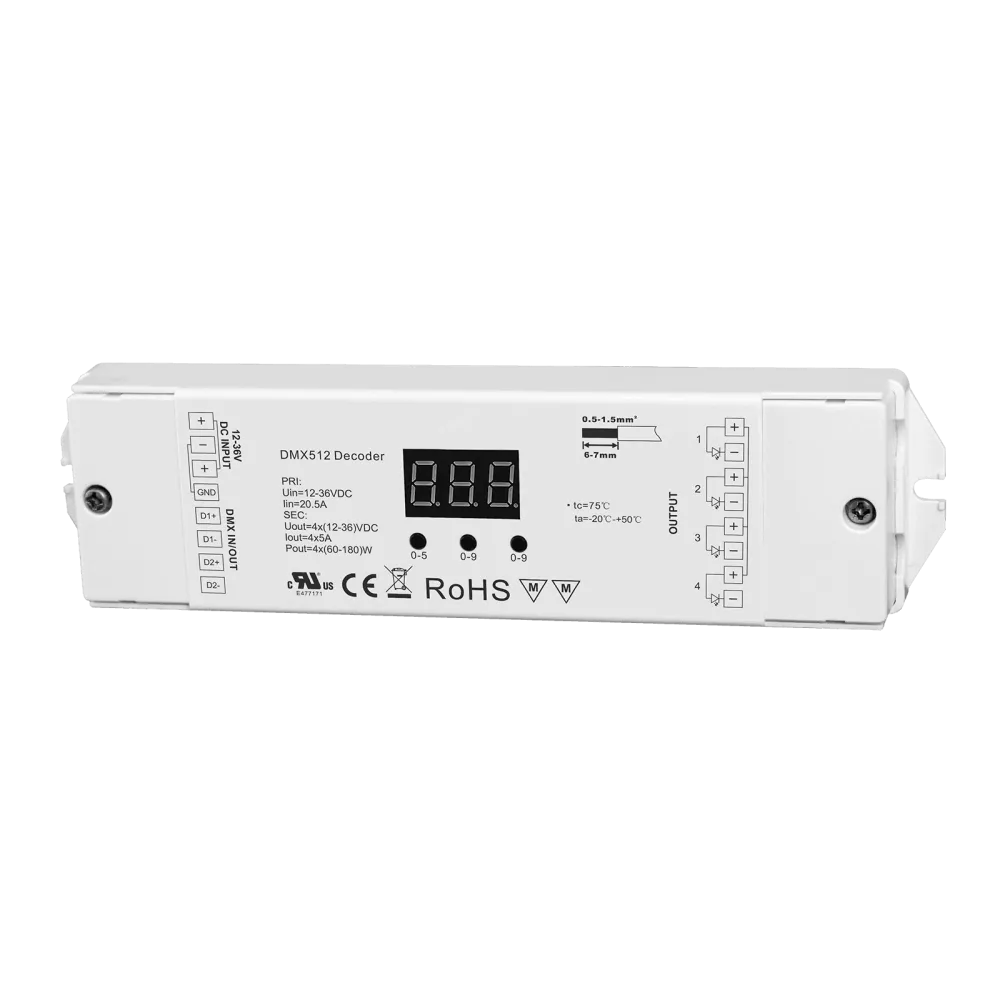

SR-2108B-400-RGBW-CV with adjustable PWM output and DMX512 interface is ideal for driving RGBW constant voltage LED applications such as LED strips.
Control
- DMX512
Application
- RGBW, RGB, Tunable White, Single Color
Dimming range
The load-independent dimming range is 0.1% to 100% of the connected load.
Technical data
- DMX512 4 channel dimmer
- Standard DMX512 compliant control interface, allows free setting of DMX address and displays address via digital numeric display.
- PWM frequency 2kHz
- Compatible with standard DMX systems
- Digital DMX address display
- IP20 protection rating
- Plastic housing
- Operating temperature range from -20°C to +50°C
- Dimensions 178 x 46 x 22mm
- 5 years warranty
Product specifications
| Control | DMX |
| Product series | SR-2108 |
| Length | 178 mm |
| IP protection | IP20 |
| Height | 22 mm |
| Manufacturer warranty | 5 years |
| Dimming method | PWM |
| Width | 46 mm |
| Output current per channel (A) | 5 |
| Connection | Screw terminal |
| Channels | 4 |
| Power | 720 W |
| Input voltage range (VDC) | 12-36 V |
| Application | RGB, RGBW, Single color, Tunable white |
| Output voltage range (VDC) | 12-36 V |
