About the product

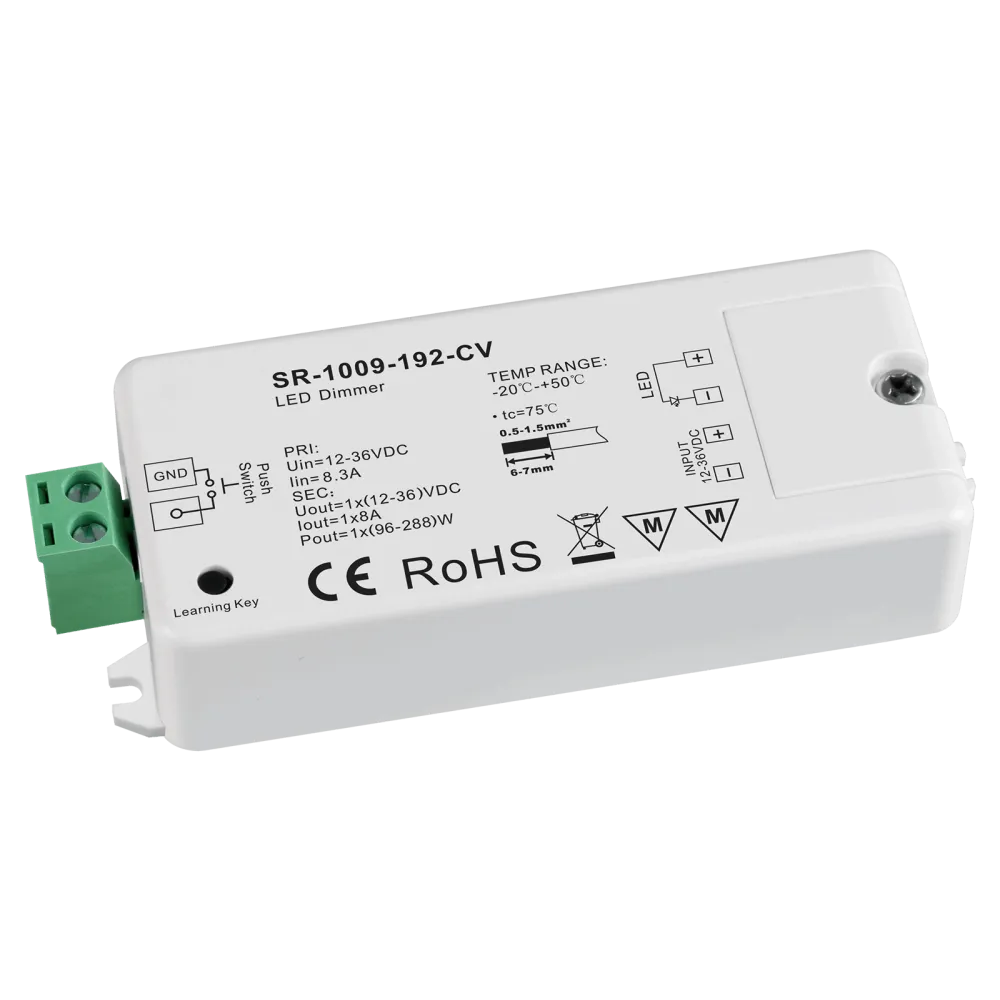

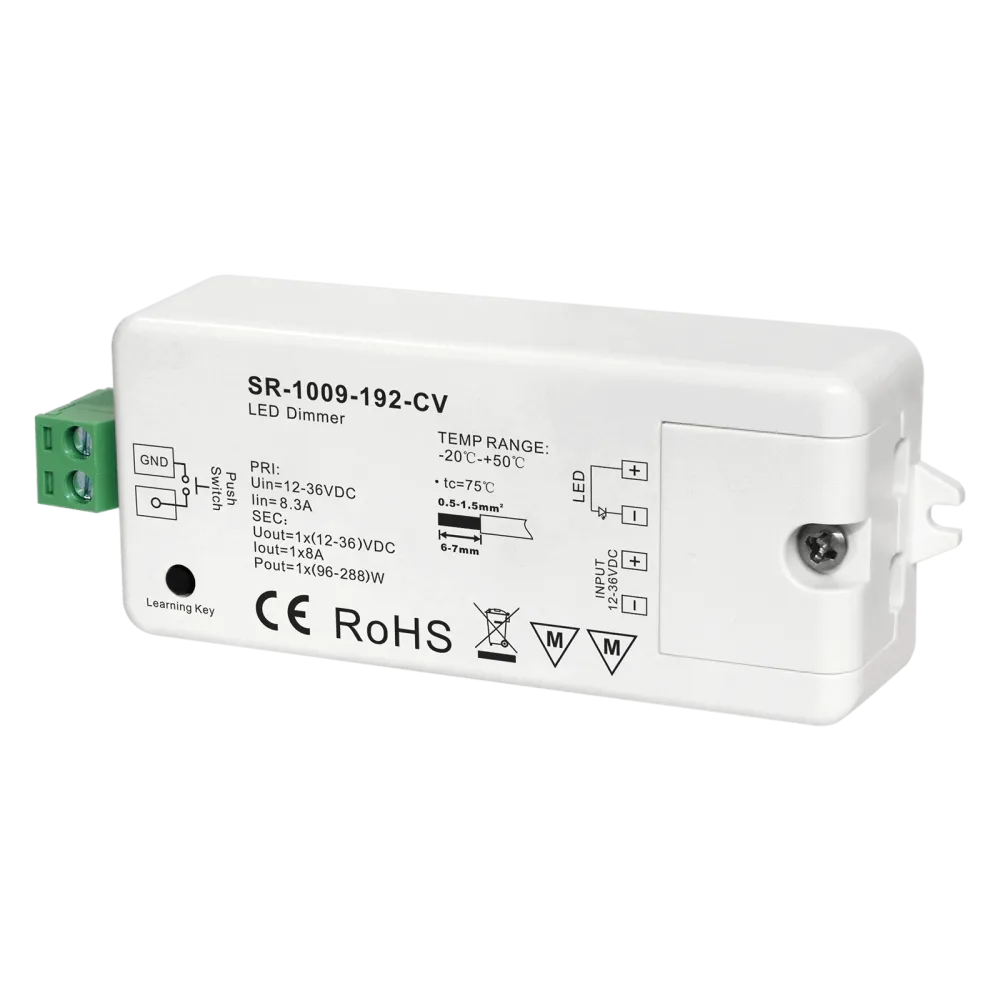

SR-1009-192-CV is a compact 1 channel LED dimmer with PWM output and RF wireless interface. Ideal for constant voltage LED applications such as LED strips.
Control
- RF Wireless (radio), LV Push
Application
- Single colour
Dimming range
The load-independent dimming range is 0.1% to 100% of the connected load.
Technical data
- RF Wireless and LV Push 1 CHANNEL DIMMER
- Max. Output current: 8A
- Max. Output power at 24VDC: 192W
- Compatible with all SC-1009 series remote controls
- IP20 protection rating
- Plastic housing
- Operating temperature range from -20°C to +45°C
- Dimension 95 x 37 x 20mm
- 5 years warranty
Product specifications
| Control | RF Wireless, Low Voltage Push |
| Product series | SR-1009 |
| Length | 95 mm |
| IP protection | IP20 |
| Height | 20 mm |
| Manufacturer warranty | 5 years |
| Dimming method | PWM |
| Width | 37 mm |
| Output current per channel (A) | 8 |
| Connection | Screw terminal |
| Channels | 1 |
| Power | 288 W |
| Input voltage range (VDC) | 12-36 V |
| Application | Single color |
| Output voltage range (VDC) | 12-36 V |
Data sheets
