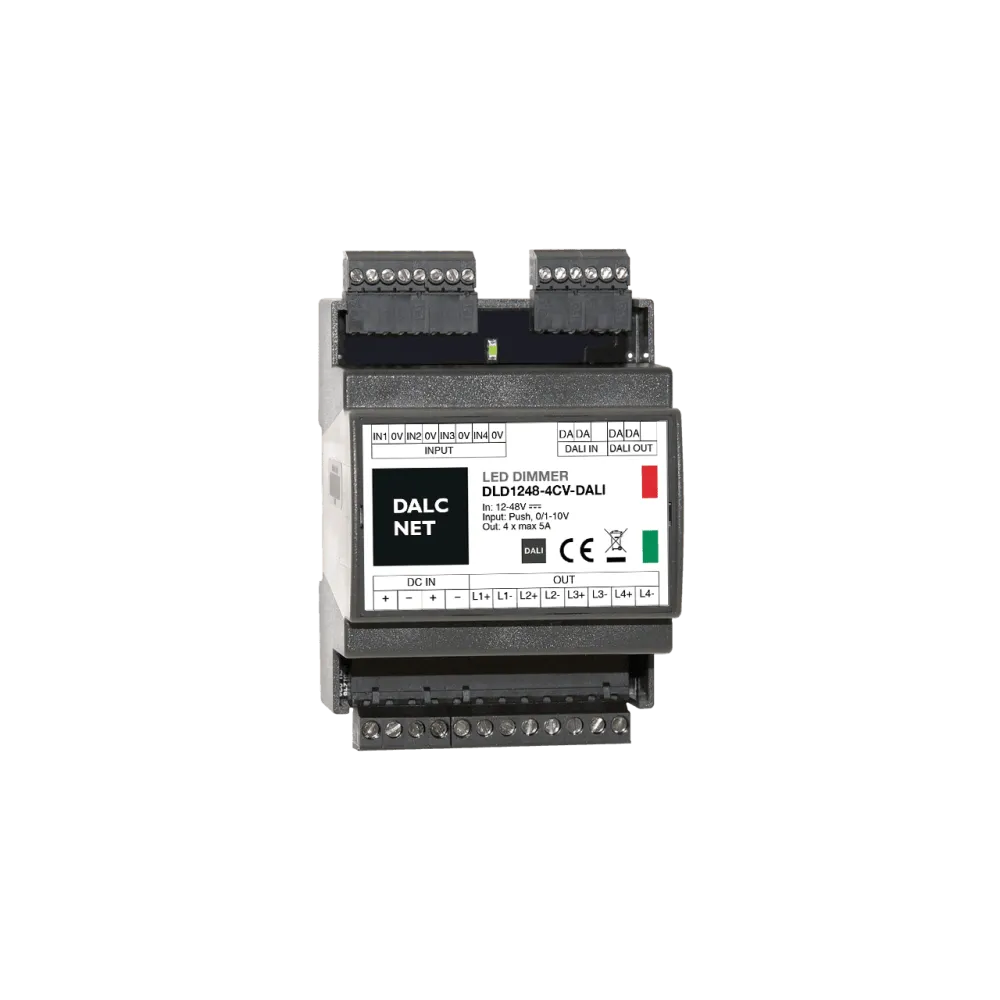

About the product
- Output: 4 channels
- BUS+SEQUENCER+FADER+DIMMER+DRIVER
- Input: DC 12/24/48 Vdc
- BUS Command: DALI
- LOCAL Command: 4x N.O. push button (with or without memory), 0-10V, 1-10V
- and Potentiometer 10KOhm
- Controls: Dimmer, Dim to Warm, Tunable White, RGB, RGBW
- Control outputs and Current outputs for R-L-C loads
- Typical efficiency > 95%
- Adjusting the brightness up to completed off (Dim to Dark)
- Level minimum of brightness: 0.1% (1% in push)
- D-PWM Modulation
- Adjusting D-PWM frequency: 300 / 600 / 1200 Hz
- Adjusting output curve: Linear / Quadratic / Exponential
- Soft start and soft stop
- Soft dimming regulation
- Master / Slave Function (DMX variant)
- Extended temperature range
- 100% Functional test
- 5 years warranty
Product specifications
| Control | DALI, Low Voltage Push, Resistor, 0-10V, 1-10V |
| Length | 72 mm |
| Height | 62 mm |
| Manufacturer warranty | 5 years |
| Manufacturer | DalcNet |
| Width | 92 mm |
| Output current per channel (A) | 5 |
| Connection | Screw terminal |
| Channels | 4 |
| Input voltage range (VDC) | 12-48 V |
| Application | RGB, RGBW, Single color, Tunable white |
| Output voltage range (VDC) | 12-48 V |
