About the product

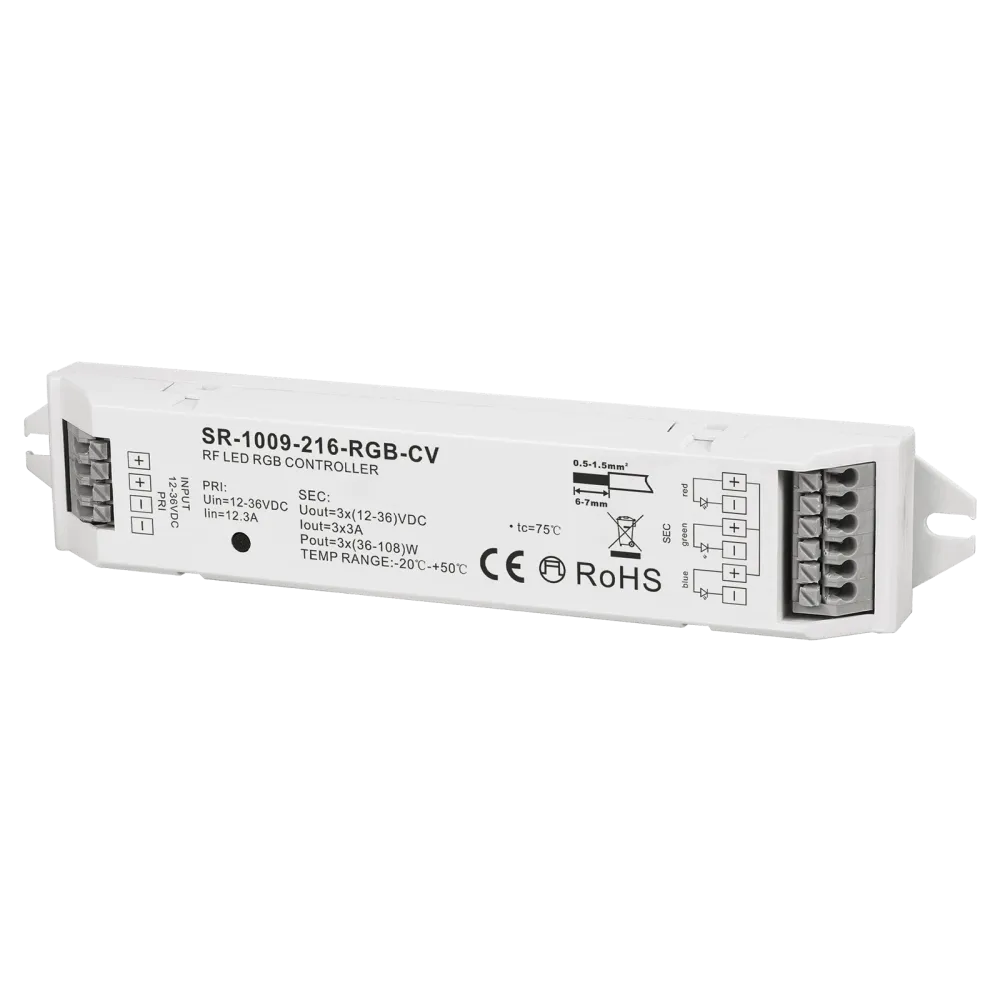

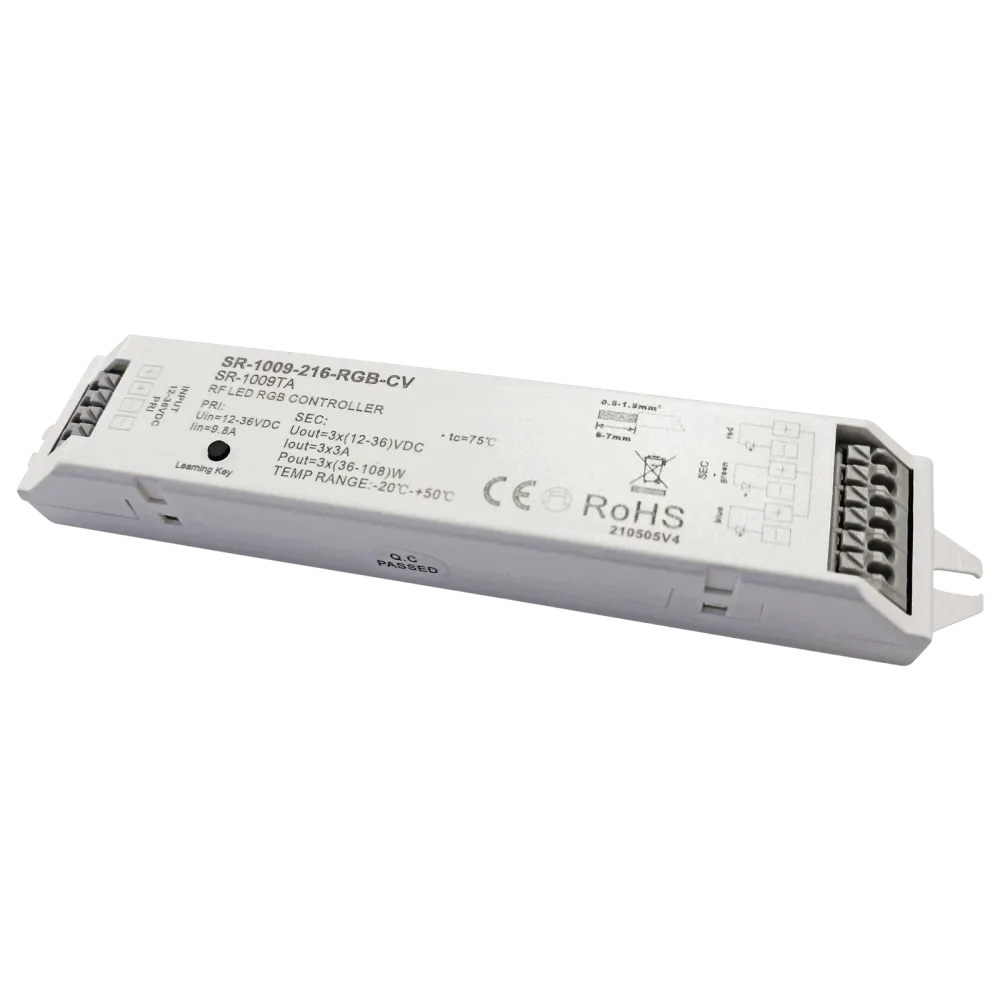

SR-1009-216-RGB-CV with PWM output and RF wireless interface is ideal for driving RGBW constant voltage LED applications such as LED strips.
Control
- RF Wireless (radio)
Application
- RGB, Tunable White, Single Color
Dimming range
The load-independent dimming range is 0.1% to 100% of the connected load.
Technical data
- RF Wireless 3 CHANNEL DIMMER
- Can be used as RGB, TW or single colour control unit
- Max. Output current: 3A per channel
- Max. Output power at 24VDC: 216W
- With built-in repeater function for high power
- Compatible with all SC-1009 series remote controls
- IP20 protection rating
- Plastic housing
- Operating temperature range from -20°C to +40°C
- Dimension 160 x 30 x 19mm
- 5 years warranty
Product specifications
| Control | RF Wireless |
| Product series | SR-1009 |
| Length | 160 mm |
| IP protection | IP20 |
| Height | 19 mm |
| Manufacturer warranty | 5 years |
| Dimming method | PWM |
| Width | 30 mm |
| Output current per channel (A) | 3 |
| Connection | Push-in terminal |
| Channels | 3 |
| Power | 324 W |
| Input voltage range (VDC) | 12-36 V |
| Application | RGB, Single Color, Tunable white |
| Output voltage range (VDC) | 12-36 V |
