About the product

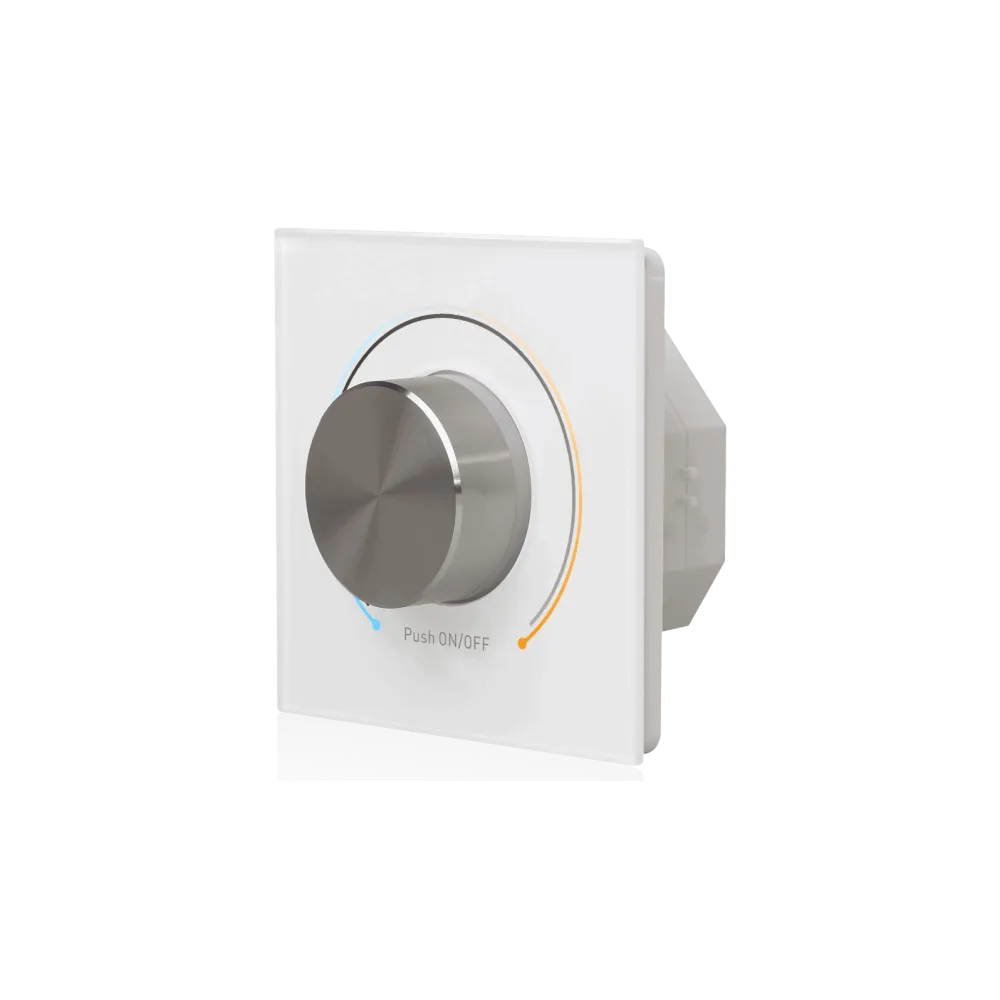

DALI DT8 rotary switch for wall mounting, suitable for all SR-2309 drivers / dimmers.
Control
- DALI DT8
Application
- Tunable white
Technical data
- Dimension: 80 x 80 x 53mm
- Colour: Transparent
- Operating mode: 240VAC, DALI BUS
- Innovative function for powering the DALI bus when connected to AC mains
- Can be powered by DALI bus when panel is not connected to AC!
- Each control panel circuit can feed the DALI bus for up to 50 devices.
- Easy brightness and colour adjustment
- When several panels are in a circuit, the lighting system reacts immediately and simultaneously when the brightness level is adjusted from one control panel.
- IP20 protection rating
- Warranty: 5 years
Product specifications
| Control | DALI DT8 |
| Application | Tunable white |
| Length | 80 mm |
| Width | 80 mm |
| Height | 53 mm |
| Colour | White |
| Product series | SC-2309 |
| IP protection | IP20 |
| Manufacturer warranty | 5 years |
