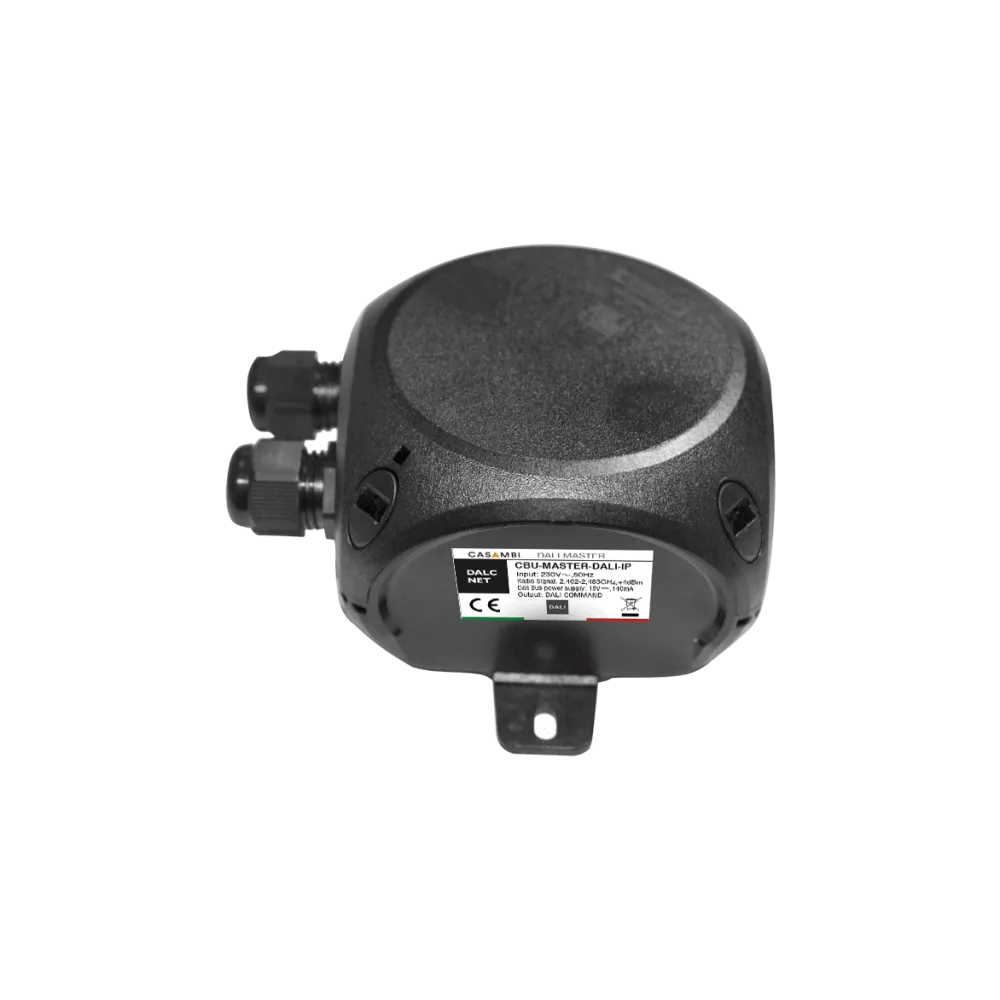

Signal converter CASAMBI to DALI for outdoor applications, input CASAMBI, output DALI

This innovative signal converter with IP66 protection class was specially developed to control DALI applications outdoors using the Casambi app. It supports both DALI DT6 and DALI DT8 commands, enabling the implementation of Tunable White, RGB and RGBW applications outdoors. In addition, this signal converter is also available as a Casambi to DMX signal converter and offers a compact housing with dimensions of only 90x90x65mm.

The converter is operated with 230VAC and has the ability to automatically detect short circuits in the DALI bus. When a short circuit is detected, the unit automatically switches off the power supply to the bus to prevent damage. The CBU-DALI-IP has been awarded the DALI-2 certificate.

Technical data

• CONVERTER+CASAMBI+BUS
• REPEATER CASAMBI
• Input: 230Vac
• Command: APP CASAMBI
• DALI2 certified
• Signal converter from Casambi to DALI o DMX, in MASTER Variant
• Signal repeater, in REPEATER Variant
• Possibility to control DALI or DMX device, by Casambi APP
• Extended temperature range
• 100% Functional test
• IP66
• 5 Years warranty
