About the product

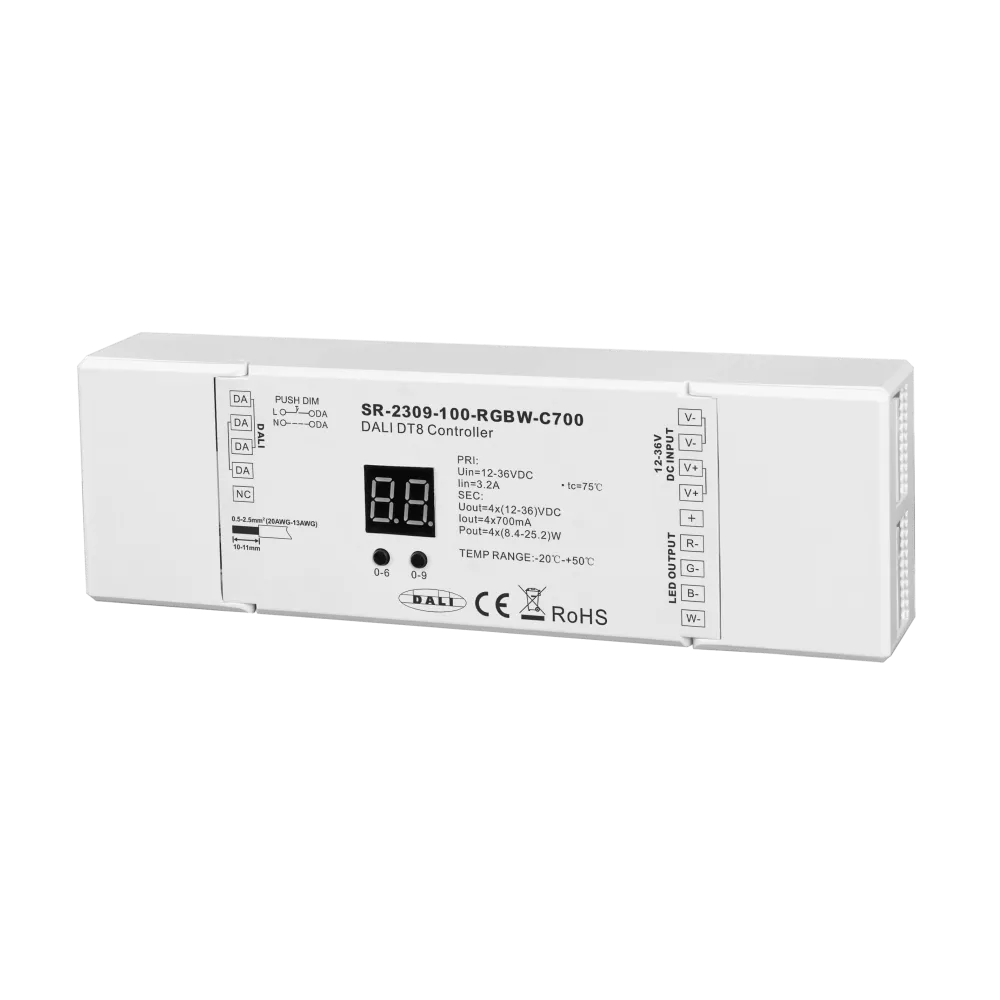

SR-2309-100-RGBW-C700 with PWM output and DALI DT8 interface is ideal for operating RGBW constant current LED applications such as LED modules.
Control
- DALI DT8, AC-PUSH
Application
- RGBW
Dimming range
The load-independent dimming range is 0.1% to 100% of the connected load.
Dimming method: PWM, 1.5kHz
Technical data
- DALI DT8 RGBW LED dimmer
- In accordance with IEC 62386-101:2014, IEC 62386-.
- 102:2014, IEC 62386-207 Ed2, IEC 62386-209:2011
- Built-in DALI-2 interface, DALI DT8 device
- DALI DT8 device to control red, green, blue and white output via a single DALI address.
- 4 channels with constant current output
- Enables dimming and colour matching
- Control of four PWM outputs R, G, B and W via DALI device type 8
- Colour control as defined in the DALI specification Device type 8
- Colour type RGBW or XY coordinates can be preset at the factory, default is RGBW
- Supports DT8 device commands, compatible with DALI masters that support DT8 commands
- Configuration via the USB interface of the DALI master
- Numerical digital display for manual setting of DALI address
- Protection class IP20
- Dimension 170 x 53.4 x 28mm
- 5 years warranty
Product specifications
| Control | DALI DT8, AC Push Dimming |
| Output current | 700 mA |
| Product series | SR-2309 |
| Length | 170 mm |
| IP protection | IP20 |
| Height | 28 mm |
| Manufacturer warranty | 5 years |
| Dimming method | PWM |
| Width | 53.4 mm |
| Connection | Push-in terminal |
| Channels | 4 |
| Power | 100 W |
| Input voltage range (VDC) | 12-36 V |
| Application | RGBW |
| Output voltage range (VDC) | 12-36 V |
