About the product

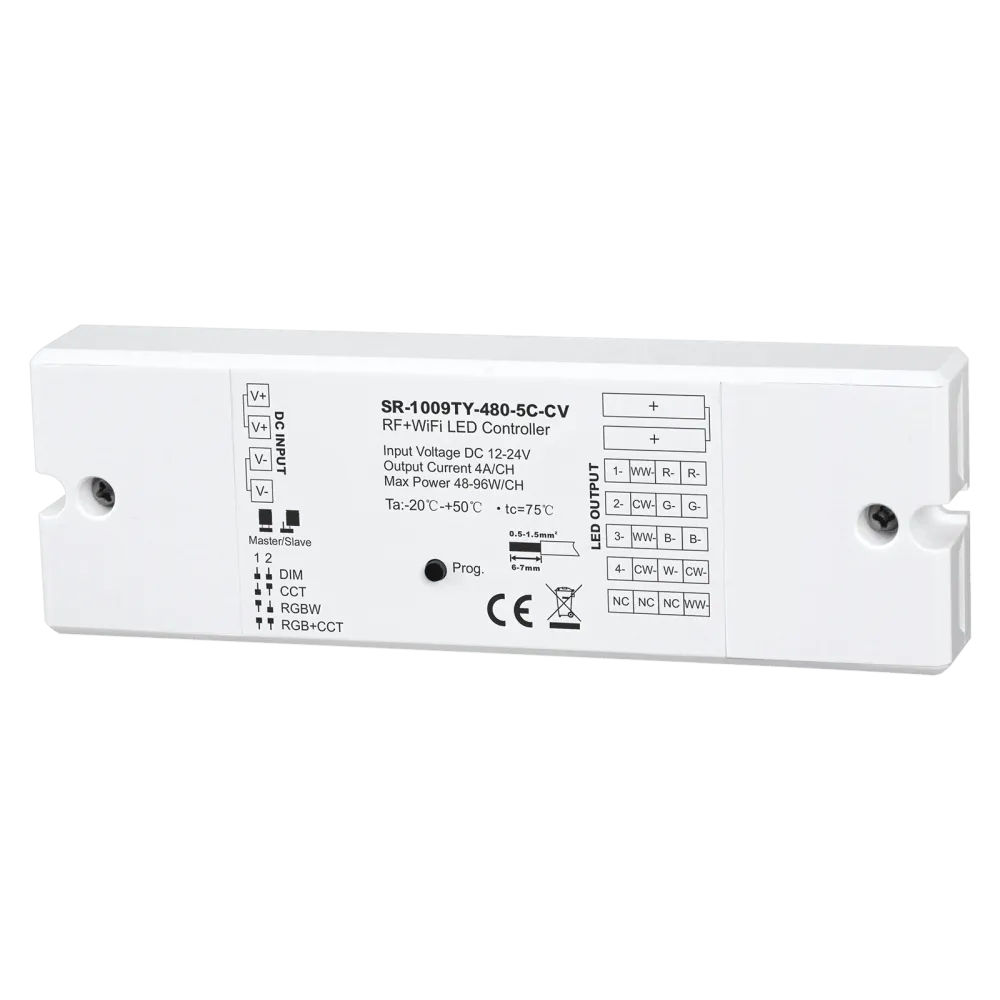

SR-1009TY-480-5C-CV with PWM output and TUYA, WIFI and RF wireless interface is ideal for operating RGBWW constant voltage LED applications such as LED strips. This dimmer can be controlled with all RF remote controls of the SC-1009 series and also directly with the TUYA App.
Control
- RF Wireless (radio), TUYA, WIFI
Application
- RGBW, RGB, Tunable White, Single Color
Dimming range
The load-independent dimming range is 0.1% to 100% of the connected load.
Translated with www.DeepL.com/Translator (free version)
Technical data
- RF Wireless and WIFI 5 CHANNEL DIMMER
- Can be used as RGBWW, RGBW, RGB, TW or single colour control unit
- Max. Output current: 4A per channel
- Max. Output power at 24VDC: 480W
- With built-in repeater function for high power
- Compatible with all SC-1009 series remote controls
- Can be operated directly with the TUYA App
- IP20 protection rating
- Plastic housing
- Operating temperature range from -20°C to +50°C
- Dimension 145 x 46.5 x 16mm
- 5 years warranty
Product specifications
| Control | TUYA, RF Wireless |
| Product series | SR-1009 |
| Length | 145 mm |
| IP protection | IP20 |
| Height | 16 mm |
| Manufacturer warranty | 5 years |
| Manufacturer | Sunricher |
| Dimming method | PWM |
| Width | 46.5 mm |
| Output current per channel (A) | 4 |
| Connection | Screw terminal |
| Channels | 5 |
| Power | 480 W |
| Input voltage range (VDC) | 12-24 V |
| Application | RGB, RGBW, RGBWW, Single Color, Tunable white |
| Output voltage range (VDC) | 12-24 V |
