About the product

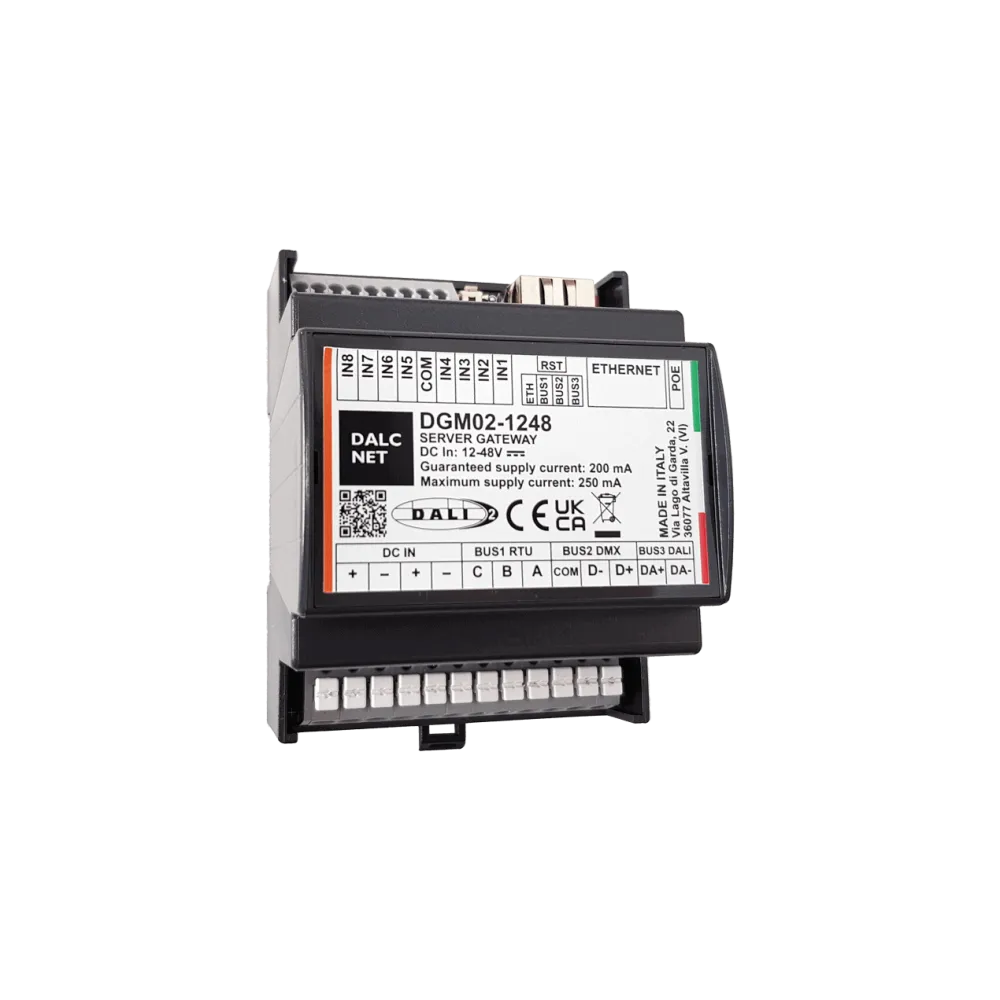

The DGM02 unit enables real-time protocol conversions and data acquisition between different sources. It can acquire data from both the Ethernet network and one or more receiving buses and convert this data in real time to the Ethernet network and the bus systems configured as transmitting buses.
The 512 channels of the buffer are transmitted entirely via the DMX512A bus. On the DALI bus, the first 64 channels of the buffer are transmitted as 64 short addresses, the first 16 channels as 16 group addresses or 1 channel as a broadcast to the nodes that change the value.
In addition, special Telnet commands can be used to control DALI DT4 / DT6 / DT8-RGBW / DT8-TW devices.
The first 480 channels of the buffer are transmitted via the MODBUS RTU bus to up to 80 Modbus devices (ID 1.80), each device using 6 registers.
With this unit and any control device that has an Ethernet connection, a total of 512 brightness levels can be controlled and various devices (DMX512A, DALI, MODBUS) can be controlled without detailed knowledge of the respective protocols.
- Input: 12-48 V
- Multiple lighting BUS control (DALI DMX Modbus)
- Multiple ethernet protocols input (Telnet Artnet sACN Modbus TCP)
- DALI2.0 certified
- Integrated DALI PSU
- DT8 command supported
- DALI commissioning capabilities
- Standalone web interface
- Dinrail mounting four modules
Technical data
SERVER-GATEWAY
INPUT: 12-24-48 Vdc
ETHERNET BUS: 10/100Mbit
MODBUS BUS: Range baud rate 9600 – 250000
DMX BUS: 1 universe DMX512
DALI BUS: 1 DALI line – integrated DALI bus power supply unit
WARRANTY: 5 years
Product specifications
| Control | MODBus, DALI2, DALI, DALI DT8, DMX |
| Input voltage range (VDC) | 12-48 V |
| Connection | Push-in terminal |
| Width | 92 mm |
| Manufacturer | DalcNet |
| Manufacturer warranty | 5 years |
| Height | 62 mm |
| Length | 72 mm |
