Item ID: 2408

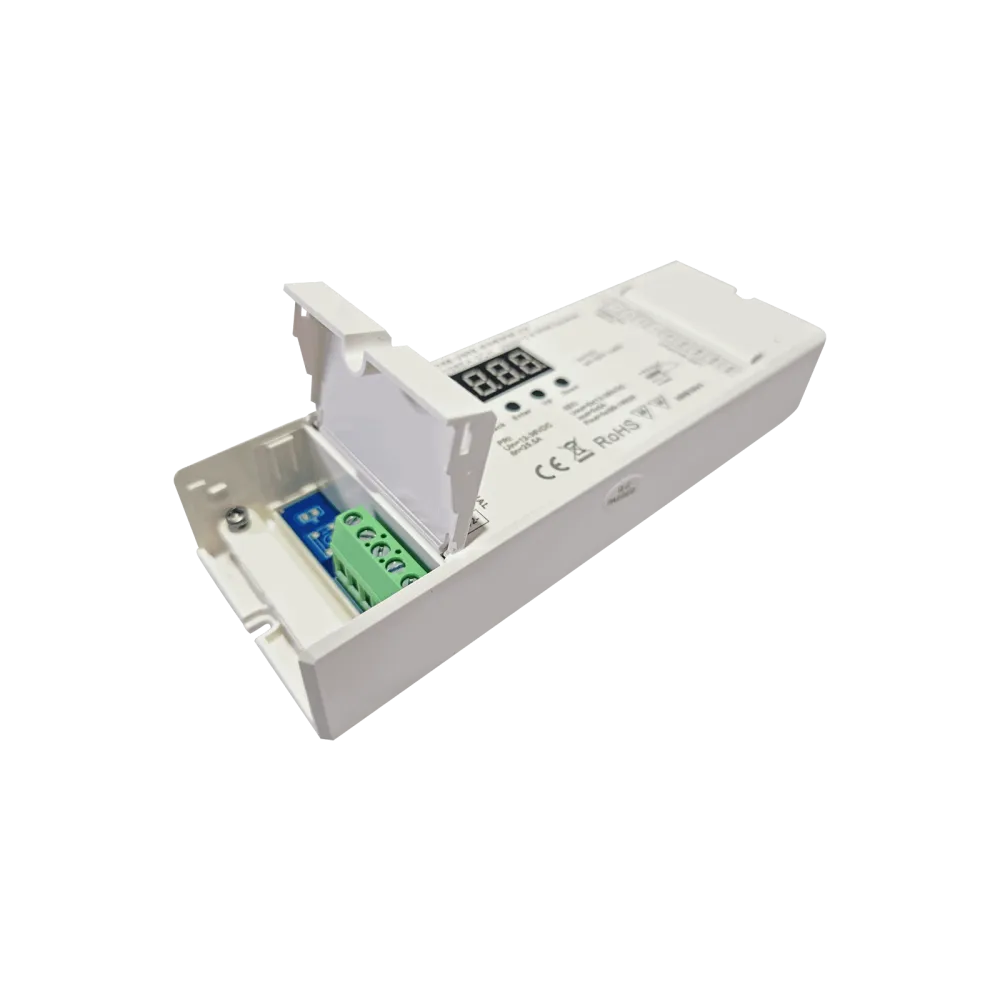

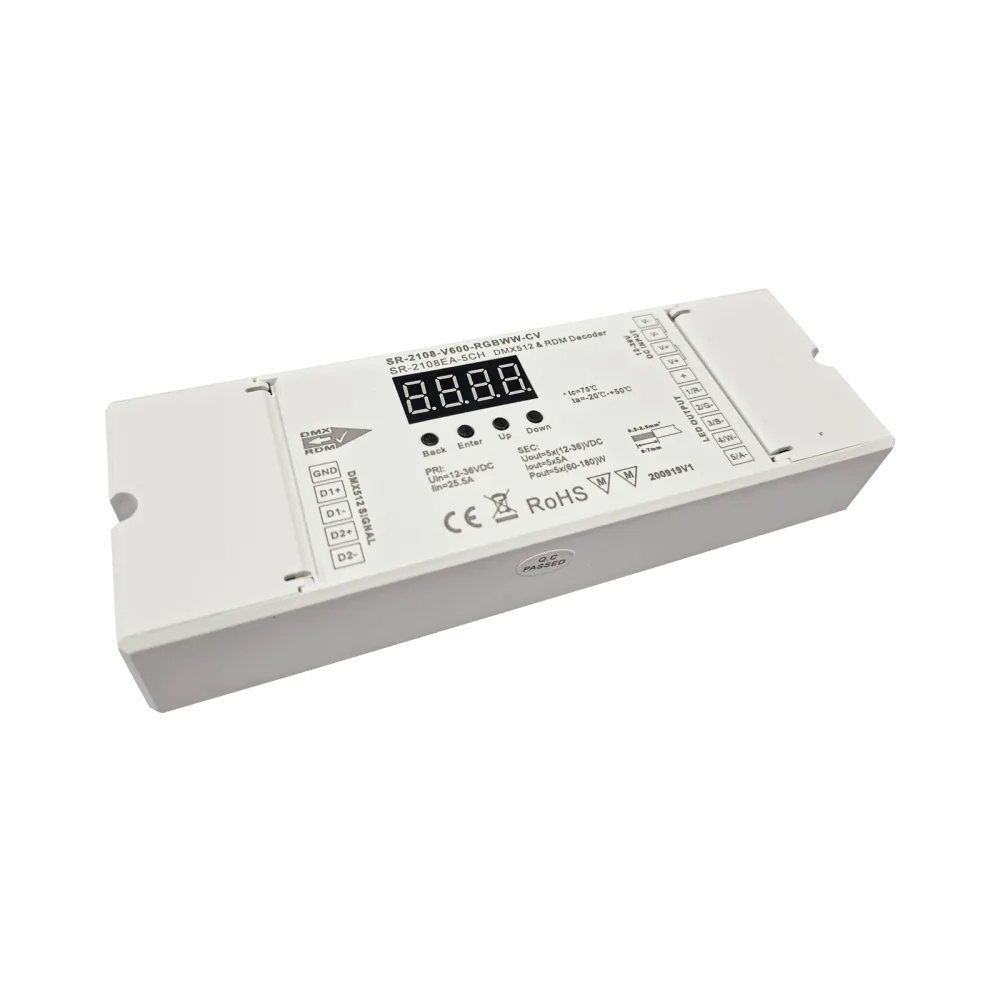

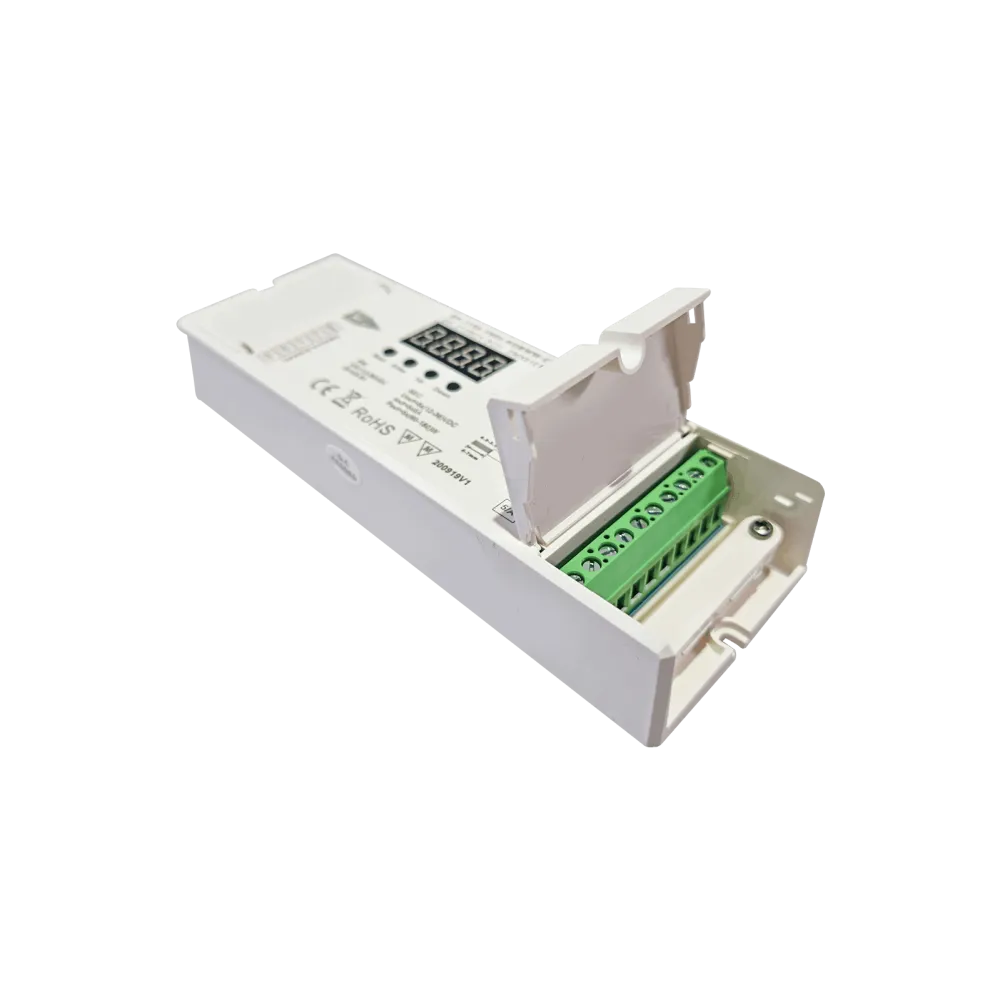

5 channel DMX512 RDM LED dimmer, RGBWW, constant voltage 12-36VDC, max. 900W
About the product
SR-2108-V600-RGBW-CV with RDM function, adjustable PWM resolution/frequency and DMX512 interface is ideal for operating RGBW constant voltage LED applications such as LED strips.
Control
- DMX512 RDM
Application
- RGBW, RGB, Tunable White, Single Color
Dimming range
The load-independent dimming range is 0.1% to 100% of the connected load.
Technical data
- DMX512 RDM 5 Channel Dimmer
- RDM function allows communication between master and decoder
- Standard DMX512 compliant control interface, allows free setting of DMX address and displays address via digital numeric display.
- PWM frequency adjustable between 500Hz and 30kHz
- Compatible with standard DMX systems
- Digital DMX address display
- Gamma value of dimming curve adjustable between 0.1-9.9
- IP20 protection class
- Plastic housing
- Operating temperature range from -20°C to +50°C
- Dimension 170 x 59 x 29mm
- 5 years warranty
Product specifications
| Control | DMX |
| Product series | SR-2108 |
| Length | 170 mm |
| IP protection | IP20 |
| Height | 29 mm |
| Manufacturer warranty | 5 years |
| Dimming method | PWM |
| Width | 59 mm |
| Output current per channel (A) | 5 |
| Connection | Screw terminal |
| Channels | 5 |
| Power | 900 W |
| Input voltage range (VDC) | 12-36 V |
| Application | RGB, RGBW, RGBWW, Single Color, Tunable white |
| Output voltage range (VDC) | 12-36 V |
