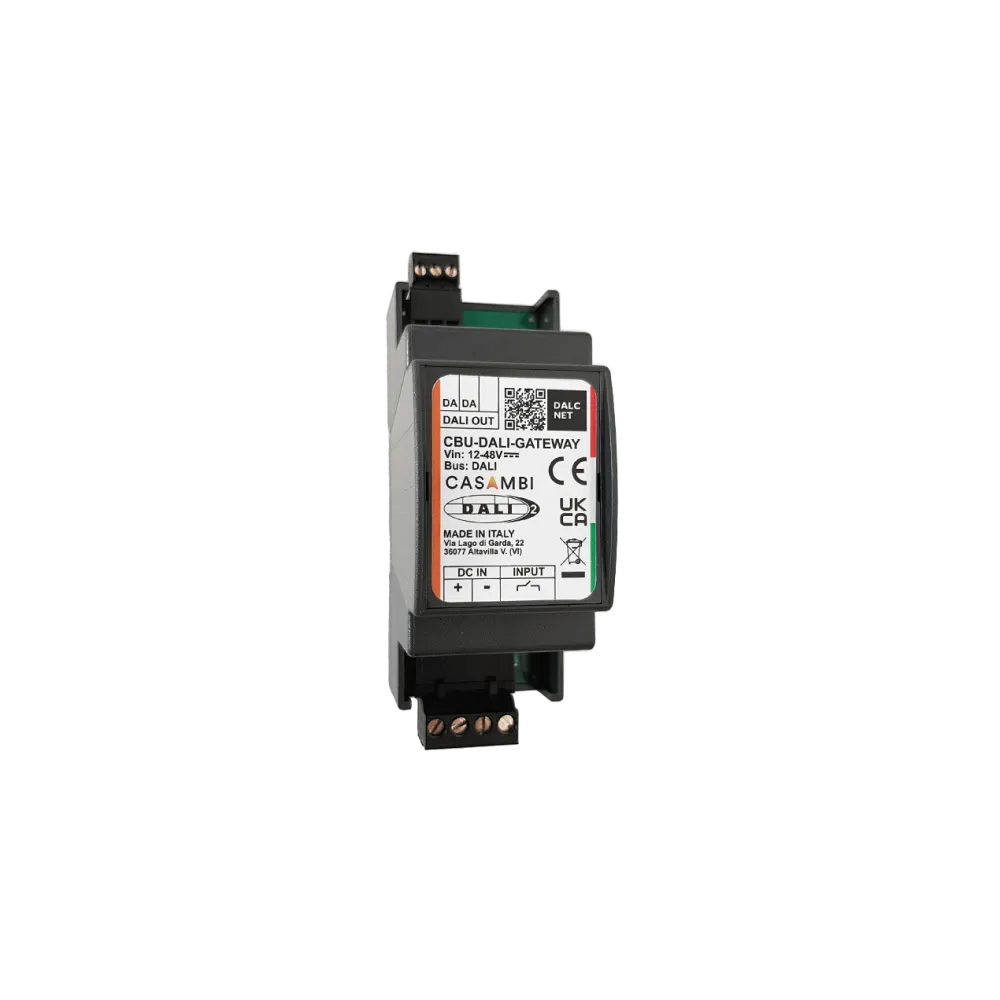

About the product
The device receives the command signal from the Casambi APP and depending on the fixture set sends the signal in a predetermined sequence of DALI addresses.
See pag.7 for the DALI Addresses map.
With the "CBU DALI GATEWAY" profile, the device receives commands from an external DALI Master and sends control signals to the Casambi lamps of the network to which it is associated. Each Casambi lamp has a DALI address.
In the case of Casambi Tunable White or RGB/RBGW devices, these will be recognized by the DALI Master as DALI DT8.
Technical data
CONVERTER+CASAMBI+DALI+GATEWAY
Input: DC 12-24-48 Vdc
DALI2 certified
Command: CASAMBI APP
Local control programmable from CASAMBI APP: Button no. 1 Normally open
Casambi signal to DALI protocol converter and vice versa
Possibility to control devices with DALI control via CASAMBI APP
Possibility of addressing DALI devices
Extended temperature range
100% function test
5 years warranty
Product specifications
| Control | DALI2, DALI, Casambi, Low Voltage Push |
| Length | 92 mm |
| IP protection | IP20 |
| Height | 62 mm |
| Manufacturer warranty | 5 years |
| Manufacturer | DalcNet |
| Width | 36 mm |
| Connection | Screw terminal |
| Channels | 1 |
| Input voltage range (VDC) | 12-48 V |
| Output voltage range (VDC) | 12-48 V |
