About the product

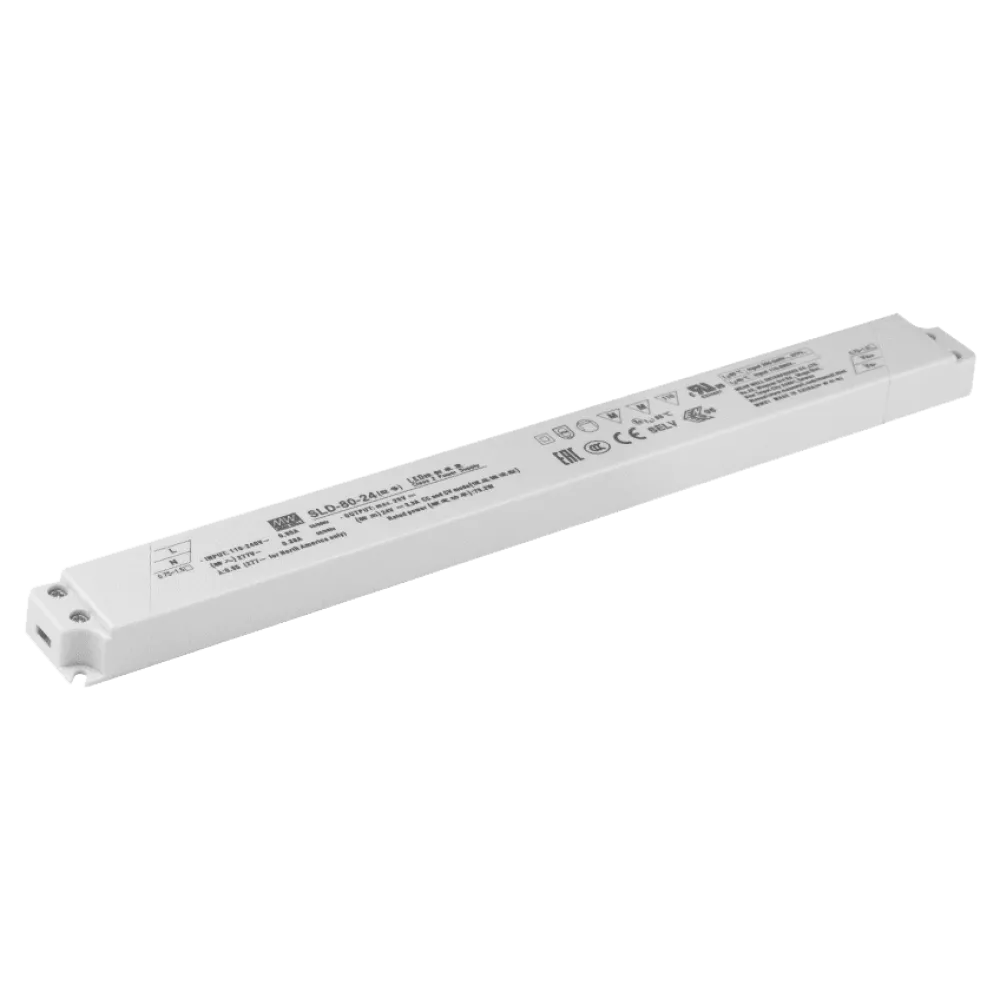

SLD-80 series is an 80W AC/DC LED driver with low profile and linear housing.
Technical data
- Input 110 to 350Vac
- Constant Voltage + Constant Current mode output
- Slim design with 30mm width and 16.8mm height
- Class II power unit, no FG
- Easy installation by spring terminal blocks
- Dimension 320 x 30 x 16.8mm (L x W x H)
- Manufacturer Mean Well
Product specifications
| Output voltage (VDC) | 24 V |
| Manufacturer warranty | 3 years |
| Product series | SLD |
| Input voltage range (VAC) | 110-277 V |
| Connection | Push-in terminal |
| IP protection | IP20 |
| Height | 16.8 mm |
| Width | 30 mm |
| Length | 320 mm |
| Application | Single color |
| Control | Non-dimmable |
| Channels | 1 |
| Output current | 3.3 A |
| Power | 80 W |
| Manufacturer | MEAN WELL |
