About the product

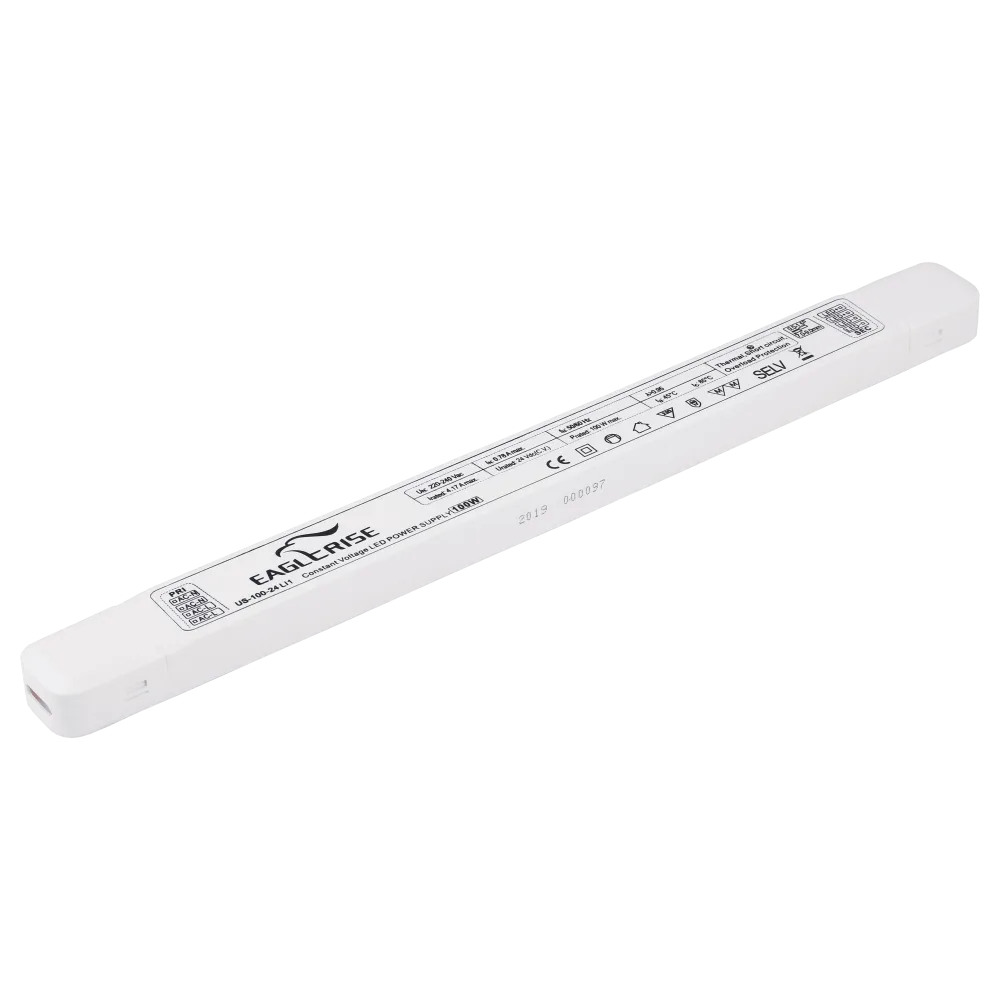

Ultra compact 100W LED driver for 24V applications. Perfect fitting for aluminium profiles and LED flexstrips. Approved for furniture installations.
Technical data
- Input voltage 176 – 264Vac; 176 -250Vdc
- Ultraflat design with only 18mm height
- Life Time >44’000 hours
- Operating temperature -10°C bis +45°C
- Dimensions 365 x 30 x 18mm (L x W x H)
- 5 years warranty
- Manufacturer: Eaglerise
Product specifications
| Output voltage (VDC) | 24 V |
| Manufacturer warranty | 5 years |
| Product series | US |
| Input voltage range (VAC) | 200-240 V |

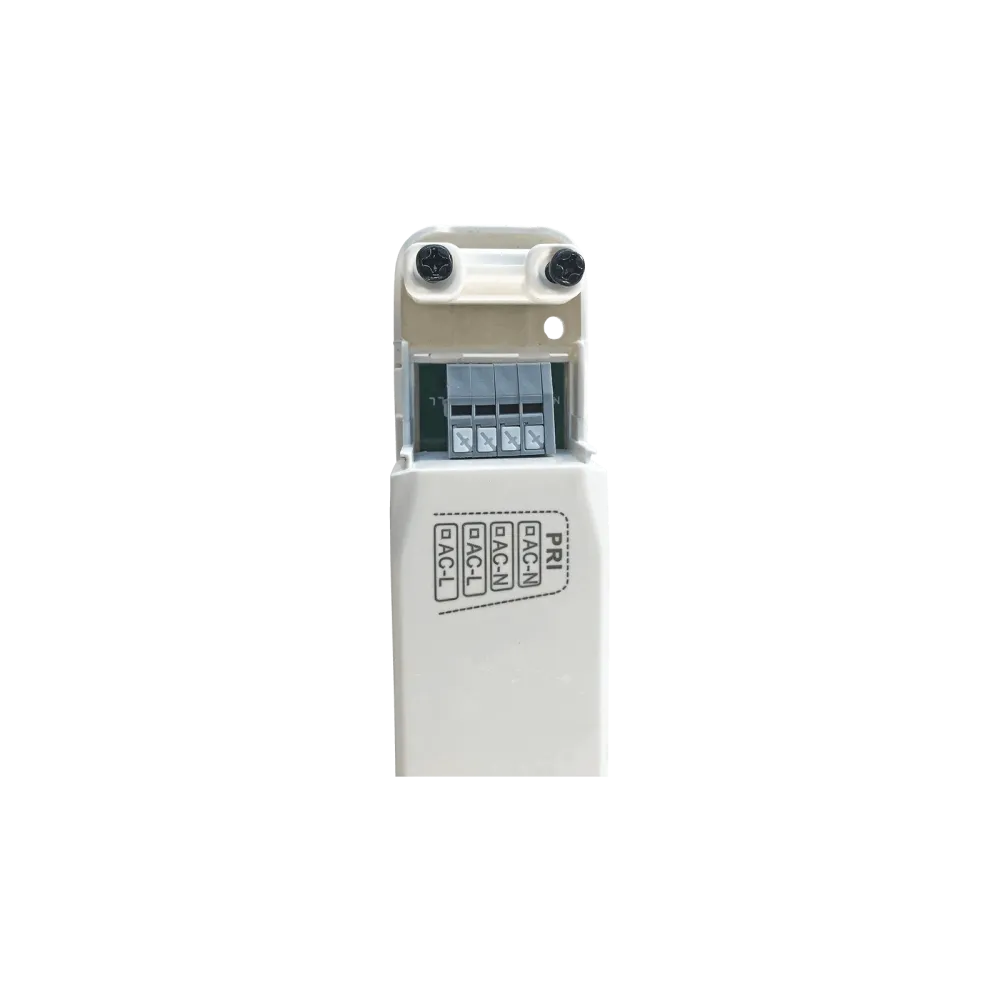

| Connection | Push-in terminal |
| IP protection | IP20 |
| Height | 18 mm |
| Width | 30 mm |
| Length | 365 mm |
| Application | Single color |
| Control | Non-dimmable |
| Channels | 1 |
| Output current | 4.17 A |
| Power | 100 W |
| Manufacturer | Eaglerise |
