75W DALI DT8 DIMMABLE LED DRIVER

Delivery at your place between May 20 and Jun 24 2025

Add to cart

About the product

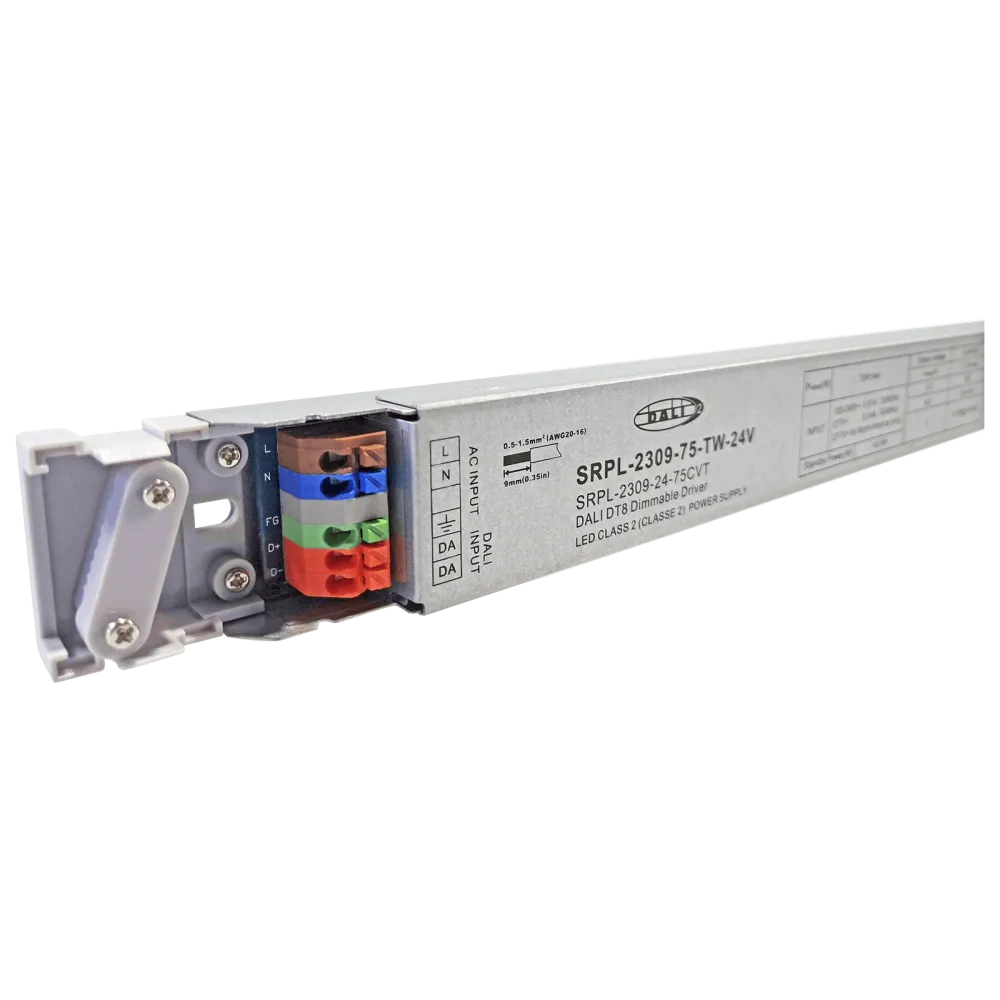

SRPL-2309-75-TW-24V with PWM output and integrated DALI DT8 interface is ideal for operating Tunable White constant voltage LED applications such as LED strips.

Control

DALI DT8

Application

Tunable White

Dimming range

The load-independent dimming range is 0.1% to 100% of the connected load.

Dimming method: PWM, 1.5kHz

Technical data

DALI DT8 Dimmable LED driver
2 channels constant voltage output 24VDC, total output power up to 75W
Output current max.: 3.12A
Class 2 power supply, full isolated plastic case
High power factor and efficiency
PF > 0.96, Efficiency > 86%
Low standby power 0.5W
Built-in DALI interface, DALI DT8 device
Complies to IEC 62386-209:2011
DALI DT8 device to control Warm White and Cool White output via a single DALI address
Color temperature adjustment according to DALI specifications of Device Type 8, Color Type Tc.
Compatible with universal DALI masters that support DT8 commands
IP20 rating, suitable for indoor LED lighting applications
Dimension: 486 x 30.7 x 20.9mm
5 years warranty

Product specifications

Output voltage (VDC)	24 V
Product series	SRPL
Input voltage range (VAC)	100-277 V
Connection	Push-in terminal
IP protection	IP20
Height	20.9 mm
Width	30.7 mm
Length	486 mm
Application	Tunable white
Dimming method	PWM
Control	DALI, DALI DT8
Channels	2
Output current	3.12 A
Power	75 W
Manufacturer warranty	5 years
