About the product

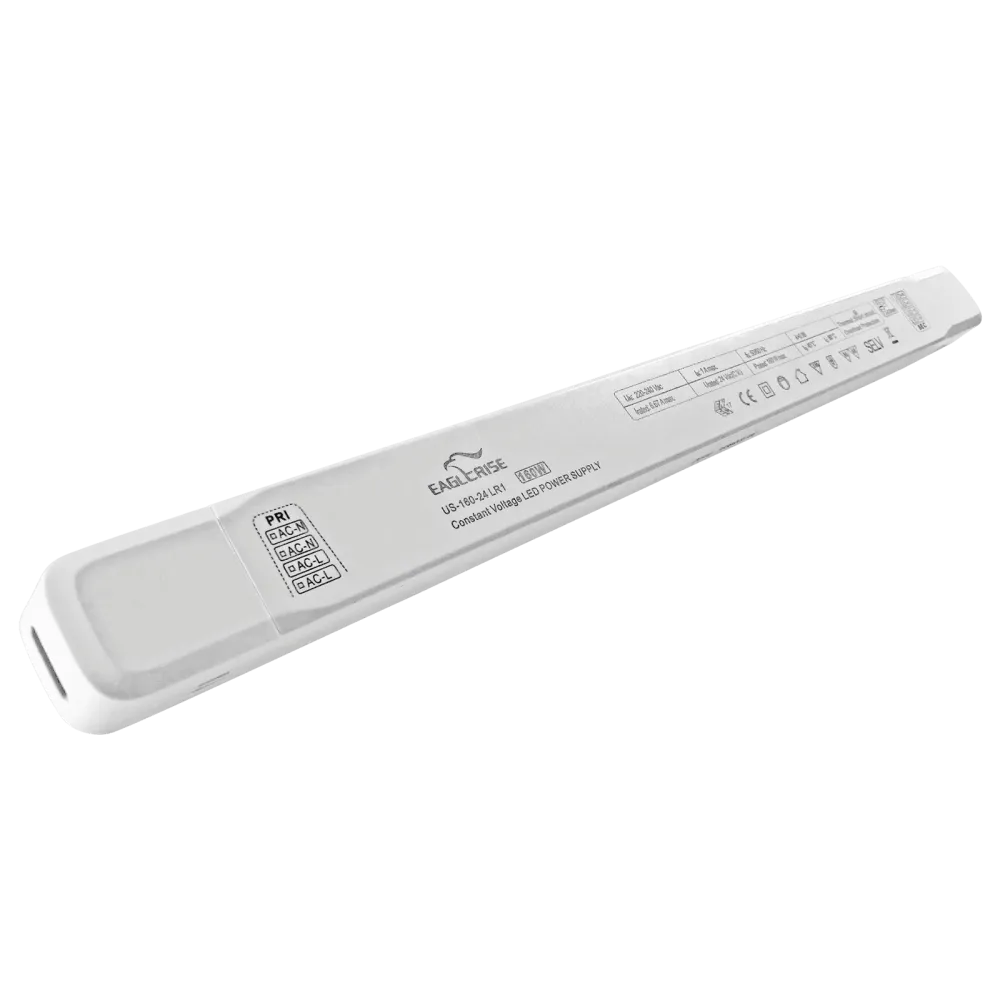

Ultra compact 160W LED driver for 24V applications. Perfect fitting for aluminium profiles and LED flexstrips. Approved for furniture installations.
Technical data
- Ultraflat design with only 21.5mm height
- Life Time >50’000 hours
- Operating temperature -20°C bis +45°C
- Dimensions 395 x 30.5 x 21.5mm (L x W x H)
- 5 years warranty
- Manufacturer: Eaglerise
Product specifications
| Output voltage (VDC) | 24 V |
| Manufacturer | Eaglerise |
| Manufacturer warranty | 5 years |
| Product series | US |
| Input voltage range (VAC) | 200-240 V |

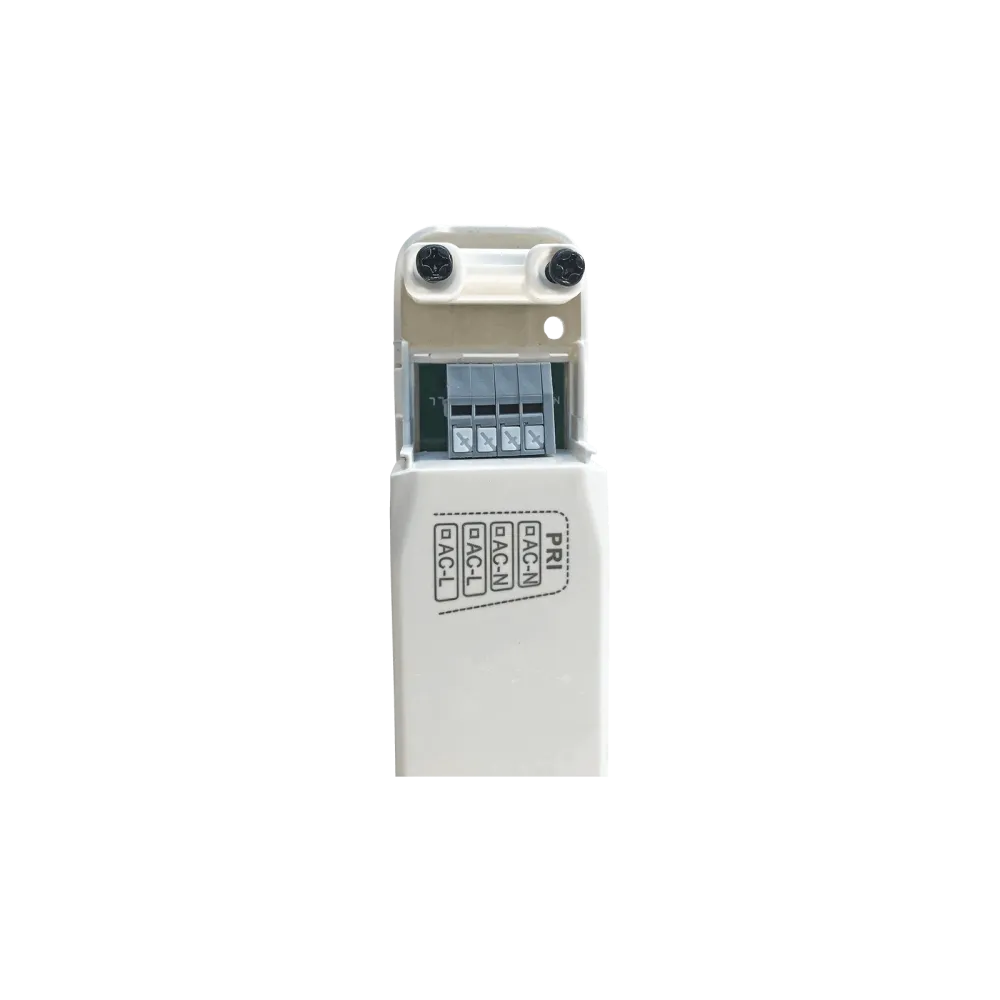

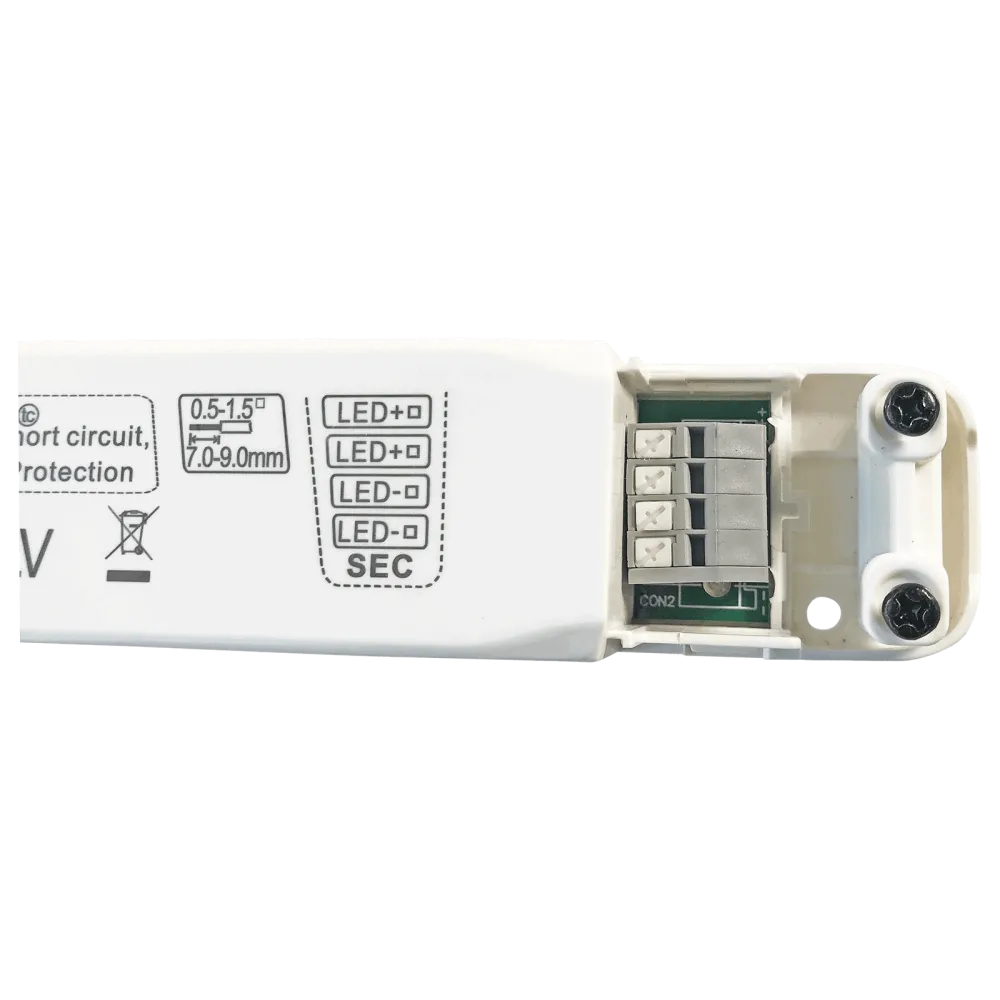

| Connection | Push-in terminal |
| IP protection | IP20 |
| Height | 21.5 mm |
| Width | 30.5 mm |
| Length | 395 mm |
| Application | Single color |
| Control | Non-dimmable |
| Channels | 1 |
| Output current | 6.66 A |
| Power | 160 W |
| Efficiency | 92.00% |
