About the product

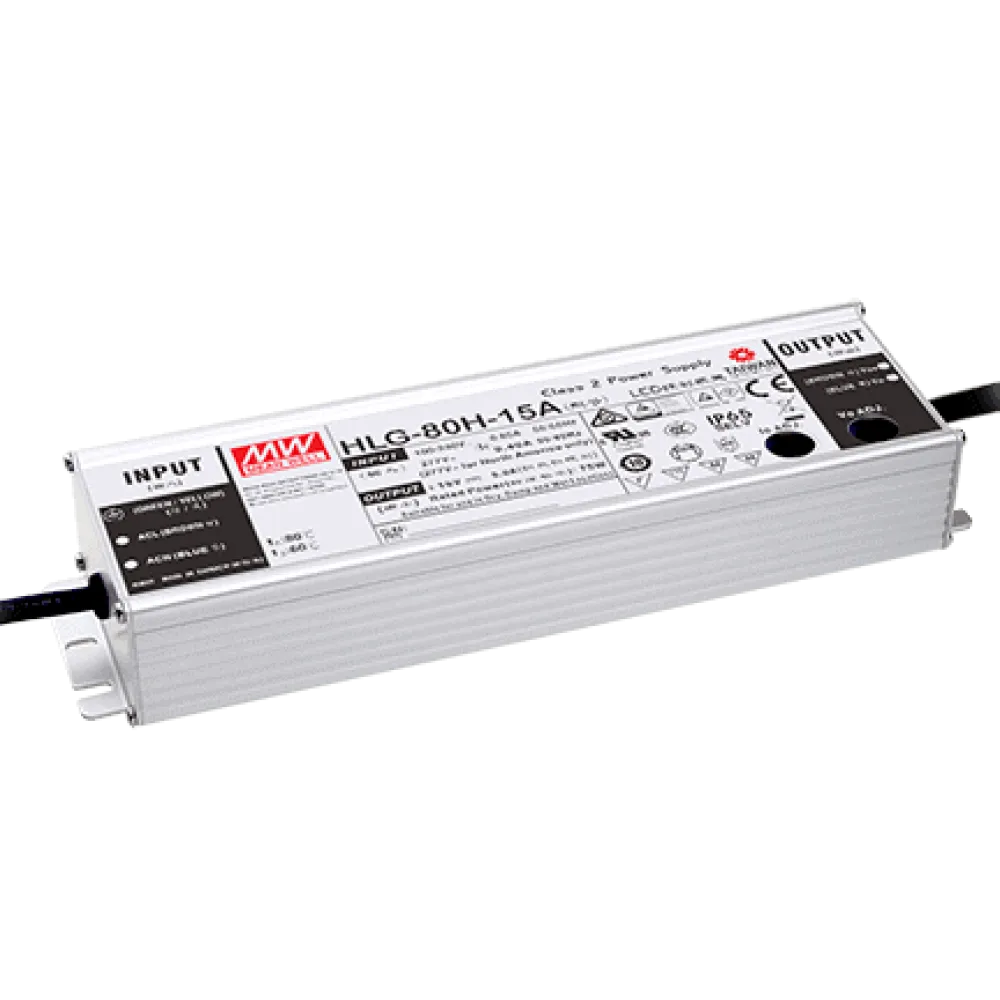

80W LED Driver CV+CC 24V/3.4A
Technical data
- Universal AC input 90 to 305Vac
- CC/CV circuit for constant voltage and constant current applications
- Output voltage and constant current level can be adjusted through internal potentiometer
- IP65 for indoor and outdoor installations
- High reliable driver with long lifetime
- Fully encapsulated metal housing
- Suitable for dry, damp, and wet location
- Type HL LED driver for use in class I, division 2 hazardous location luminaires
- Meet 4kV surge immunity level (IEC61000-4-5)
- Dimension 195.5 x 61.5 x 38.8mm (L x W x H)
- 7 years warranty
- Manufacturer MEAN WELL
Product specifications
| Output voltage (VDC) | 24 V |
| Manufacturer warranty | 7 years |
| Product series | HLG |
| Input voltage range (VAC) | 100-277 V |
| Additional functions | Current/voltage setting on unit |
| Connection | Cable |
| IP protection | IP65 |
| Height | 38.8 mm |
| Width | 61.5 mm |
| Length | 195.6 mm |
| Application | Single color |
| Control | Non-dimmable |
| Channels | 1 |
| Output current | 3.4 A |
| Power | 80 W |
| Manufacturer | MEAN WELL |
