About the product

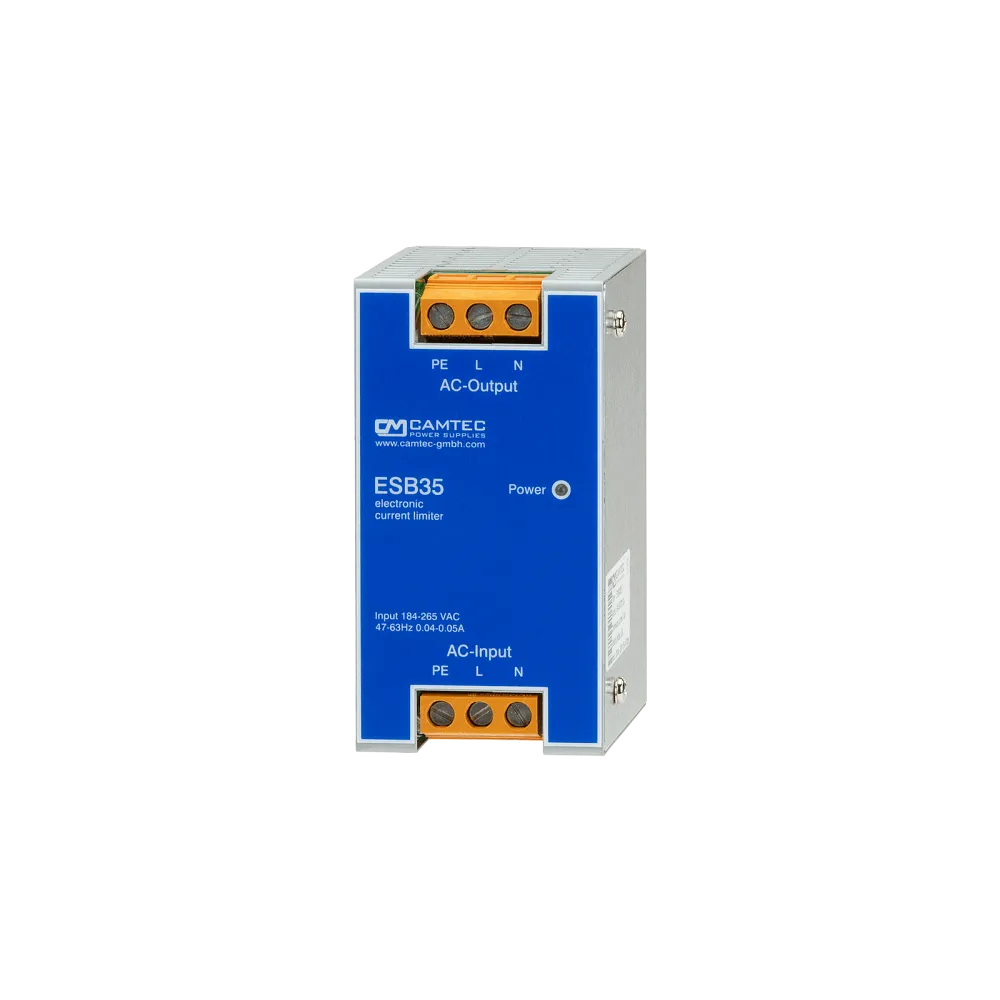

The ESB00351-series has been engineered as totally professional inrush limiter. An ESB00351 provides high recommended and trouble free operation with capacitive and half inductive loads. The ESB00351 is optimized for LED-applications, complex machine building and for the automation. As the ESB00351 features a built in power supply, existing equipment can be upgraded very simple.
Technical data
- Input 230Vac, 30A cont. current
- Loadcapacity 10.000uF
- DIN Rail TS35mm
- Screw terminals 0, 5 … 16mm2/AWG22-6
- lntegrated power supply
- lntegrated bypass-relay
- Low valtage detection
- IP20 metal housing
- Power LED
- Manufacturer: Camtec
Product specifications
| AC current | 30 A continuous |
| Inrush current limiting | 35 A |
| Manufacturer | Camtec |
| Maximum capacitive load | 10000 µF |
| Input voltage range (VAC) | 184-264 V |
| AC mains frequency | 50/60 Hz |
