About the product

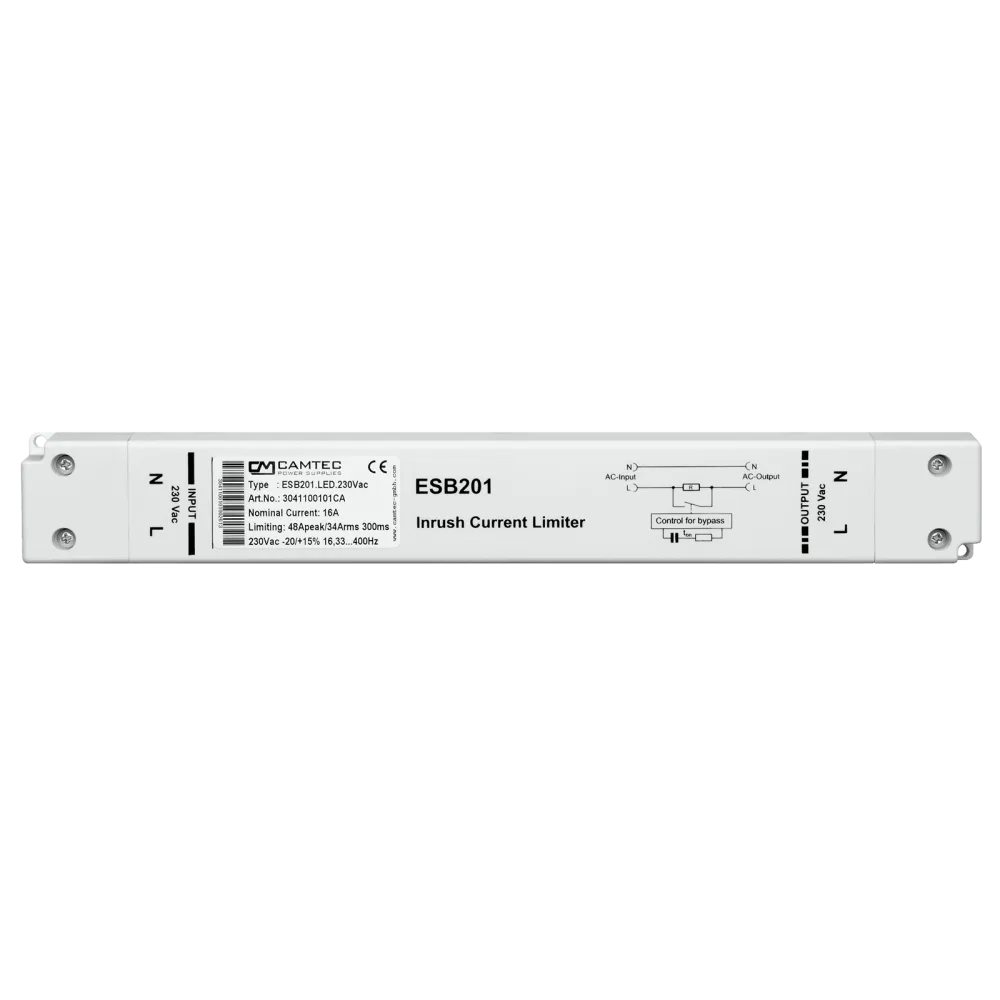

The Camtec ESB is a budget-priced inrush peak current limiter for high loads in LED applications, complex automation systems and in the machine building. The ESB101 offers high recommended and interference free operation with both, the inductive and the capacitive load. It is simple to integrate into existing equipment. The ESB101 is selfpowering and does not require an external power supply.
Technical data
- Peak-/ R.M.S. current limiter
- 184-265Vac, 16A continuous
- DIN TS35mm DIN-Rail
- Wall mount (universal housing)
- Springtypeterminals 0,5-6mm2 /21-10AWG
- lntegrated bypass relay
- Capacitive Ioad 6000uF
- lntegrated temperature protection
- IP20 UL94V-O housing DIN43880
- for DIN NDE0603 cutout box
- Manufacturer: Camtec
Product specifications
| AC current | 16 A continuous |
| Inrush current limiting | 48 A |
| Manufacturer | Camtec |
| Maximum capacitive load | 6000 µF |
| Input voltage range (VAC) | 184-264 V |
| AC mains frequency | 16.33-440 Hz |
