About the product
ICL-16 series is a 16A AC inrush current limiter, which can be used to reduce the temporary peak current caused by turning on AC power or capacitive loads. Adding the inrush current limiter after the AC circuit breaker can effectively reduce the chance to falsely trip AC circuit breaker when starting AC loads, which increases the overall reliability of the system.
Technical data
- Suppresses 23A peak current and 16A continuous current
- 180~264VAC input
- Built-in thermal fuse and bypass relay
- Operation temperature -30~+70℃

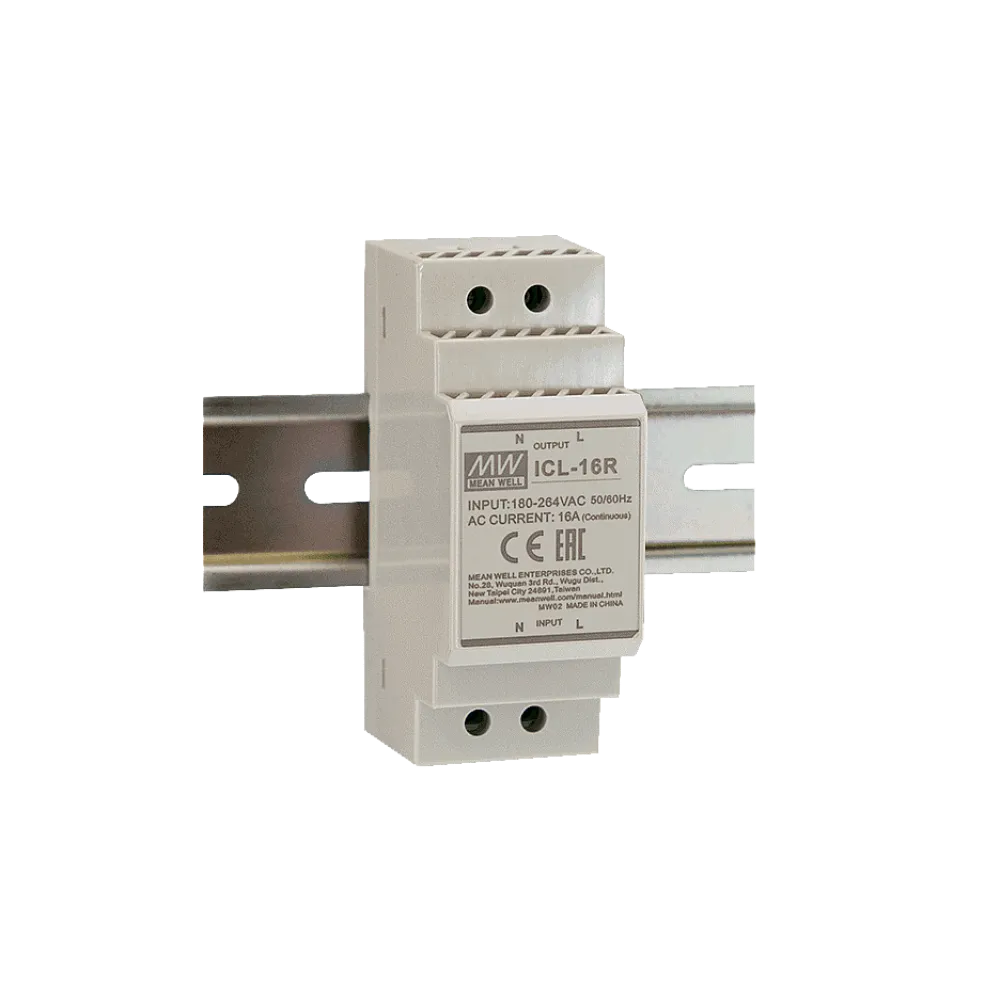

- DIN rail type ICL-16R, can be installed on TS-35/7.5 or 15 DIN rails
- Dimensions (WxHxD): 35x90x54.5mm
- Manufacturer: MEAN WELL
Product specifications
| AC current | 16 A continuous |
| Inrush current limiting | 23 A |
| Manufacturer | MEAN WELL |
| Maximum capacitive load | 1500 µA |
| Input voltage range (VAC) | 180-264 V |
| AC mains frequency | 50/60 Hz |
