About the product

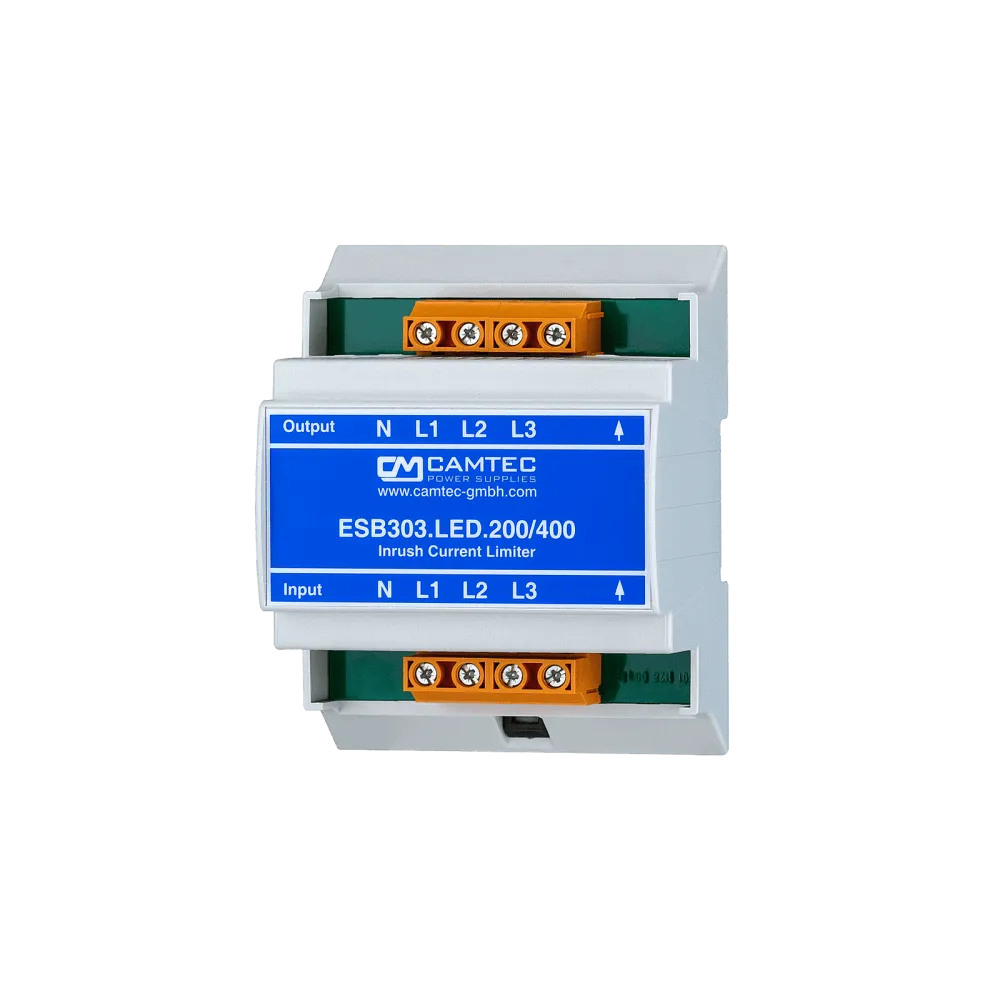

Use ESB303 inrush current limiter either as a 3-channel-230V-ESB or to protect 400Vac networks. No simple NTC-solution! It allows to reduce cabling sections and to install fast circuit breakers. 100% protection from tripping pre-installed circuit breakers or burning relay and line switch contacts.
Technical data
- 3×200-240Vac or 400Vac
- DIN TS35mm DIN-Rail
- Wall mount (universal housing)
- Spring-type terminals 0,5-6mm² / 21-10AWG
- Integrated bypass relay
- Capacitive load 6.000uF per phase conductor
- Integrated over temperature protection
- IP20 UL94V-0 housing DIN43880 for DIN/VDE0603 cutout box
Product specifications
| AC current | 16 A continuous |
| Inrush current limiting | 48 A |
| Manufacturer | Camtec |
| Maximum capacitive load | 6000 µF |
| Input voltage range (VAC) | 184-264 V |
| AC mains frequency | 16.33-440 Hz |
Data sheets
