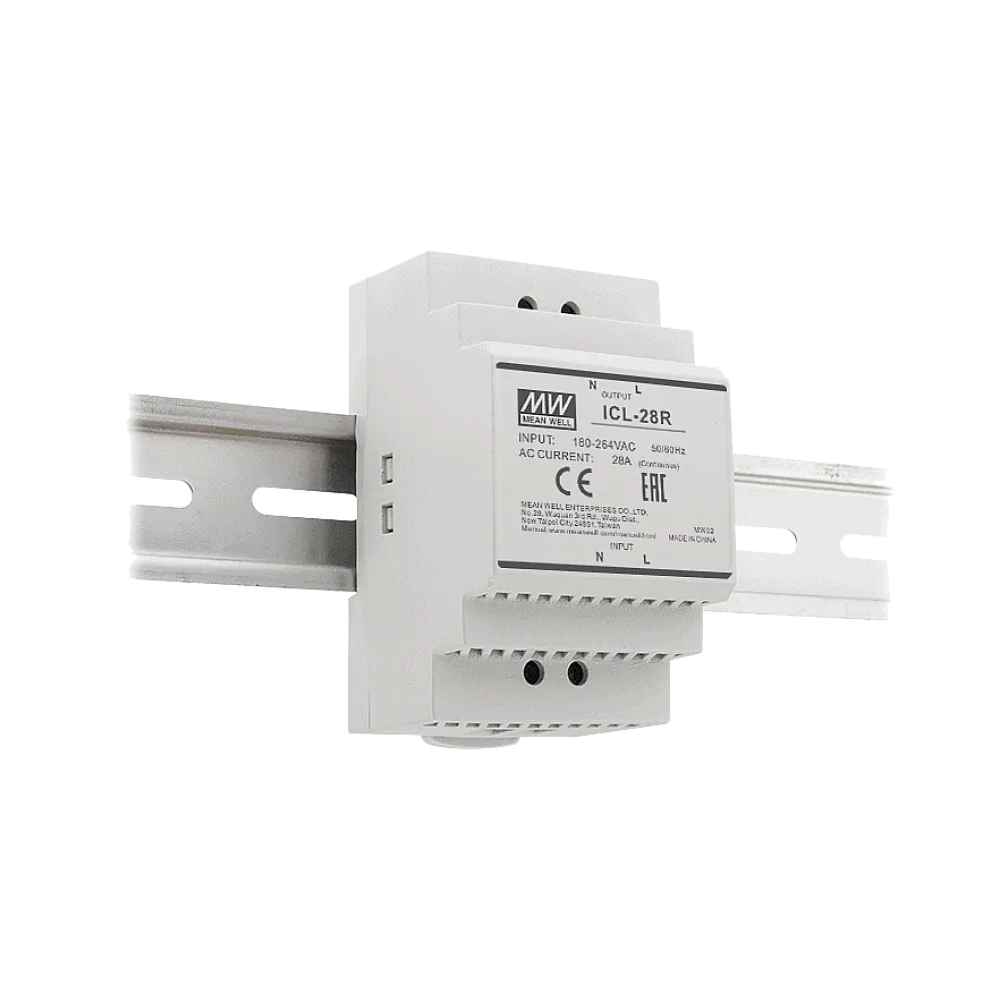

About the product
The ICL-28 is a 28A inrush current limiter that can be used to reduce the high starting currentdue to capacitive load or inductive causing the circuit breaker to be false triggered. Several power supplies can be installed on the same AC line after the implementation of an ICL-28.
Technical data
- 48A inrush limiting current, 28A continuous
- 180~264VAC input
- Integrated thermal protection and bypass relay
- -30~+70℃ wide working temperature
- Operating altitude up to 5000m
- Overvoltage category III (OVCIII)
- DIN rail mount ICL-28R, suitable for installation on TS-35/7.5 or 15 DIN rails
- (W x H x D): 52.5 x 90 x 54.5mm
- Manufacturer: MEAN WELL
Product specifications
| AC current | 28 A continuous |
| Inrush current limiting | 48 A |
| Manufacturer | MEAN WELL |
| Maximum capacitive load | 6000 µF |
| Input voltage range (VAC) | 180-264 V |
| AC mains frequency | 50/60 Hz |
