About the product

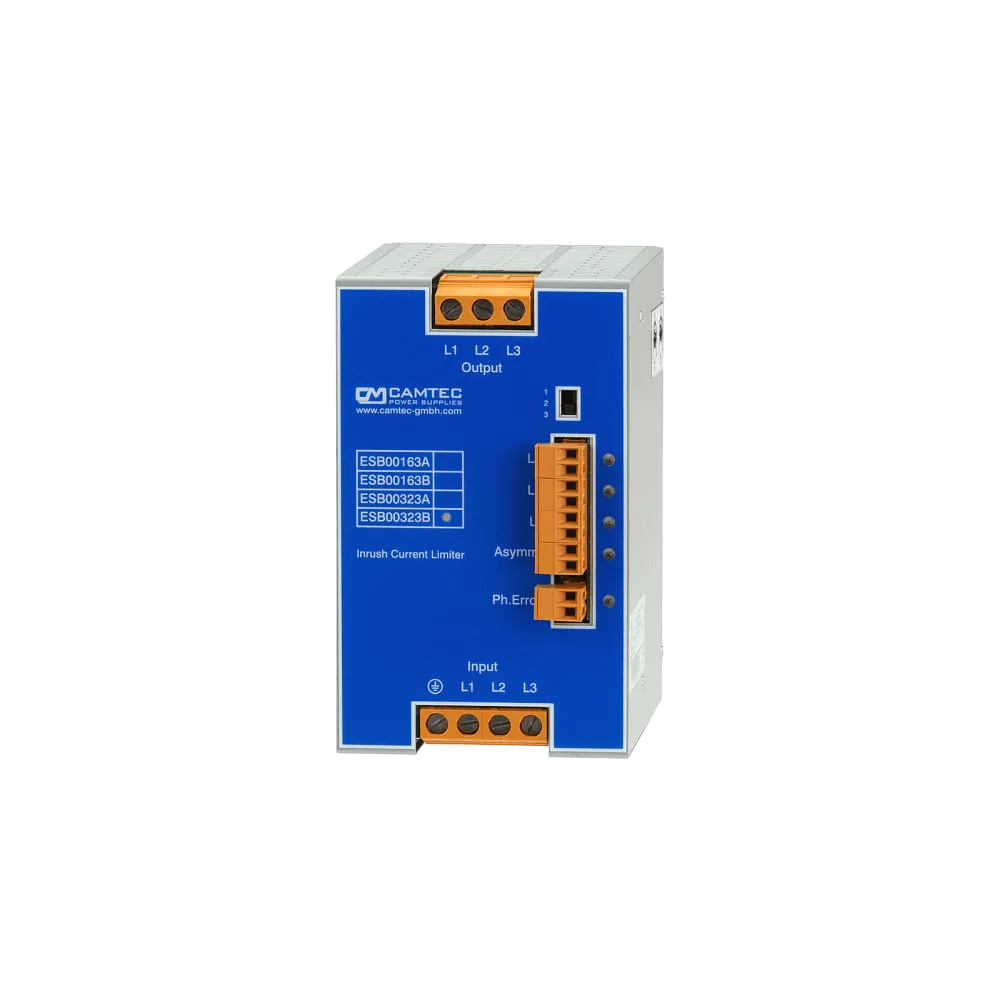

The Camtec ESB00163B-Series is a budget-priced inrush peak current limiter for high loads in LED-applications, complex automation systems and in the machine building. The ESB offers high recommended and interference free operation with both, the inductive and the capacitive load. It is simple to integrate into existing equipment. The ESB is selfpowering and does not require an external power supply.
Technical data
- Peak- / RMS Value Limiter
- lntegrated Phase Control Circuit
- 200/400/500Vac 3PH 16N32A nominal Voltage
- DIN TS35mm Rail
- Federzugklemmen 0,5 … 16mm2
- lntegrated Bypass-Relay
- Capacitive Load 2.000uF
- Built-ln Temperature Control Circuit
- IP20 Housing
- Manufacturer: Camtec
Product specifications
| AC current | 3x16 A continuous |
| Inrush current limiting | 3x22.6 A |
| Manufacturer | Camtec |
| Maximum capacitive load | 2000 µF |
| Input voltage range (VAC) | 170-460 V |
| AC mains frequency | 50/60 Hz |
