About the product

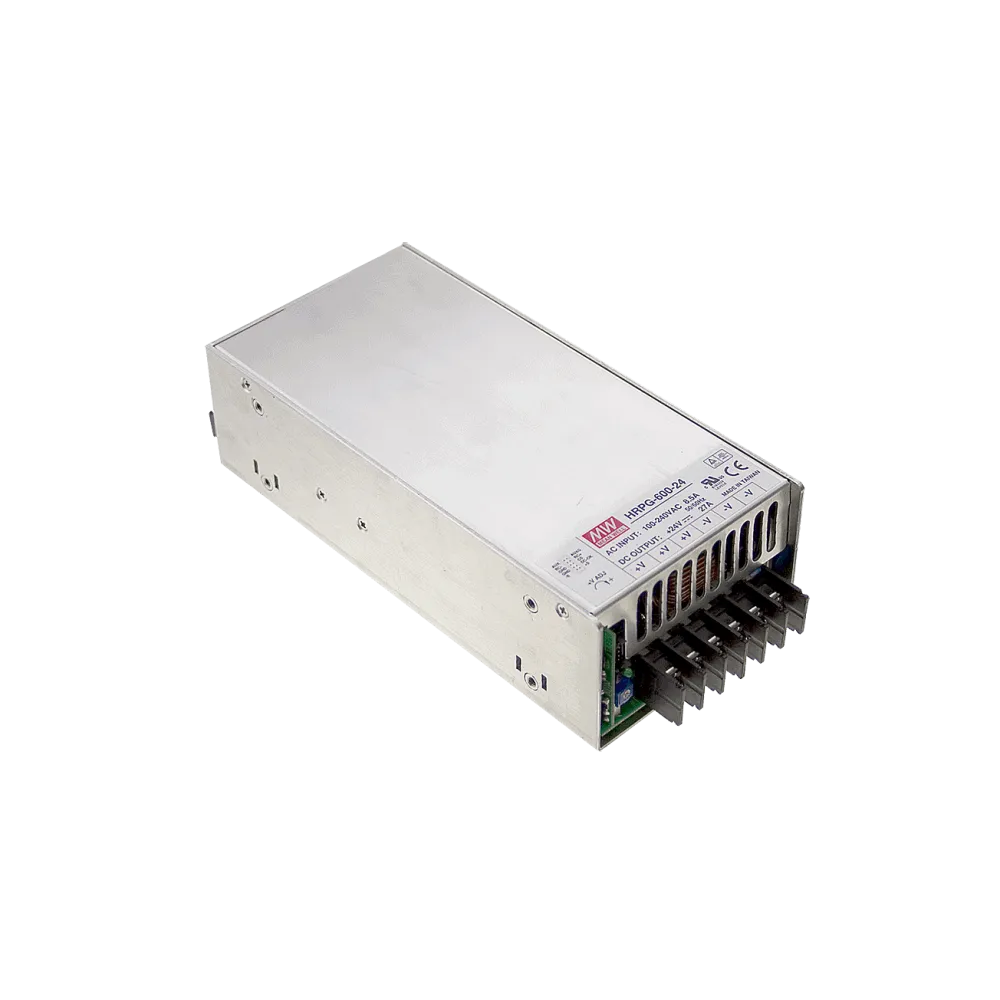

HRP-600N3 can deliver 3 times the power at short notice. This allows high starting currents to be covered when starting motors or electromechanical loads.
Technical data
- Input voltage 85 to 264Vac
- Remote sense function
- DC OK signal
- 300% peak power
- Air cooling with integrated fan
- Operating temperature range from -40°C to +70°C
- Withstands surge voltages up to 300Vac for up to 5 sec.
- Approved for operating altitudes up to 5000m
- Dimensions 218 x 105 x 61.5mm (L x W x H)
Product specifications
| Output voltage (VDC) | 12 V |
| Manufacturer warranty | 5 years |
| Manufacturer | MEAN WELL |
| Control signals | Remote sense |
| Status signals | DC OK signal |
| Additional functions | Peak Power |
| Application | ITE/AV |
| Voltage setting range | 10.2-13.8 VDC |
| Height | 61.5 mm |
| Width | 105 mm |
| Length | 218 mm |
| Protection class | Class I |
| Input voltage range (VAC) | 85-264 V |
| Power | 363 W |
| Efficiency | 88.00% |
Data sheets
