About the product

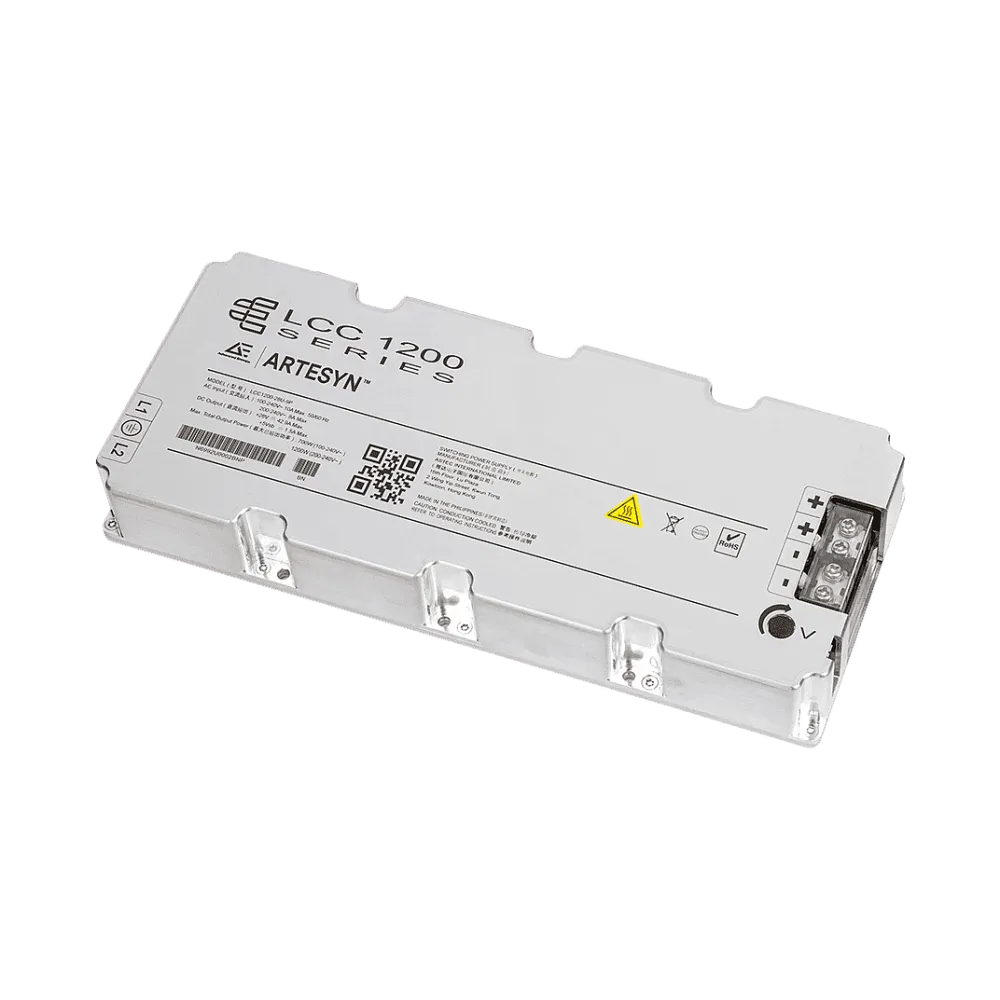

Advanced Energy’s Artesyn LCC1200 series of fully enclosed conduction cooled AC/DC power supplies comprises four models, offering main output voltages of 24V, 28V, 36V or 48Vdc. Each model also provides a 5Vdc standby output, that can supply up to 1.5A. Rated at 1200 Watt, these power supplies incorporate a thermal baseplate and are capable of delivering full output power over a wide operating baseplate temperature range of -40°C…+85°C. For maximum applications flexibility, the main output is adjustable. The 28Vdc model, for example, can be adjusted from 24Vdc to 30Vdc and has a maximum current rating of 42.9A.
Technical data
- 1200Watt full power at elevated temperatures
- Wide operating temperature range -40°C…+85°C with baseplate
- Adjustable outputs
- Remote On/Off
- AC_OK ; DC_OK signals
- 5Vdc standby voltage
- Active current sharing
- Conduction-cooled/fanless
- I2C / PMBus
- ITE Safety
- Active power factor correction
- Optional : IP65 version
Product specifications
| Output voltage (VDC) | 24 V |
| Manufacturer warranty | 2 years |
| Manufacturer | Artesyn |
| IP protection | IP20 |
| Control signals | Remote ON/OFF |
| Status signals | AC OK signal, DC OK signal |
| Additional functions | 5V DC auxiliary output, Parallel connectable, PMBus |
| Application | ITE/AV |
| Height | 40 mm |
| Width | 115 mm |
| Length | 278 mm |
| Protection class | Class I |
| Input voltage range (VAC) | 90-264 V |
| Power | 1200 W |
| Efficiency | 94.00% |
