About the product

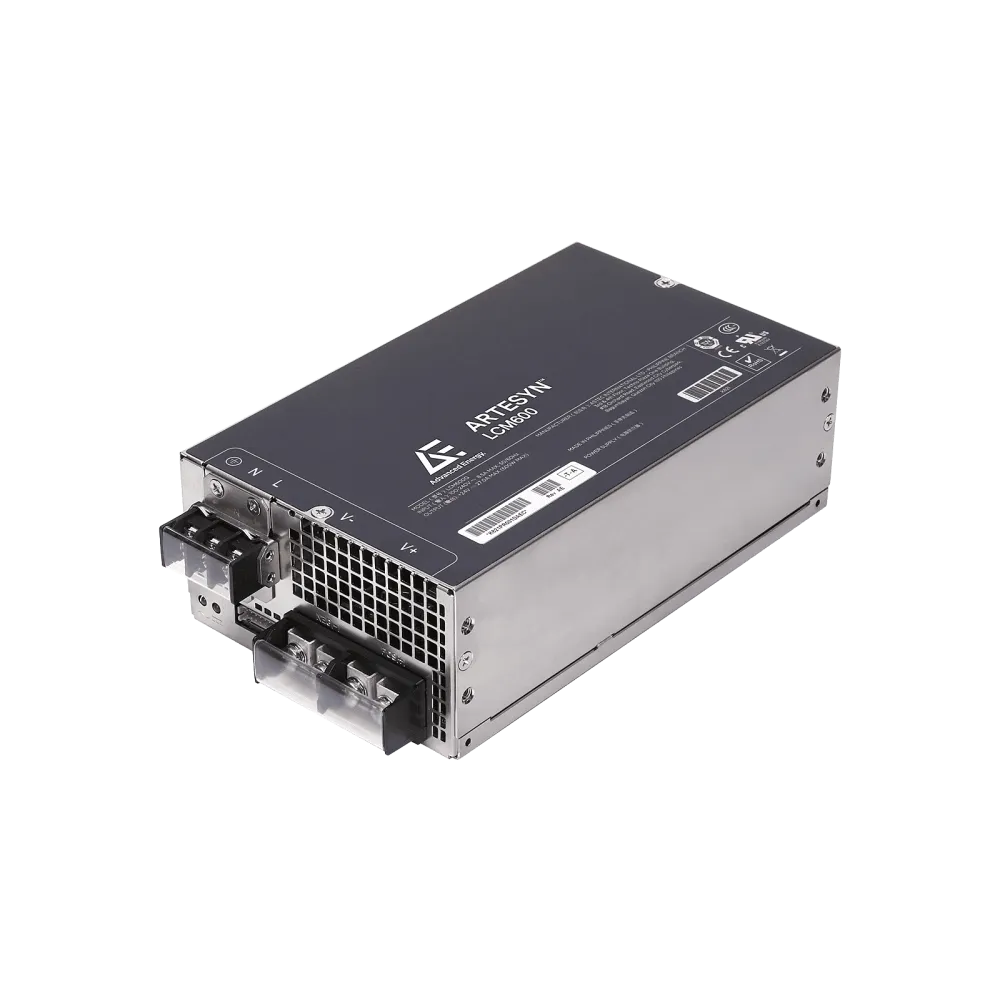

Advanced Energy’s Artesyn LCM-Family 300/600/1000/1500/3000Watt provide for a very wide range of AC/DC embedded power requirement. Offering no Power Derating over the entire Input range 85…264Vac, nominal outputs of 12V, 15V, 24V, 36V or 48Vdc (LCM3000: additionally 18Vdc and 72Vdc) and adjustable voltage of wide ranges from 10.8…52.8Vdc .
Technical data
- 600Watt output power
- Dimensions 190.5 x 114.3 x 60.96mm
- Industrial/Medical safety
- No low line derating
- Operating Temperature -40°C…+70°C with derating
- Option 5Vdc @2A standby
- Efficiency 89%
- Variable speed "Smart Fans"
- DSP controlled front end
- Option Conformal coating
- +/-20% output adjustment range
- Margin programming
- ORing FET
- Option Terminal block input
- Warranty 3 Years
- Manufacturer Artesyn
Product specifications
| Output voltage (VDC) | 12 V |
| Manufacturer warranty | 3 years |
| Manufacturer | Artesyn |
| Control signals | Remote ON/OFF, Remote sense |
| Status signals | AC OK signal, DC OK signal |
| Additional functions | Parallel connectable |
| Application | ITE/AV, Medical |
| Voltage setting range | 9.6-14.4 VDC |
| Height | 60.96 mm |
| Width | 114.3 mm |
| Length | 190.5 mm |
| Protection class | Class I |
| Input voltage range (VAC) | 85-264 V |
| Power | 624 W |
| Efficiency | 89.00% |
