About the product

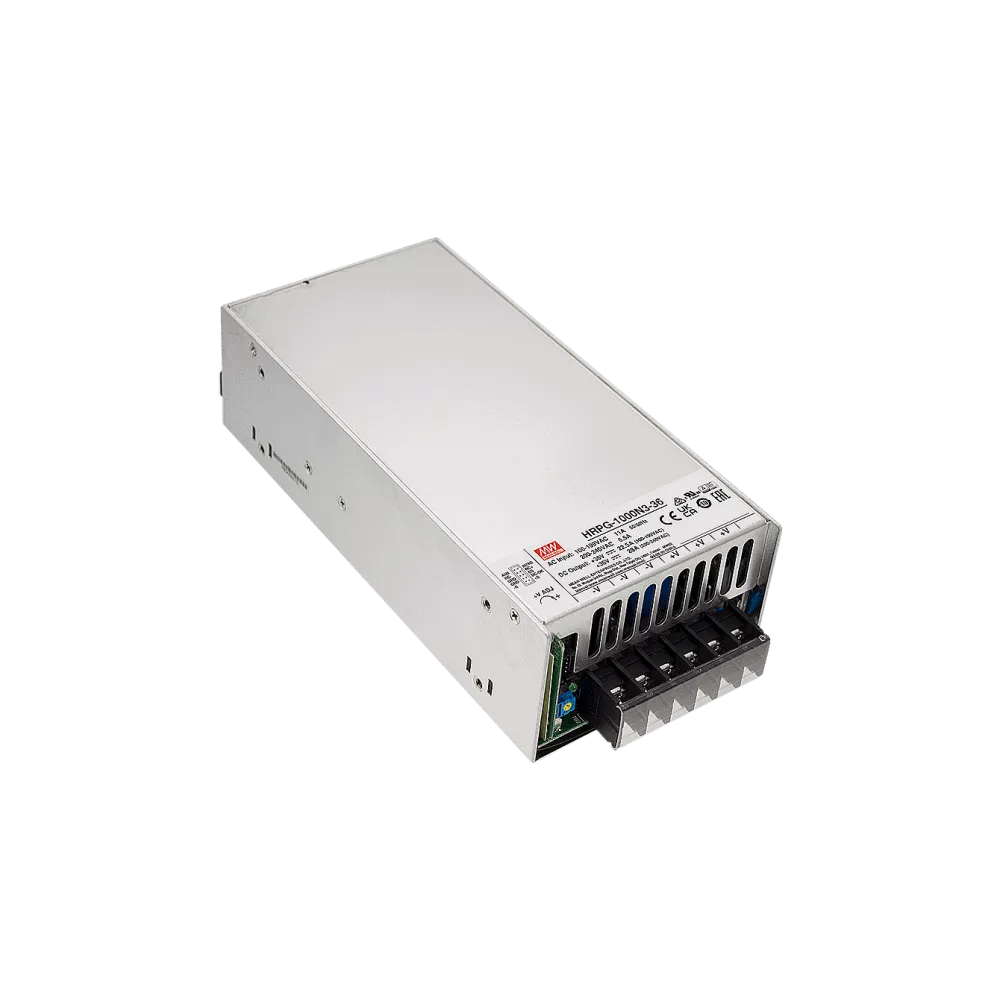

HRPG-1000N3-12 is a 1000W power supply in a housing for industrial applications. The power supply delivers up to 2880W of power for a short time and thus facilitates the start-up of critical loads with high starting currents, such as motors.
Technical data
- Universal AC input 90 to 264Vac
- Up to 320% Peak Power Capability
- Built-in Remote On/Off function
- Standby 5V@0.3A
- Built-in Remote Sense function
- No load power consumption <0.75W
- Current sharing up to 4000W (3+1)
- Built-in cooling fan On-Off control
- Working temperature range -40°C to +70°C
- Withstand 300Vac surge input for 5 sec.
- Dimension 218 x 105 x 61.5mm (L x W x H)
- 5 Years Warranty
- Manufacturer MEAN WELL
Product specifications
| Output voltage (VDC) | 12 V |
| Manufacturer warranty | 5 years |
| Manufacturer | MEAN WELL |
| Control signals | Remote ON/OFF, Remote sense |
| Status signals | DC OK signal |
| Additional functions | 5V DC auxiliary output, Parallel connectable, Peak Power |
| Application | ITE/AV |
| Voltage setting range | 11.0-14.0 VDC |
| Height | 61.5 mm |
| Width | 105 mm |
| Length | 218 mm |
| Protection class | Class I |
| Input voltage range (VAC) | 90-264 V |
| Power | 960 W |
| Efficiency | 91.00% |
