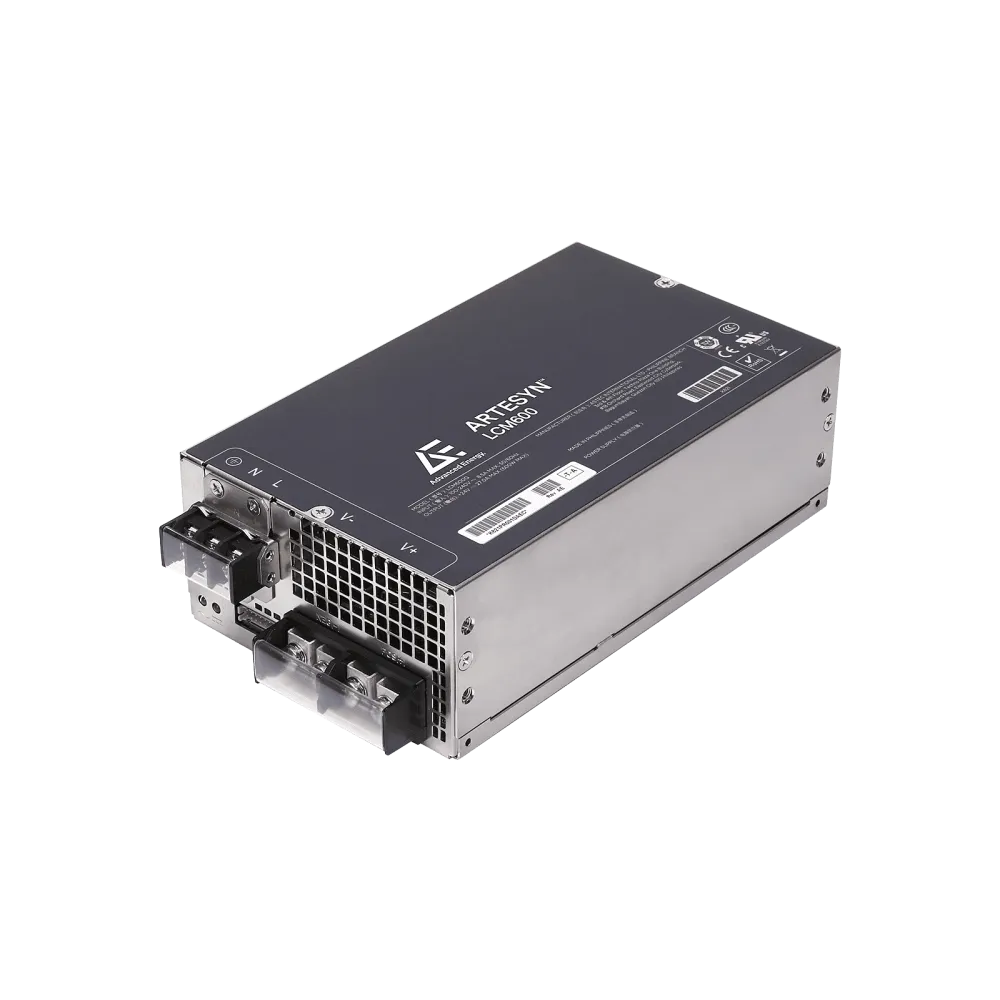

660W medical Power Supply 15Vdc/44A

Delivery at your place between May 21 and Jun 25 2025

Add to cart

About the product

Advanced Energy’s Artesyn LCM-Family 300/600/1000/1500/3000Watt provide for a very wide range of AC/DC embedded power requirement. Offering no Power Derating over the entire Input range 85…264Vac, nominal outputs of 12V, 15V, 24V, 36V or 48Vdc (LCM3000: additionally 18Vdc and 72Vdc) and adjustable voltage of wide ranges from 10.8…52.8Vdc .

Technical data

600Watt output power
Dimensions 190.5 x 114.3 x 60.96mm
Industrial/Medical safety
No low line derating
Operating Temperature -40°C…+70°C with derating
Option 5Vdc @2A standby
Efficiency 89%
Variable speed "Smart Fans"
DSP controlled front end
Option Conformal coating
+/-20% output adjustment range
Margin programming
ORing FET
Option Terminal block input
Warranty 3 Years
Manufacturer Artesyn

Product specifications

Output voltage (VDC)	15 V
Manufacturer warranty	3 years
Manufacturer	Artesyn
Control signals	Remote ON/OFF, Remote sense
Status signals	AC OK signal, DC OK signal
Additional functions	Parallel connectable
Application	ITE/AV, Medical
Voltage setting range	12.0-19.5 VDC
Height	60.96 mm
Width	114.3 mm
Length	190.5 mm
Protection class	Class I
Input voltage range (VAC)	85-264 V
Power	660 W
Efficiency	89.00%
