About the product

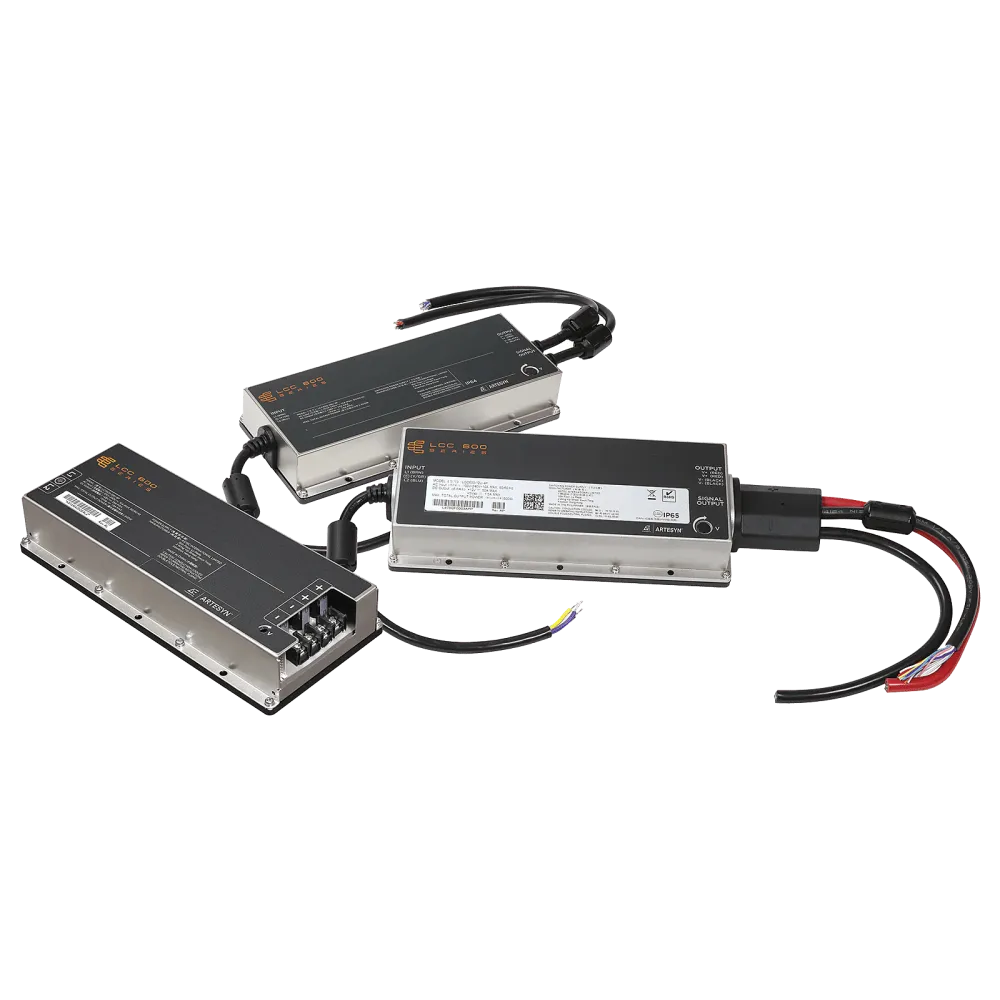

Advanced Energy’s Artesyn LCC600 series of fully enclosed conduction cooled AC/DC power supplies comprises 4 models, offering main output voltages of 12V, 28V, 36V or 48Vdc. Each model also provides a 5Vdc standby output which can supply up to 1.5A. Rated at 600Watt, these Power Supplies incorporate a thermal baseplate and are capable of delivering full output power over a wide operating temperature range of -40°…+85°C. For maximum applications flexibility, the main output is adjustable. The 48Vdc model for example, can be adjusted from 44V…54Vdc and has a maximum current rating of 12.5A.
Technical data
- 600Watt full power at elevated temperatures
- Wide operating temperature range -40°C…+85°C with baseplate
- Output Adjustable
- Remote On/Off
- AC OK and DC OK signals
- 5Vdc standby
- Active current share
- Conduction cooled/fanless
- I2C / PMBus
- Medical and ITE Safety Ed.3
- Suited for BF Applications
- Active power factor correction
- Option IP65
- Option Input 277Vac
- Warranty 2 Years
- Manufacturer Artesyn
Product specifications
| Output voltage (VDC) | 12 V |
| Manufacturer warranty | 2 years |
| Manufacturer | Artesyn |
| Control signals | Remote ON/OFF, Remote sense |
| Status signals | AC OK signal, DC OK signal |
| Additional functions | 5V DC auxiliary output, Parallel connectable, PMBus |
| Application | ITE/AV, Medical |
| Voltage setting range | 12.0-15.0 VDC |
| Height | 39.8 mm |
| Width | 101 mm |
| Length | 228 mm |
| Protection class | Class I |
| Input voltage range (VAC) | 90-264 V |
| Power | 600 W |
| Efficiency | 92.00% |
