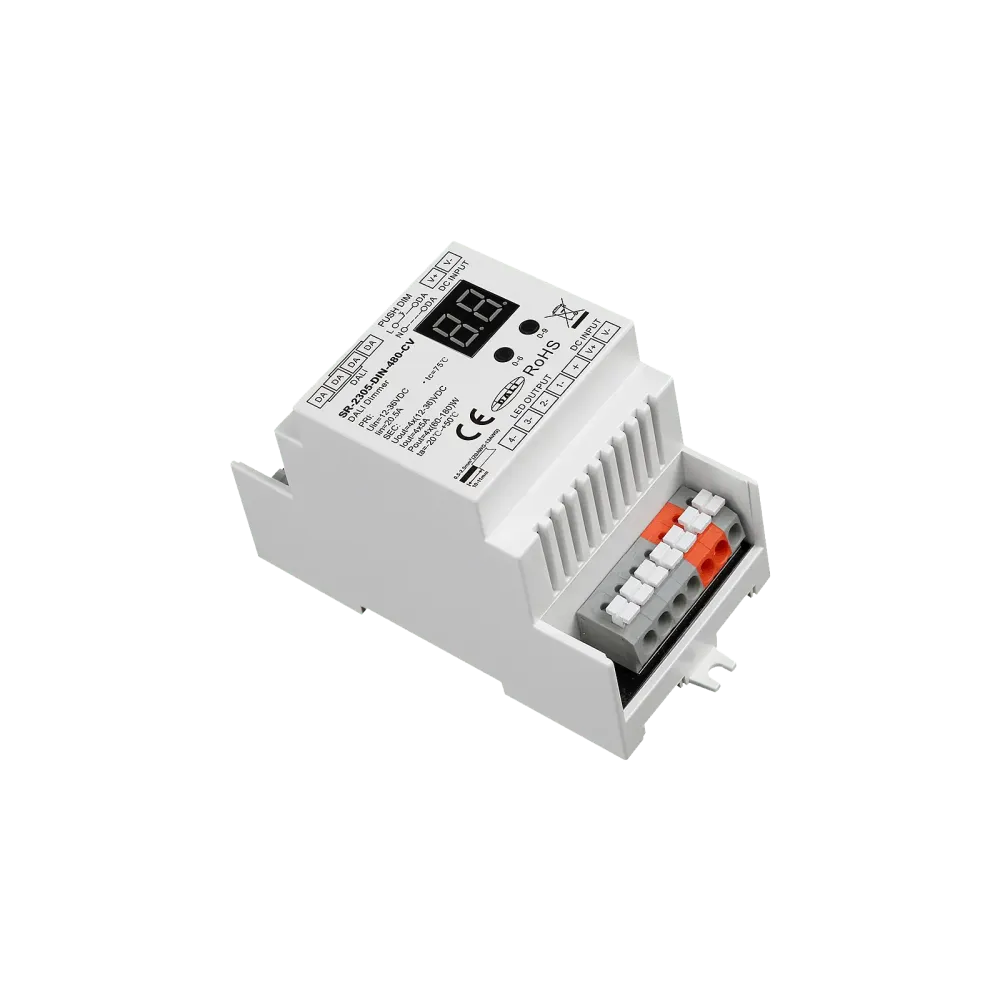

About the product
- Built-in DALI-2 interface, DALI DT6 device
- 12-36VDC, 4x 5A, max. 480W
- Suitable for all DALI systems on the market
- Manual/automatic DALI address setting
- Display DALI address digitally
- Push dimmer / DALI dimmer optional
- For channels, addresses from one to four can be set
- Works with power repeater to extend the output power
- Protection class IP20
- 5 year guarantee
Product specifications
| Manufacturer | Sunricher |
| Input voltage range (VDC) | 42-60 V |
| Connection | Spring clamp |
| Manufacturer's warranty | 5 years |
| IP protection | IP20 |
| Height | 65 mm |
| Product series | SR-2305 |
| Output voltage range (VDC) | 12-36 V |
| Output current per channel (A) | 5 |
| Channels | 4 |
| Control | DALI, AC Push Dimming |
| Length | 110 mm |
| Power | 480 W |
| Width | 53 mm |
| Application | RGBW, Single Color, Tunable White |
