About the product
- BUS+FADER+DIMMER+DRIVER
- DC input 12-48 Vdc
- BUS command:
. - DMX - MULTI INPUT - Analog Automatic detection of the local command:
. - Normally open push button
. - 0-10V
. - 1-10V
. - Potentiometer 10KOhm - PUSH MENU' - option for setting:
. - Minimum dimming value
. - Fade in
. - Fade out - Constant voltage variant for common anode applications

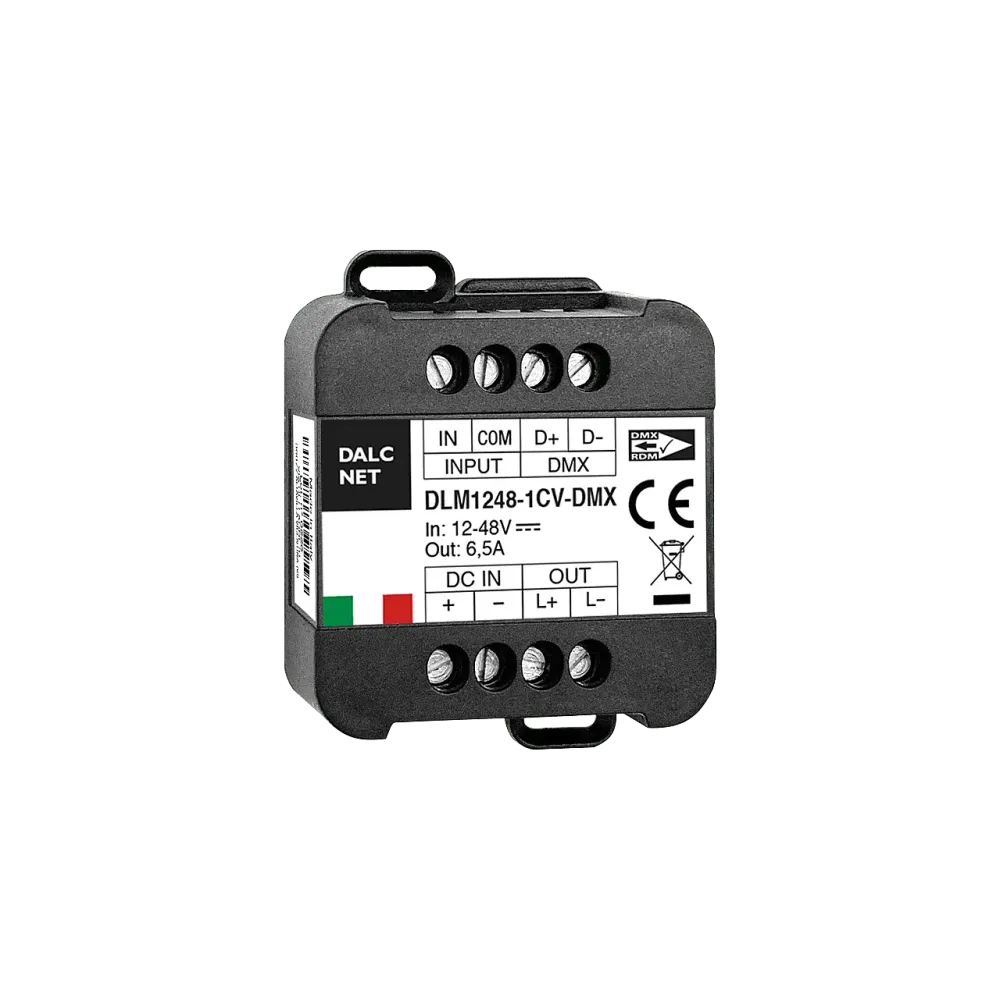

- Voltage outputs for R-L-C loads DLM1248-1CV-DMX
- Memory function
- Adjusting the brightness of white light or monochromatic colors
- Adjusting the brightness up to complete switch-off
- Soft start and soft stop
- Optimized output curve
- Typical efficiency > 95%
- 100% function test
- 5 year guarantee
Product specifications
| Application | Single color |
| Control | Low voltage push, DMX, 0-10V, 1-10V, resistor |
| Input voltage range (VDC) | 12-24 V |
| Manufacturer's warranty | 5 years |
| IP protection | IP20 |
| Output current per channel (A) | 45783 |
| Length | 44 mm |
| Height | 19 mm |
| Output voltage range (VDC) | 12-48 V |
| Manufacturer | DalcNet |
| Power | 312 W |
| Width | 57 mm |
| Connection | Screw terminal |
| Channels | 1 |
| Product series | DLM |
